Page 38 - Stainless_Steel_Sanitary_Ware

/ Wash troughs

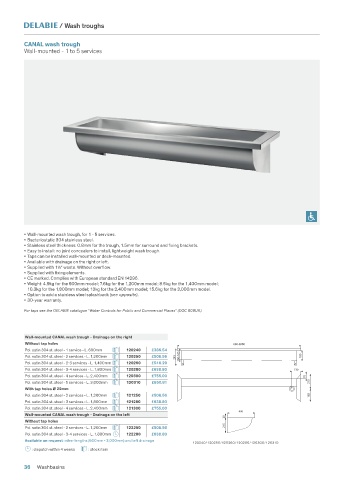

CANAL wash trough
Wall-mounted - 1 to 5 services

• Wall-mounted wash trough, for 1 - 5 services.
• Bacteriostatic 304 stainless steel.
• Stainless steel thickness: 0.8mm for the trough, 1.5mm for surround and fixing brackets.
• Easy to install: no joint concealers to install, lightweight wash trough.
• Taps can be installed wall-mounted or deck-mounted.
• Available with drainage on the right or left.
• Supplied with 1½" waste. Without overflow.
• Supplied with fixing elements.
• CE marked. Complies with European standard EN 14296.
• Weight: 4.9kg for the 600mm model; 7.6kg for the 1,200mm model; 8.5kg for the 1,400mm model;
10.3kg for the 1,800mm model; 13kg for the 2,400mm model; 15.6kg for the 3,000mm model.
• Option to add a stainless steel splashback (see opposite).
• 30-year warranty.
For taps see the DELABIE catalogue "Water Controls for Public and Commercial Places" (DOC 609UK).

Wall-mounted CANAL wash trough - Drainage on the right
Without tap holes 600-3000
Pol. satin 304 st. steel - 1 service - L. 600mm 120240 £386.54 30
Pol. satin 304 st. steel - 2 services - L. 1,200mm 120250 £508.56 245 160-165 180 215
Pol. satin 304 st. steel - 2-3 services - L. 1,400mm 120260 £546.29
Pol. satin 304 st. steel - 3-4 services - L. 1,800mm 120280 £638.80 130
Pol. satin 304 st. steel - 4 services - L. 2,400mm 120300 £755.00 70
Pol. satin 304 st. steel - 5 services - L. 3,000mm 120310 £850.81 215
With tap holes Ø 22mm
Pol. satin 304 st. steel - 2 services - L. 1,200mm 121250 £508.56 185
Pol. satin 304 st. steel - 3 services - L. 1,800mm 121280 £638.80
Pol. satin 304 st. steel - 4 services - L. 2,400mm 121300 £755.00
400
Wall-mounted CANAL wash trough - Drainage on the left
30
Without tap holes
Pol. satin 304 st. steel - 2 services - L. 1,200mm 122250 £508.56 215
Pol. satin 304 st. steel - 3-4 services - L. 1,800mm 122280 £638.80
Available on request: other lengths (600mm - 3,000mm) and left drainage
120240/120250/120260/120280/120300/120310
: dispatch within 4 weeks : stock item

36 Washbasins
