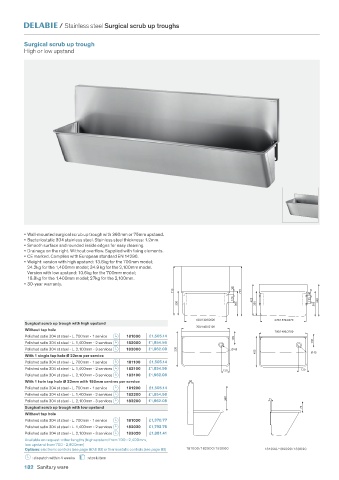

Page 184 - Water_Controls_for_Healthcare

/ Stainless steel Surgical scrub up troughs

Surgical scrub up trough
High or low upstand

• Wall-mounted surgical scrub up trough with 360mm or 75mm upstand.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
• Smooth surface and rounded inside edges for easy cleaning.
• Drainage on the right. Without overflow. Supplied with fixing elements.
• CE marked. Complies with European standard EN 14296.
• Weight: version with high upstand: 13.8kg for the 700mm model;
24.2kg for the 1,400mm model; 34.9 kg for the 2,100mm model.
Version with low upstand: 10.6kg for the 700mm model;
18.8kg for the 1,400mm model; 27kg for the 2,100mm.
• 30-year warranty.
50
710 725 40
120 425 135 440
350 365 350 365

620/1320/2020 670/1370/2070
Surgical scrub up trough with high upstand
700/1400/2100
Without tap hole 700/1400/2100
Polished satin 304 st steel - L. 700mm - 1 service 181000 £1,505.14 195
Polished satin 304 st steel - L. 1,400mm - 2 services 182000 £1,854.56 130
Polished satin 304 st steel - L. 2,100mm - 3 services 183000 £1,962.08 520 Ø 45 455
With 1 single tap hole Ø 22mm per service Ø 45
Polished satin 304 st steel - L. 700mm - 1 service 181100 £1,505.14
Polished satin 304 st steel - L. 1,400mm - 2 services 182100 £1,854.56 120 120
Polished satin 304 st steel - L. 2,100mm - 3 services 183100 £1,962.08
With 1 twin tap hole Ø 22mm with 150mm centres per service 80
Polished satin 304 st steel - L. 700mm - 1 service 181200 £1,505.14
Polished satin 304 st steel - L. 1,400mm - 2 services 182200 £1,854.56
Polished satin 304 st steel - L. 2,100mm - 3 services 183200 £1,962.08 360 15
Surgical scrub up trough with low upstand 75
Without tap hole
Polished satin 304 st steel - L. 700mm - 1 service 181020 £1,370.77
Polished satin 304 st steel - L. 1,400mm - 2 services 182020 £1,792.76
Polished satin 304 st steel - L. 2,100mm - 3 services 183020 £1,881.41
Available on request: other lengths (high upstand from 700 - 2,400mm,
low upstand from 700 - 2,800mm)
Options: electronic controls (see page 80 & 83) or thermostatic controls (see page 85) 181000/182000/183000 181020/182020/183020
: dispatch within 4 weeks : stock item
