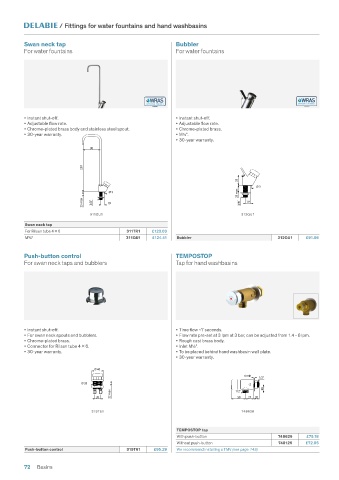

Page 74 - Water_Controls_for_Public-Commercial

/ Fittings for water fountains and hand washbasins

Swan neck tap Bubbler
For water fountains For water fountains

• Instant shut-off. • Instant shut-off.
• Adjustable flow rate. • Adjustable flow rate.
• Chrome-plated brass body and stainless steel spout. • Chrome-plated brass.
• 30-year warranty. • M⅜".
• 30-year warranty.
90

250

35
Ø 3
25 max
Ø 3
25 max 3/8" 19 3/8" 19

311QU1 312QU1
Swan neck tap
For Rilsan tube 4 6 311TR1 £123.03
M⅜" 311QU1 £124.41 Bubbler 312QU1 £91.06

Push-button control TEMPOSTOP
For swan neck taps and bubblers Tap for hand washbasins

• Instant shut-off. • Time flow ~7 seconds.
• For swan neck spouts and bubblers. • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Chrome-plated brass. • Rough cast brass body.
• Connector for Rilsan tube 4 6. • Inlet M½".
• 30-year warranty. • To be placed behind hand washbasin wall plate.
• 30-year warranty.

Ø 40
4 min
1/2"
Ø 33
28
22 max
1/2"
20 50 27 20
319T61 748626

TEMPOSTOP tap
With push-button 748626 £75.18
Without push-button 748126 £72.05
Push-button control 319T61 £95.29 We recommend installing a TMV (see page 143)
