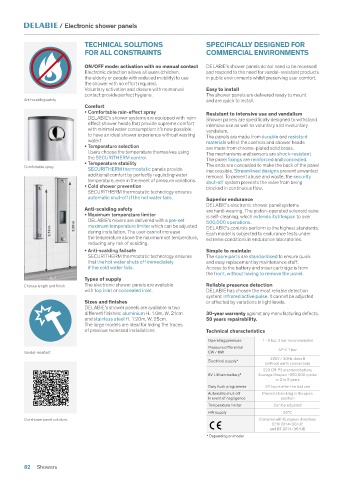

Page 84 - Water_Controls_for_Public-Commercial

/ Electronic shower panels

TECHNICAL SOLUTIONS SPECIFICALLY DESIGNED FOR
FOR ALL CONSTRAINTS COMMERCIAL ENVIRONMENTS

ON/OFF mode: activation with no manual contact DELABIE's shower panels do not need to be recessed
Electronic detection allows all users (children, and respond to the need for vandal-resistant products
the elderly or people with reduced mobility) to use in public environments whilst preserving user comfort.
the shower with no effort required.
Voluntary activation and closure with no manual Easy to install
contact provide perfect hygiene. The shower panels are delivered ready to mount
Anti-scalding safety and are quick to install.
Comfort
• Comfortable rain-effect spray Resistant to intensive use and vandalism
DELABIE's shower systems are equipped with rain- Shower panels are specifically designed to withstand
effect shower heads that provide supreme comfort intensive use as well as voluntary and involuntary
with minimal water consumption: it's now possible vandalism.
to have an ideal shower experience without wasting The panels are made from durable and resistant
water! materials whilst the controls and shower heads
• Temperature selection are made from chrome-plated solid brass.
Users choose the temperature themselves using The mechanisms and sensors are shock-resistant.
the SECURITHERM control. The panel fixings are reinforced and concealed.
• Temperature stability
Comfortable spray The ends are concealed to make the back of the panel
SECURITHERM thermostatic panels provide inaccessible. Streamlined designs prevent unwanted
additional comfort by perfectly regulating water removal. To prevent abuse and waste, the security
temperature, even in the event of pressure variations. shut-off system prevents the valve from being
• Cold shower prevention blocked in continuous flow.
SECURITHERM thermostatic technology ensures
automatic shut-off if the hot water fails.
Superior endurance
DELABIE’s electronic shower panel systems
Anti-scalding safety are hard-wearing. The piston-operated solenoid valve
• Maximum temperature limiter is self-cleaning, which extends its lifespanextends its lifespan to over

DELABIE’s mixers are delivered with a pre-set 500,000 operations.
2,10 m 2,20 m maximum temperature limiter which can be adjusted DELABIE’s controls perform to the highest standards.
during installation. The user cannot increase
Each model is subjected to endurance tests under
the temperature above the maximum set temperature, extreme conditions in endurance laboratories.
reducing any risk of scalding.
• Anti-scalding failsafe Simple to maintain
SECURITHERM thermostatic technology ensures The spare parts are standardised to ensure quick
that the hot water shuts off immediately and easy replacement by maintenance staff.
if the cold water fails. Access to the battery and mixer cartridge is from
the front, without having to remove the panel.
Types of supply
Choose length and finish The electronic shower panels are available Reliable presence detection
with top inlet or concealed inlet. DELABIE has chosen the most reliable detection
system: infrared active pulse. It cannot be adjusted
Sizes and finishes or affected by variations in light levels.
DELABIE's shower panels are available in two
different finishes: aluminium H. 1.0m, W. 21cm 30-year warranty against any manufacturing defects.
and stainless steel H. 1.20m, W. 25cm. 50 years repairability.
The large models are ideal for hiding the traces
of previous recessed installations. Technical characteristics
Operating pressure 1 - 5 bar, 3 bar recommended
Pressure differential ∆P < 1 bar
Vandal-resistant CW / HW
230V / 50Hz class II
Electrical supply*
(without earth connection)
223 CR P2 standard battery
6V Lithium battery* Average lifespan ~350,000 cycles
or 3 to 6 years
Duty flush programme 24 hours after the last use
Automatic shut-off Prevents blocking in the open
in event of negligence position
Temperature limiter Can be adjusted
HW supply 55°C
Our shower panel solutions Complies with European directives
CEM 2014/30/UE
and BT 2014/35/UE
* Depending on model

82 Showers
