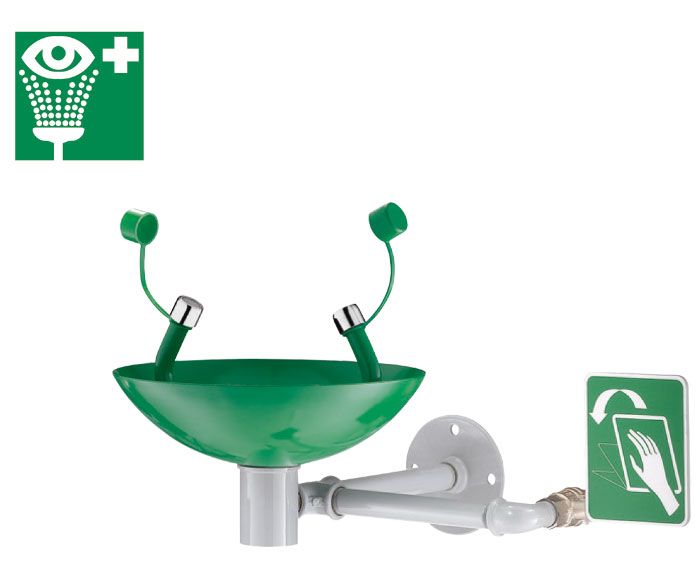

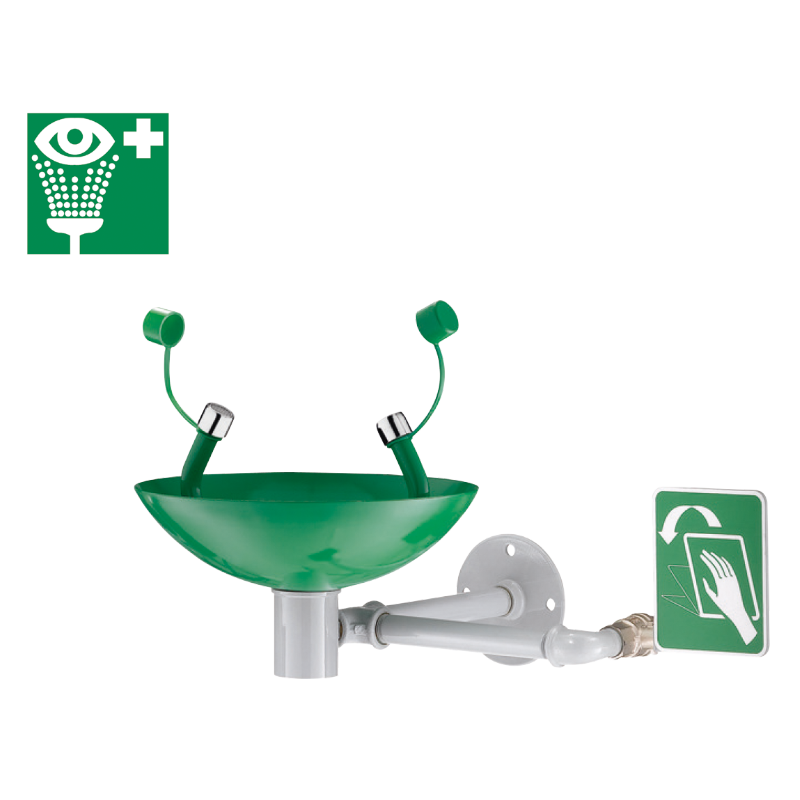

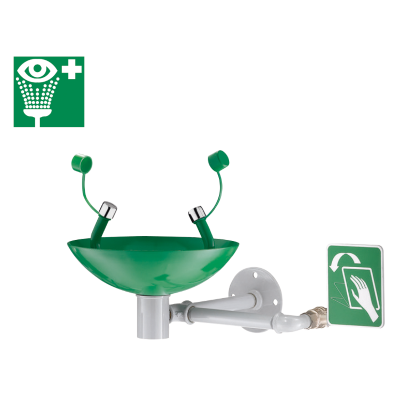

Wall-mounted eye wash station

Ref. 9102
With manual control
Wall-mounted eye wash station

Presentation

DESCRIPTION

Wall-mounted eye wash station

Ref. 9102
Wall-mounted eye wash station with manual control equipped with:
304 stainless steel basin Ø 250mm, green powder-coated finish.
Two spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valve opens and closes quickly.
30-year warranty.

Operation:
Water flow is activated by the hand control. The eye wash will continue to operate when the hand control is released. To stop the flow, pull the hand control in the opposite direction.
Flow rate 20 lpm at 3 bar dynamic pressure.
Aerators with stainless steel double filters.
Water supply M1/2".
Pipework made from galvanised steel, grey powder-coated finish.
Hand control made from galvanised steel, green powder-coated finish.
Wall-mounted on a brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

2024 UK public price excluding VAT: £456.58

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Gentle spray, quick and easy to activate

Maintenance aisée - Installation aisée

Maintenance without removing the equipment

Confort - Ergonomie - Déclenchement souple

Rapid flow rates for decontamination

Characteristics

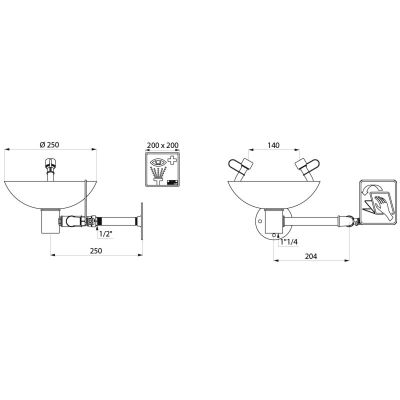

TECHNICAL CHARACTERISTICS

Wall-mounted eye wash station

Ref. 9102
Supply M1/2"
Height 195mm
Flow rate 20 lpm at 3 bar dynamic pressure
Width to the wall 250mm
Finish Epoxy
Certificates Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Lave-yeux de sécurité mural

Ref. 9102

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

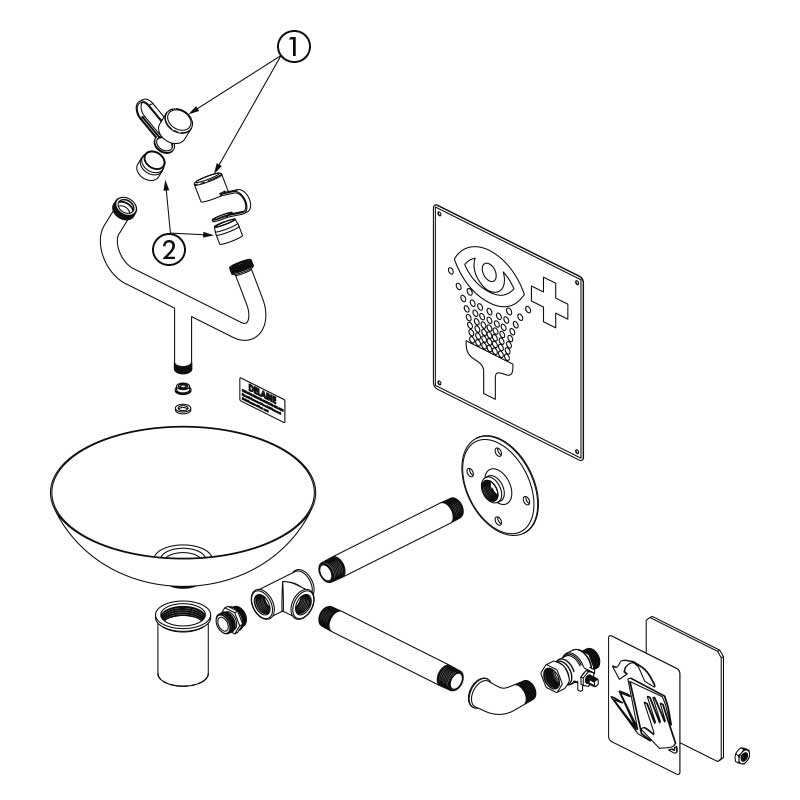

SPARE PARTS

Wall-mounted eye wash station

Ref. 9102
1. 91AA75
Protective caps
2. A22LY75
Aerator F22/100 for eye wash stations
3. V669AH75
Nameplate for safety eye wash

VARIANTS

9201 Column-mounted eye wash - F1" water inlet £739.71 excl. VAT

VARIANTS

9201 Column-mounted eye wash - F1" water inlet £739.71 excl. VAT
