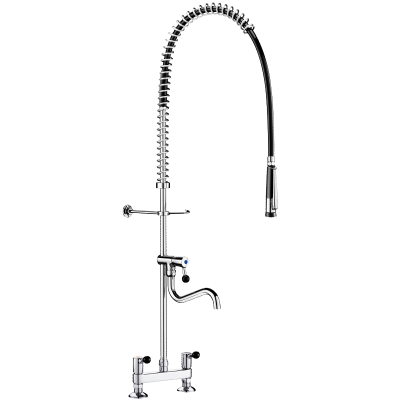

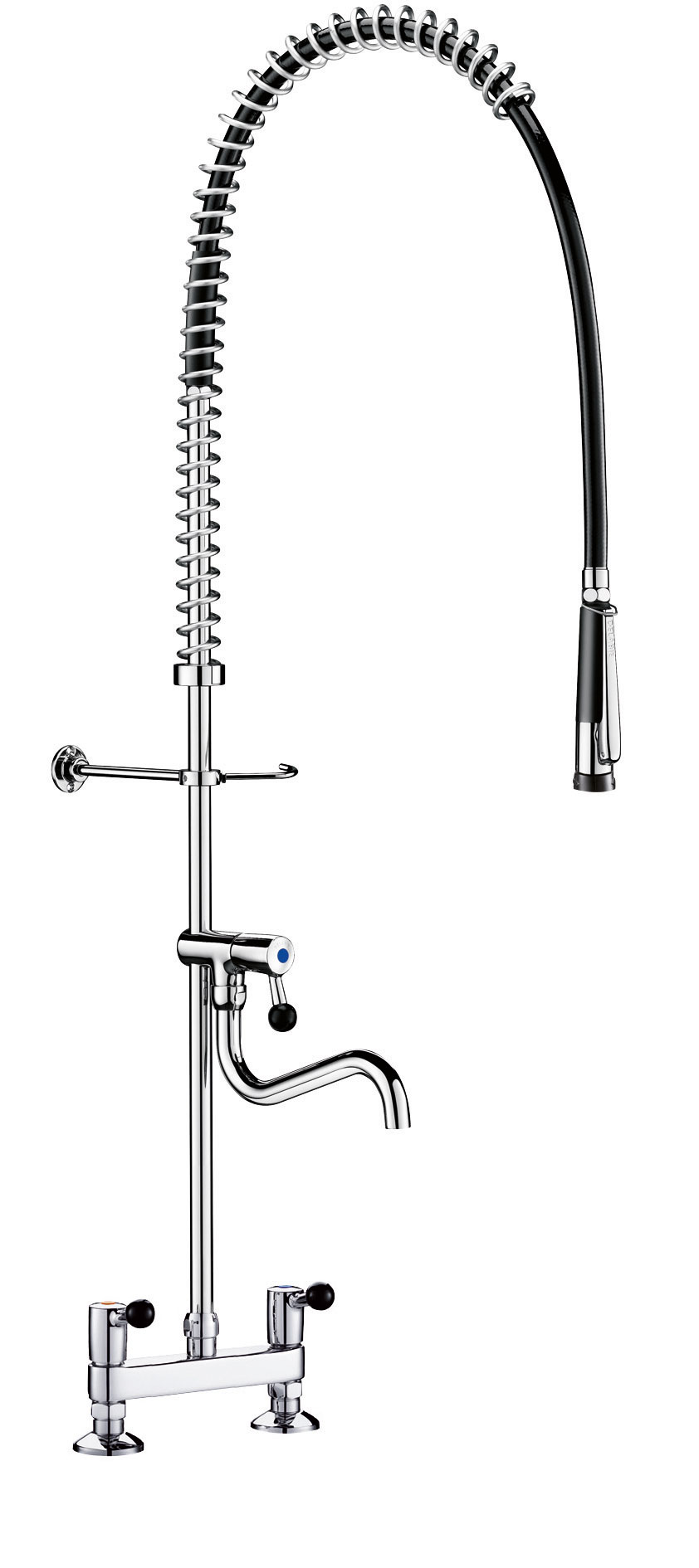

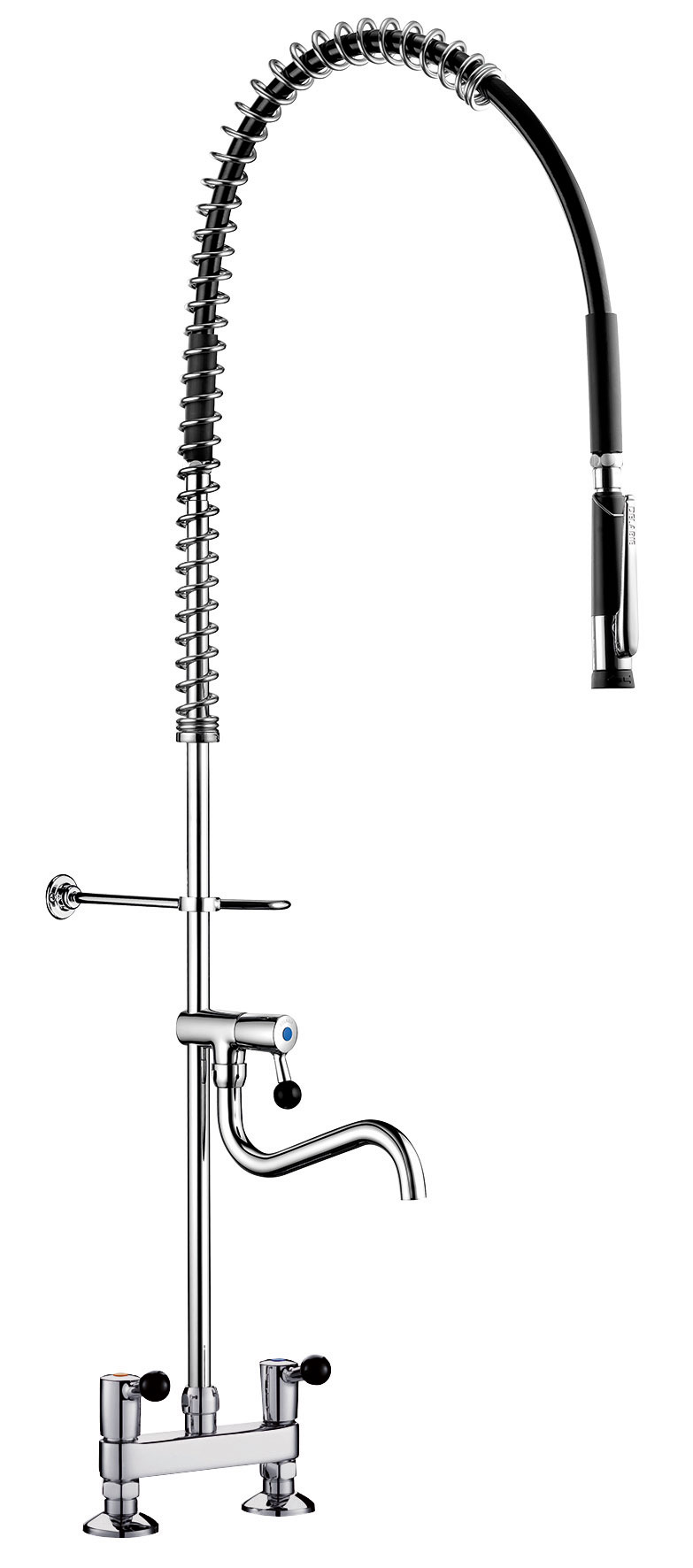

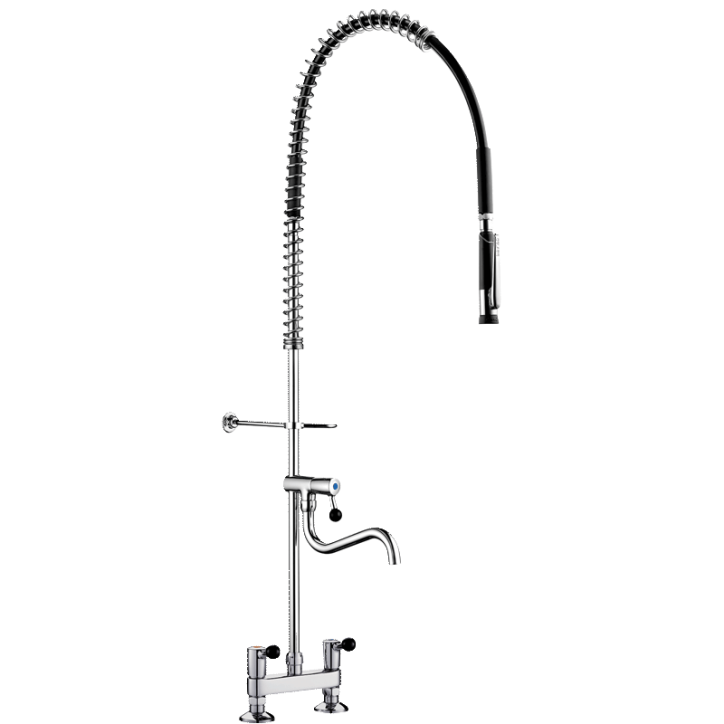

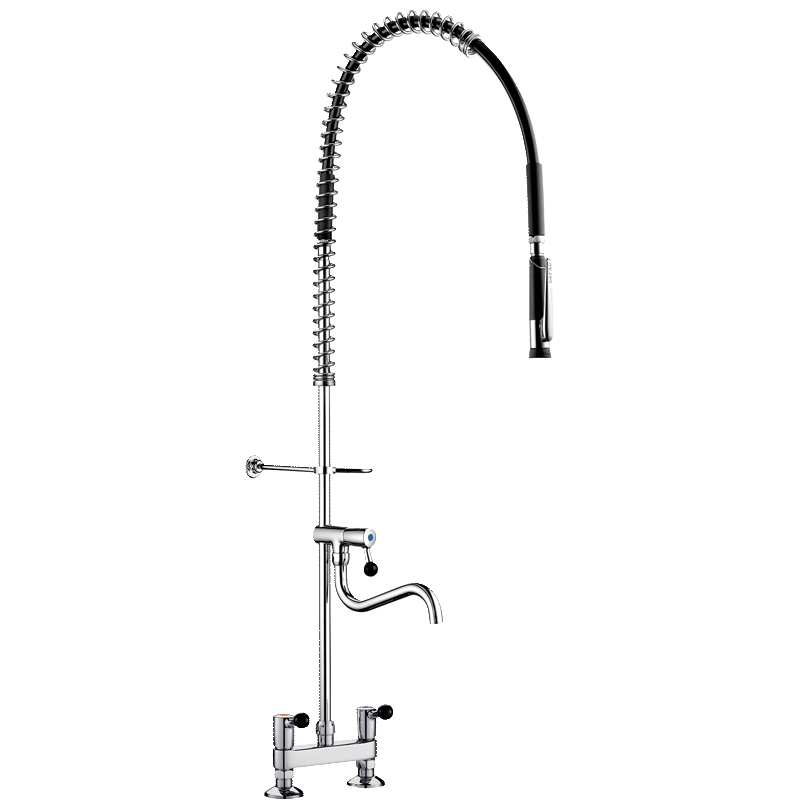

Twin hole pre-rinse set with mixer

Ref. 5633UK
With bib tap
Twin hole pre-rinse set with mixer

Presentation

DESCRIPTION

Twin hole pre-rinse set with mixer

Ref. 5633UK
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse models can be installed close to the splashback.

2024 UK public price excluding VAT: £990.99

ADVANTAGES

Endurance - Fiabilité

Shockproof control levers for intensive use

Anti-vandalisme

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Ergonomic controls and swivelling, tubular spout

Remplissage rapide

25 lpm full flow rate achieved within 90°

Characteristics

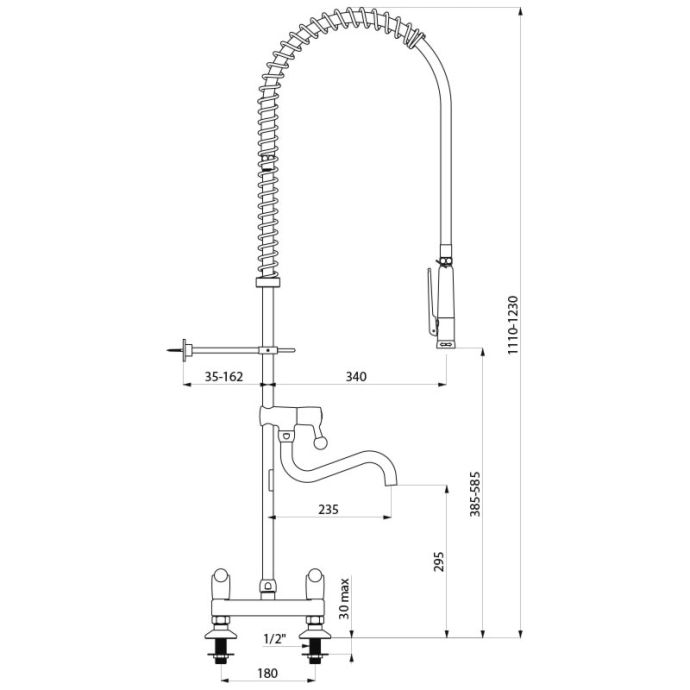

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. 5633UK
Connector M1/2"
Height 1110-1230mm
Drop height 345 - 585mm
Flow rate 25 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Warranty 30-Year
Repairability
Twin hole pre-rinse set with mixer
Ref. 5633UK

Downloads

DOWNLOADS

Combiné de prélavage 2 trous avec mélangeur

Ref. 5633UK

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

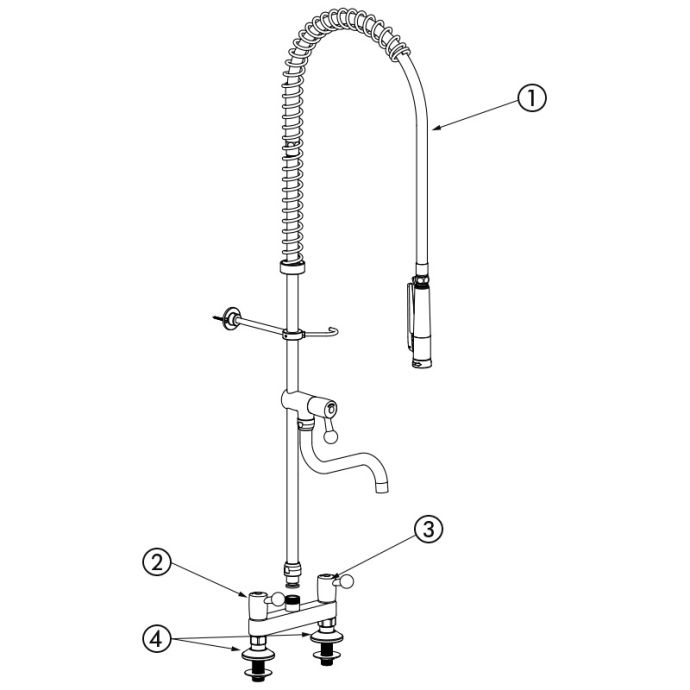

SPARE PARTS

Twin hole pre-rinse set with mixer

Ref. 5633UK
1. 433722
Black pre-rinse set with no valve
2. P271AA85
Valve head 1/4 left turn
3. P272AA85
Valve head 1/4 right turn

VARIANTS

5833 Hand spray scale-resistant nipples -Bib tap & tub. spout-150mm centres £1,022.84 excl. VAT
5880 Hand spray with scale-resistant nipples - No bib tap - 150mm centres £870.14 excl. VAT
5633 Hand spray with scale-resistant nozzle - Bib tap and tubular spout - 150mm centres £981.08 excl. VAT
5680 Hand spray with scale-resistant nozzle - Without bib tap - 150mm centres £827.98 excl. VAT
5680UK Hand spray with scale-resistant nozzle - Without bib tap - 180mm centres £833.00 excl. VAT
