Wall-mounted pre-rinse set with mixer

Ref. 5634
With bib tap
Wall-mounted pre-rinse set with mixer

Presentation

DESCRIPTION

Wall-mounted pre-rinse set with mixer

Ref. 5634
Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with adjustable centres with:
- valve heads with reinforced mechanisms with ergonomic control levers.
- M1/2" M3/4" offset connectors.
- non-return valves integrated in the mixer.
Bib tap with swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within 90°.
- valve head with reinforced mechanism with ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L.0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £847.50

ADVANTAGES

Remplissage rapide

Rapid fill: full flow within the first 90°

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic controls, swivelling spout

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: Hytrel flexible, scale-resistant spray

Characteristics

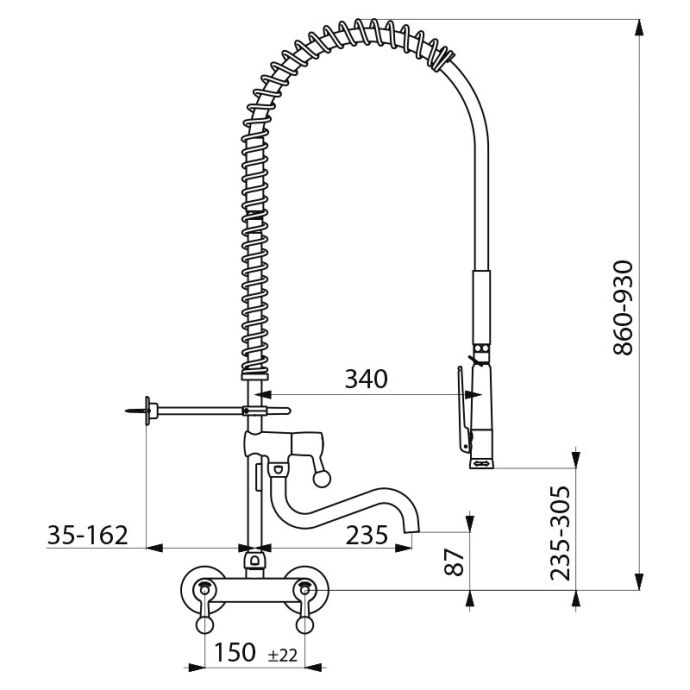

TECHNICAL CHARACTERISTICS

Wall-mounted pre-rinse set with mixer

Ref. 5634
Connector M1/2"
Height 860 - 930mm
Drop height 205 - 345mm
Flow rate 25 lpm bib tap; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage mural avec mélangeur

Ref. 5634

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

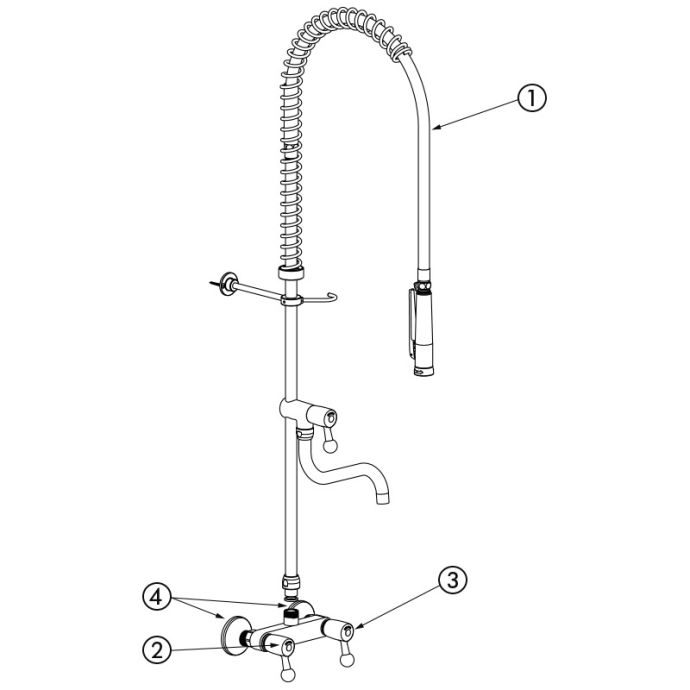

SPARE PARTS

Wall-mounted pre-rinse set with mixer

Ref. 5634
1. 433622
Black pre-rinse set with no valve
2. P271AA85
Valve head 1/4 left turn
3. P272AA85
Valve head 1/4 right turn
4. 856127.2P
Offset connector

VARIANTS

5834 Hand spray with scale-resistant nipples - With bib tap & tubular spout £889.75 excl. VAT
5836 Hand spray with scale-resistant nipples - Without bib tap £679.57 excl. VAT
5636 Hand spray with scale-resistant nozzle - Without bib tap £636.55 excl. VAT

VARIANTS

5834 Hand spray with scale-resistant nipples - With bib tap & tubular spout £889.75 excl. VAT
5836 Hand spray with scale-resistant nipples - Without bib tap £679.57 excl. VAT
5636 Hand spray with scale-resistant nozzle - Without bib tap £636.55 excl. VAT
