Wall-mounted pre-rinse set with mixer

Ref. 5636
Without bib tap
Wall-mounted pre-rinse set with mixer

Presentation

DESCRIPTION

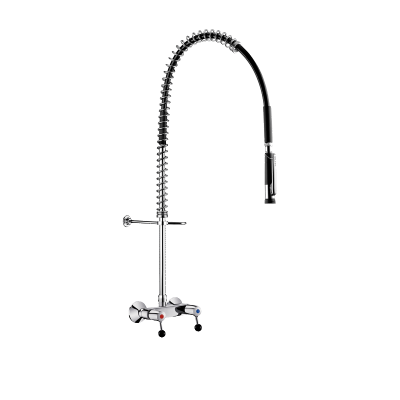

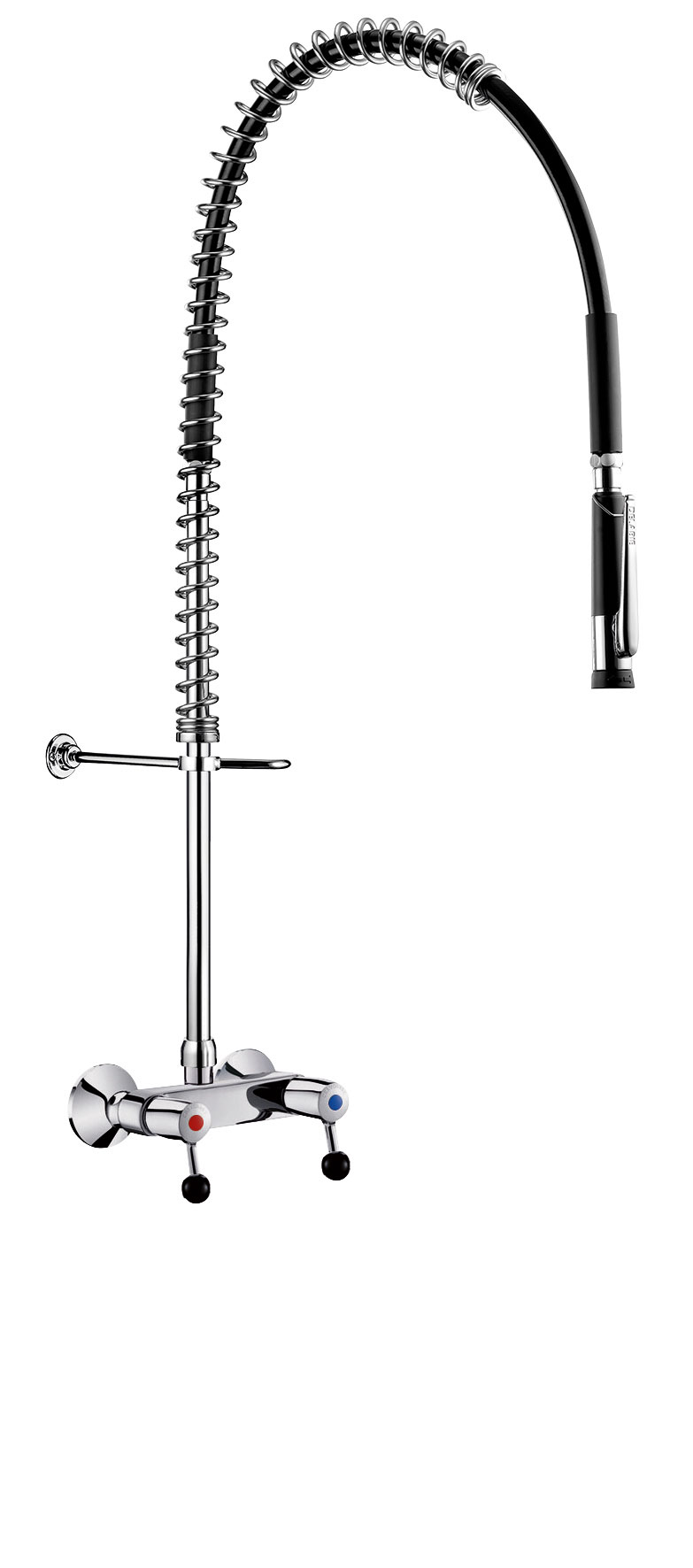

Wall-mounted pre-rinse set with mixer

Ref. 5636
Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with adjustable centres with:
- valve heads with reinforced mechanisms and ergonomic controls.
- M1/2" M3/4" offset connectors.
- non-return valves integrated in the mixer.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £636.55

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic controls

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

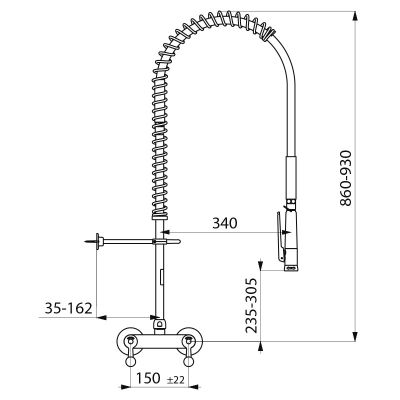

TECHNICAL CHARACTERISTICS

Wall-mounted pre-rinse set with mixer

Ref. 5636
Connector M1/2"
Height 860 - 930mm
Drop height 205 - 345mm
Flow rate 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage mural avec mélangeur

Ref. 5636

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Wall-mounted pre-rinse set with mixer

Ref. 5636
1. 433620
Black pre-rinse set with no valve
2. P271AA85
Valve head 1/4 left turn
3. P272AA85
Valve head 1/4 right turn
4. 856127.2P
Offset connector
