Deck-mounted single hole mixer - 45 lpm

Ref. 5640T2
Swivelling over spout L. 200mm H. 195mm
See variants See variants
Deck-mounted single hole mixer - 45 lpm

Presentation

DESCRIPTION

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T2

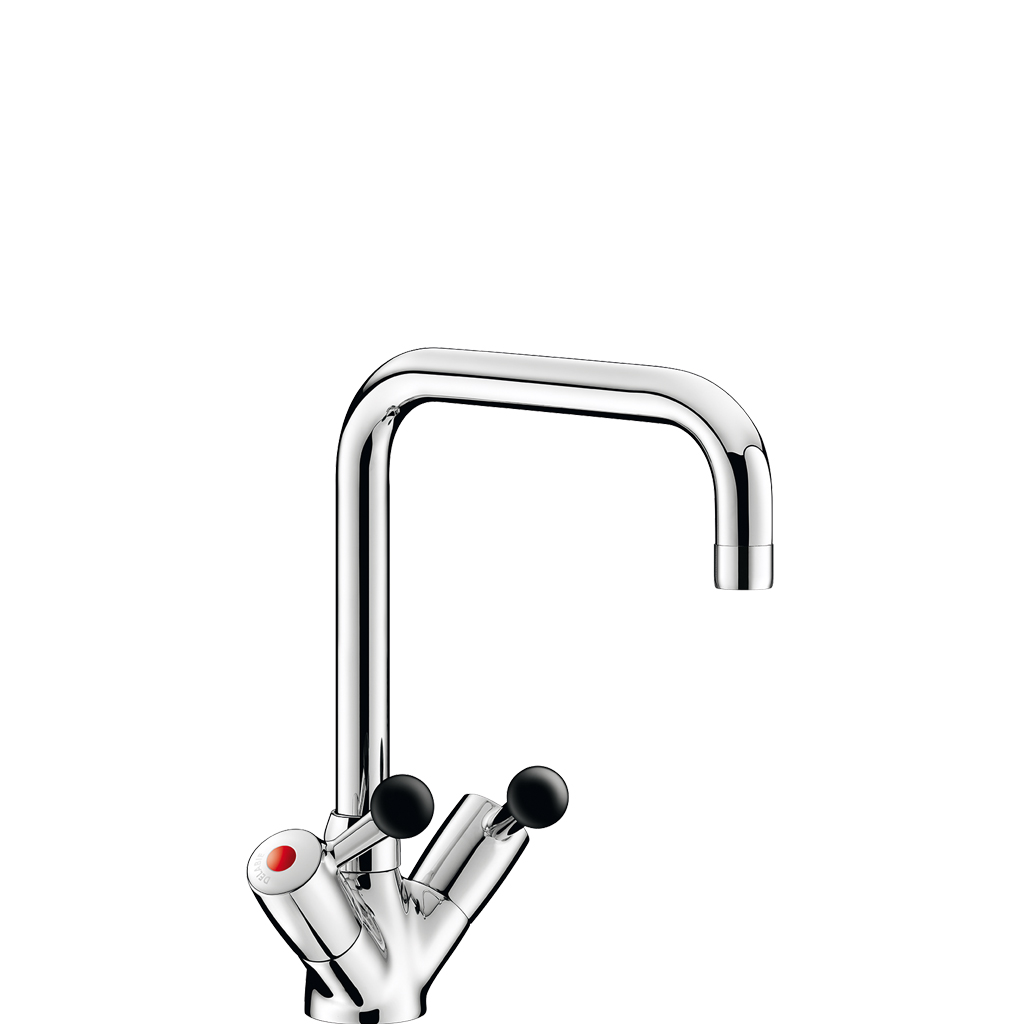

Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 195mm L. 200mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixing via two stainless steel rods.
F3/8" PEX flexibles.
30-year warranty.

2025 UK public price excluding VAT: £321.09

ADVANTAGES

Remplissage rapide

Rapid fill: flow rate 45 lpm

Endurance - Fiabilité

Shockproof control levers withstand intensive use

Anti-vandalisme

Chromed brass body and spout, reinforced fixings

Corps à intérieur lisse

Spout with smooth interior

Characteristics

TECHNICAL CHARACTERISTICS

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T2
Connector F3/8"
Height 270mm
Drop height 195mm
Spout length 200mm
Flow rate 45 lpm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Deck-mounted single hole mixer - 45 lpm
Ref. 5640T2

Downloads

DOWNLOADS

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T2

To download one or several documents linked to this product, please select the type of file you require :

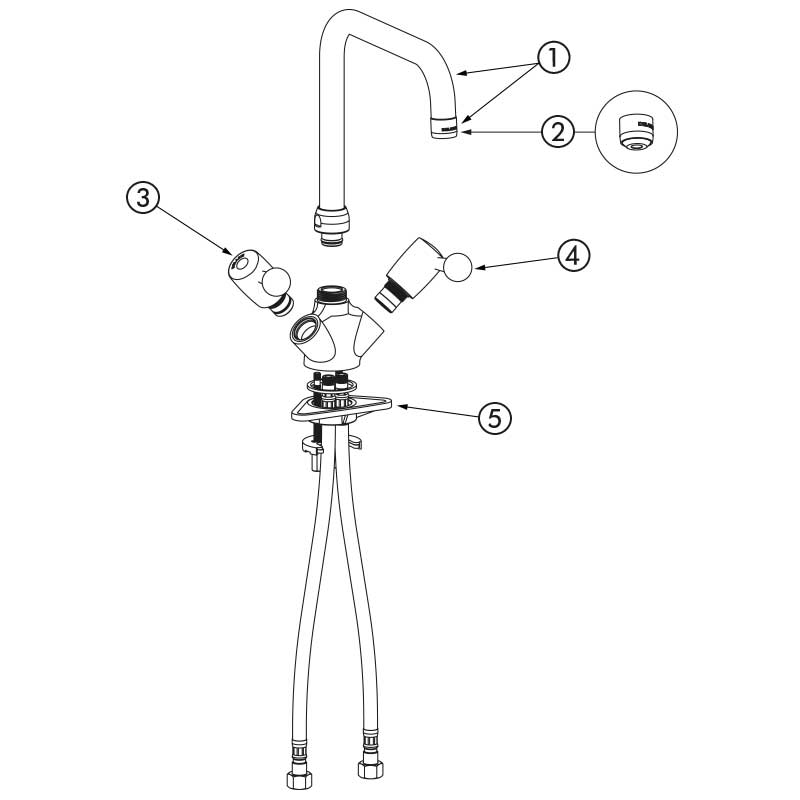

Spare parts

SPARE PARTS

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T2
1. 963200145F
Swivelling tubular spout
2. 921022.2P
Star-shaped flow straightener
3. P271AA85
Valve head 1/4 left turn
4. P272AA85
Valve head 1/4 right turn
5. 2510SES
Locking kit
6. 256P
Fixing plate
7. FLEX79508
F3/8" PEX flexible hoses

VARIANTS

5640T3 45 lpm single hole mixer - H.190 L.200 £337.99 excl. VAT
