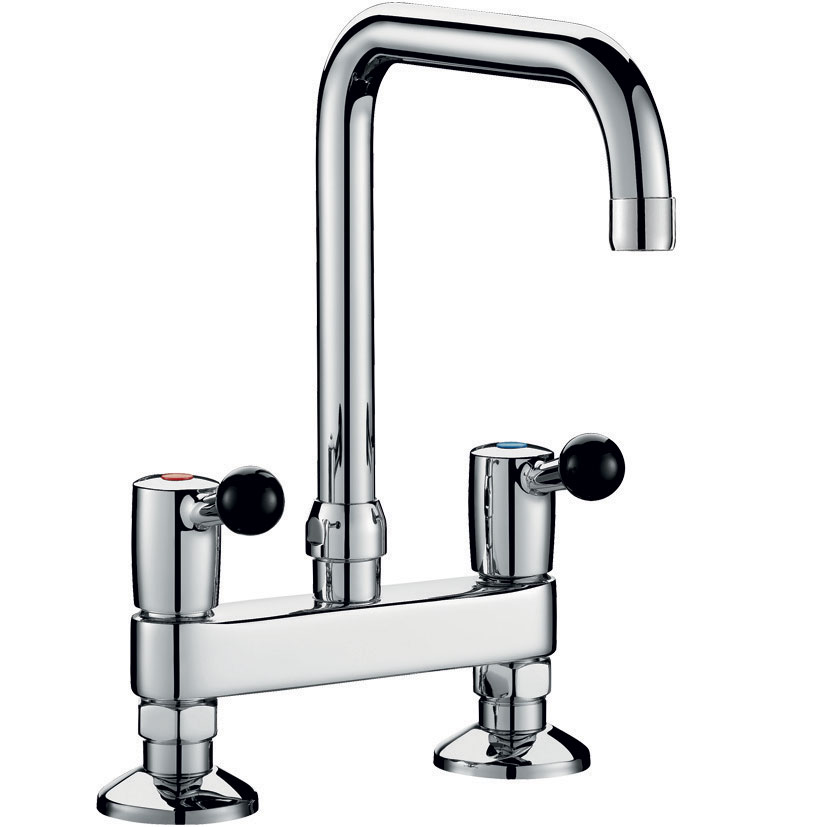

Deck-mounted twin hole mixer - 60 lpm

Ref. 5641T2
Swivelling over spout L. 200mm H.220mm
Deck-mounted twin hole mixer - 60 lpm

Presentation

DESCRIPTION

Deck-mounted twin hole mixer - 60 lpm

Ref. 5641T2
Deck-mounted twin hole mixer, M1/2" with 150mm centres.
Swivelling, tubular spout Ø 22mm H. 220mm L. 200mm with star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar within first 90°.
Full flow 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.

2024 UK public price excluding VAT: £419.26

ADVANTAGES

Remplissage rapide

Flow rate 60 lpm within first 90°

Anti-vandalisme

One-piece body and spout in chrome-plated brass

Faible espacement au mur - Encombrement limité

Can be installed close to splashback

Corps à intérieur lisse

Spout with smooth interior

Characteristics

TECHNICAL CHARACTERISTICS

Deck-mounted twin hole mixer - 60 lpm

Ref. 5641T2
Connector M1/2"
Height 300mm
Drop height 220mm
Spout length 200mm
Flow rate 60 lpm within 90°, 90 lpm full flow
Finish Chrome-plated brass
Certificates Logo PZH ACS Logo DoP
Warranty 30-Year
Repairability
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T2

Downloads

DOWNLOADS

Mélangeur 2 trous sur plage - 60 l/min

Ref. 5641T2

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Deck-mounted twin hole mixer - 60 lpm

Ref. 5641T2
1. 963200145F
Swivelling tubular spout
2. 921022.2P
Star-shaped flow straightener
3. P271AA85
Valve head 1/4 left turn
4. P272AA85
Valve head 1/4 right turn
5. 826115
Back-nut

VARIANTS

5641T2UK 60 lpm twin hole mixer - H.220 L.200 - 180mm centres £430.84 excl. VAT
5641T3 60 lpm twin hole mixer - H.220 L.300 - 150mm centres £433.22 excl. VAT
5641T3UK 60 lpm twin hole mixer - H.220 L.300 - 180mm centres £445.22 excl. VAT
