Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3
Swivelling over spout L. 300mm
Wall-mounted twin hole mixer - 60 lpm

Presentation

DESCRIPTION

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3
Wall-mounted twin hole mixer with swivelling, tubular over spout Ø 22mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.
30-year warranty.

2024 UK public price excluding VAT: £342.31

ADVANTAGES

Remplissage rapide

Flow rate 60 lpm within first 90°

Anti-vandalisme

One-piece body and spout in chrome-plated brass

Faible espacement au mur - Encombrement limité

Helps create clear work surfaces

Corps à intérieur lisse

Spout with smooth interior

Characteristics

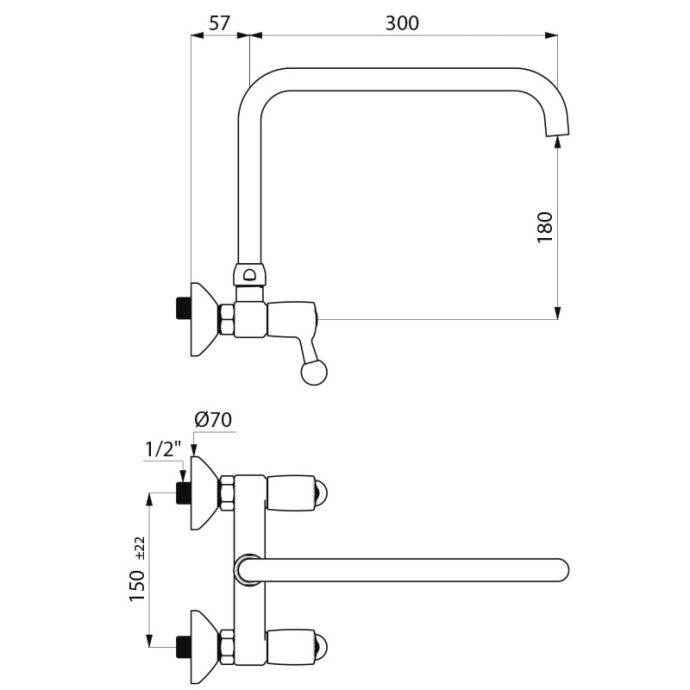

TECHNICAL CHARACTERISTICS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3
Connector M1/2"
Spout length 300mm
Flow rate 60 lpm
Width to the wall 57mm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Wall-mounted twin hole mixer - 60 lpm
Ref. 5647T3

Downloads

DOWNLOADS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

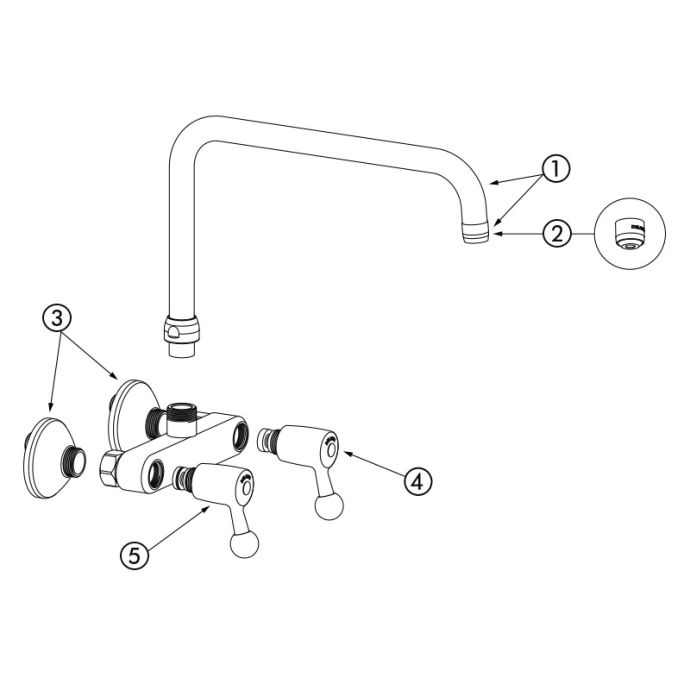

SPARE PARTS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3
1. 963300145F
Swivelling, tubular spout
2. 921022.2P
Star-shaped flow straightener
3. 856127.2P
Offset connector
4. P272AA85
Valve head 1/4 right turn
5. P271AA85
Valve head 1/4 left turn

VARIANTS

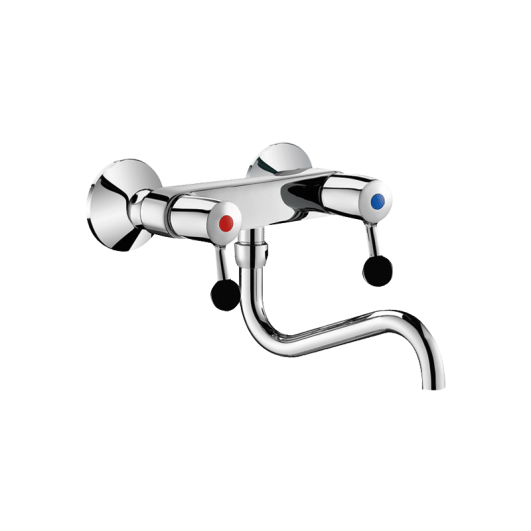

5647T2 Wall-mounted mixer with swivelling over-spout L.200 £334.80 excl. VAT
5645T2 Wall-mounted mixer with swivelling over-spout L.200 £320.09 excl. VAT
