Pre-rinse set with mixer

Ref. 6692
With bib tap and telescopic spout
Pre-rinse set with mixer

Presentation

DESCRIPTION

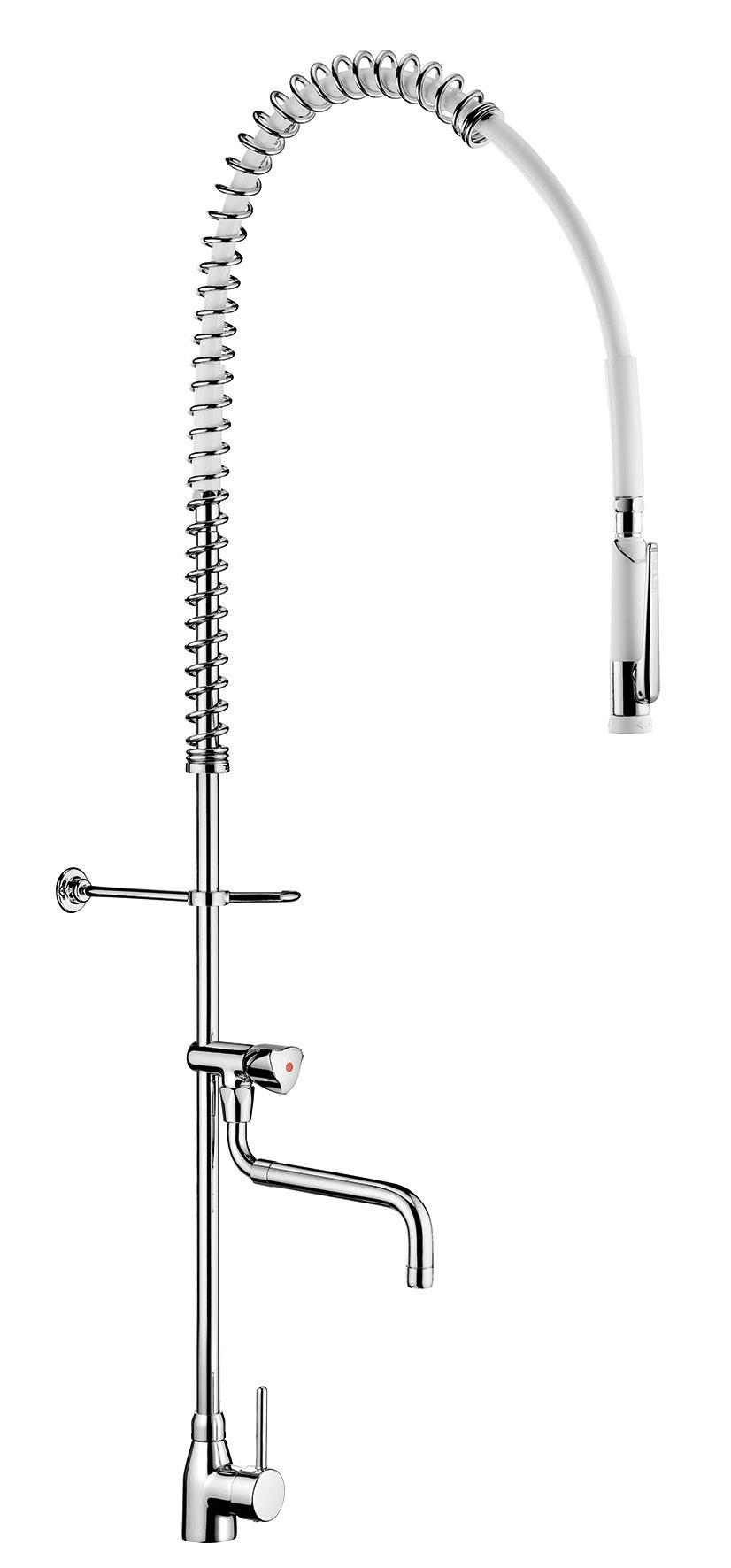

Pre-rinse set with mixer

Ref. 6692
Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- flow rate 16 lpm at the outlet.
- valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2024 UK public price excluding VAT: £877.94

ADVANTAGES

Remplissage rapide

Rapid fill: full flow rate within 1/2 turn

Confort - Ergonomie - Déclenchement souple

Telescopic, swivelling rapid-fill spout

Anti-vandalisme

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 6692
Connector F3/8"
Height 1105 - 1225 mm
Drop height 340 - 580mm
Flow rate 16 lpm bib tap; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability
Pre-rinse set with mixer
Ref. 6692

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. 6692

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

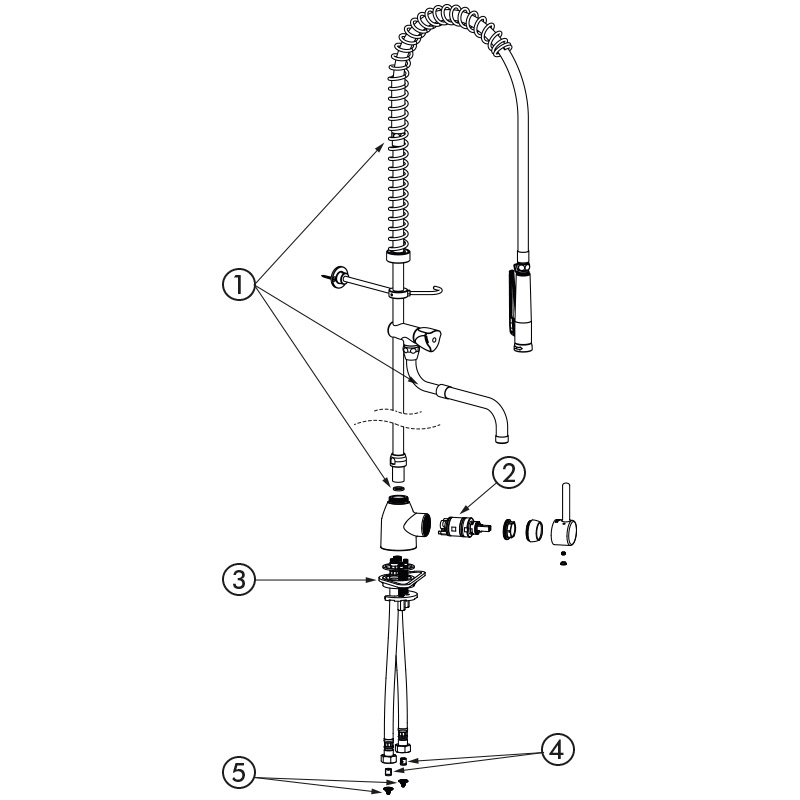

SPARE PARTS

Pre-rinse set with mixer

Ref. 6692
1. 433220
White pe-rinse set with no valve
2. NS262
Ø35mm ceramic cartridge
3. 256P
Fixing plate
4. 2510SES
Locking kit
5. 900010
Non-return valve
6. 60438.10P
Conical filter

VARIANTS

6892 Hand spray with scale-resistant nipples - Bib tap and telescopic spout £920.00 excl. VAT
6893 Hand spray with scale-resistant nipples - Without bib tap £746.66 excl. VAT
6693 Hand spray with scale-resistant nozzle - Without bib tap £704.62 excl. VAT
