Pre-rinse set with mixer

Ref. G6632
With bib tap and swivelling telescopic spout

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. G6632

Complete pre-rinse set with bib tap.
Suitable for intensive use in professional kitchens.
Single hole deck-mounted mixer with:
- valve head with control knobs.
- F3/8" flexible connectors and non-return valves.
- reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with:
- telescopic, swivelling spout L. 200 - 290mm with 20 lpm flow rate at the outlet.
- valve head with control knob.

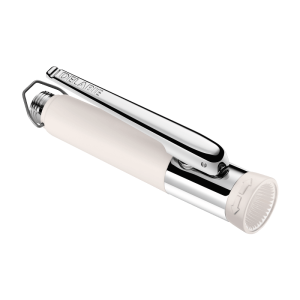

White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray and shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

2025 UK public price excluding VAT: £823.87

ADVANTAGES

Rapid fill: full flow rate 20 lpm

Increased resistance: water-free valve heads

Telescopic, swivelling rapid-fill spout

Anti-torsion rotating nut and PVC sheath

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. G6632

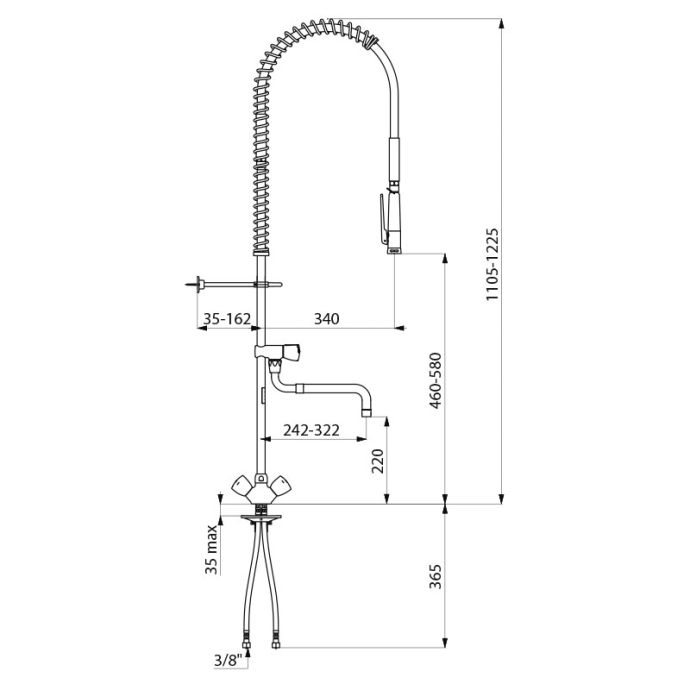

Connector	F3/8"
Height	1075 - 1195mm
Drop height	310 - 550mm
Flow rate	20 lpm with the bib tap; 9 lpm via the hand spray
Width to the wall	35 - 162mm
Finish	Chrome-plated brass
Certificates
Warranty
Repairability
