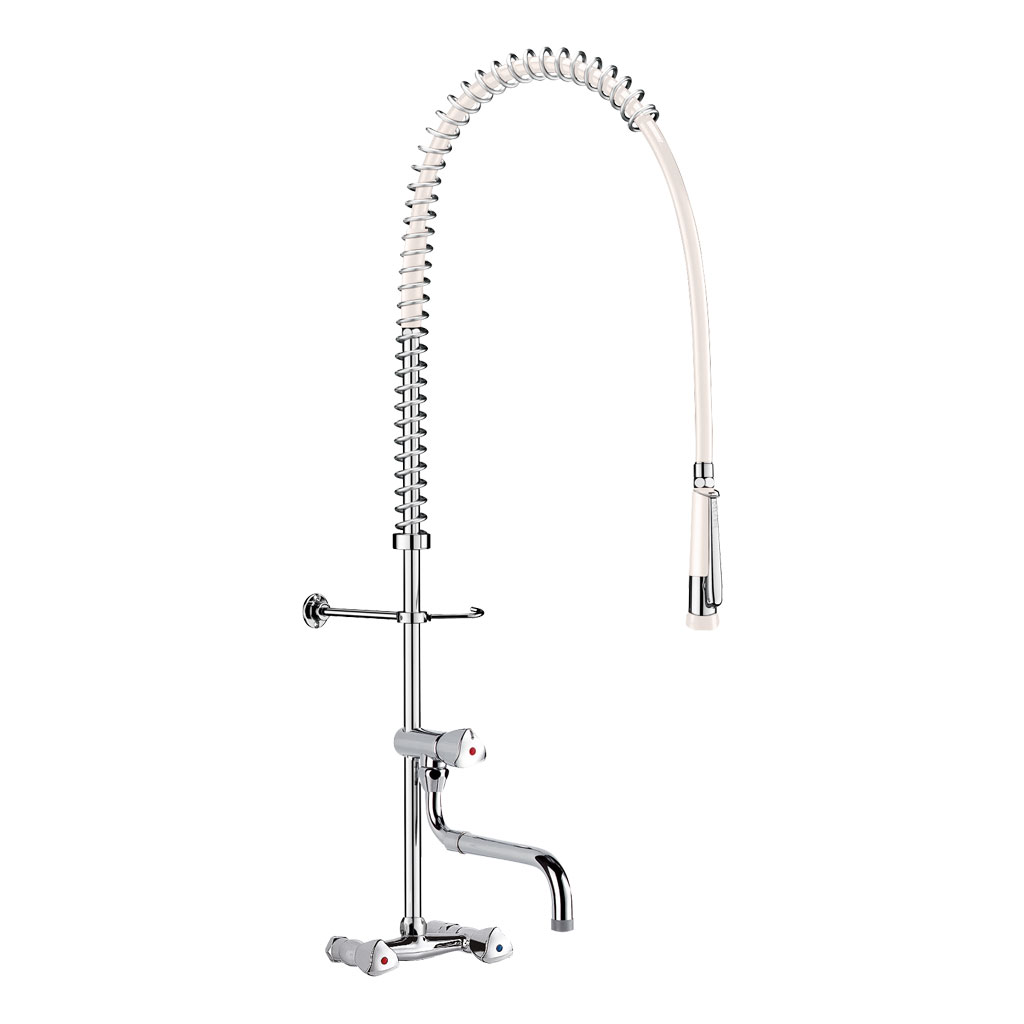

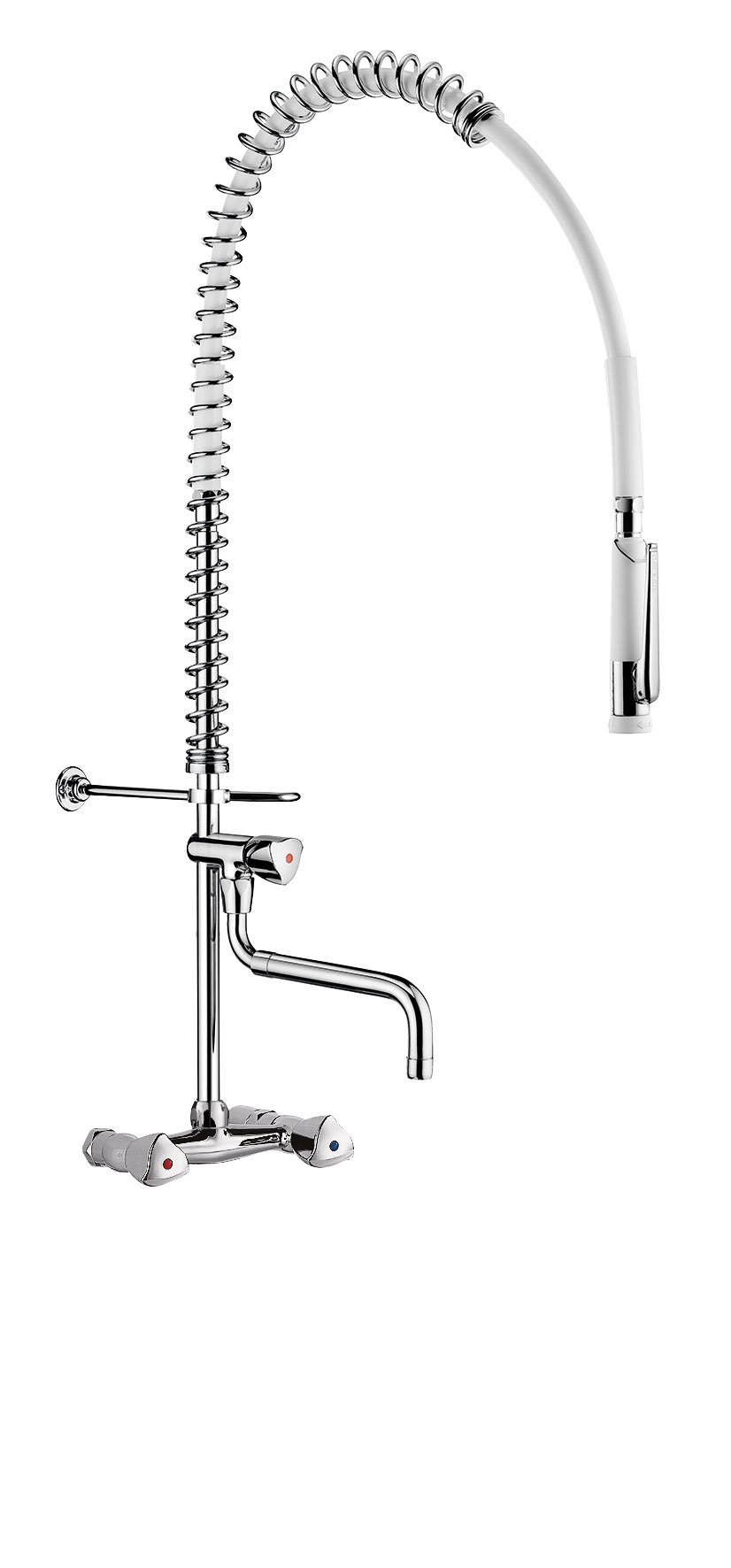

Wall-mounted pre-rinse set with mixer and telescopic spout
Ref. G6432
With bib tap and swivelling telescopic spout
With bib tap and swivelling telescopic spout
DESCRIPTION
Wall-mounted pre-rinse set with mixer and telescopic spout
Ref. G6432Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Wall-mounted F3/4" mixer with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
Bib tap with telescopic, swivelling spout L. 200-290mm.
- 20 lpm flow rate at the outlet.
- valve heads with control knobs.
White hand spray with adjustable jet with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Wall-mounted F3/4" mixer with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
Bib tap with telescopic, swivelling spout L. 200-290mm.
- 20 lpm flow rate at the outlet.
- valve heads with control knobs.
White hand spray with adjustable jet with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
2024 UK public price excluding VAT: £759.32
ADVANTAGES
Rapid fill: full flow rate 20 lpm
Telescopic, swivelling rapid-fill spout
Increased resistance: water-free valve heads
Anti-torsion rotating nut and PVC sheath
TECHNICAL CHARACTERISTICS
Wall-mounted pre-rinse set with mixer and telescopic spout
Ref. G6432Connector | F3/4" |
Height | 840 - 910mm |
Drop height | 185 - 325mm |
Flow rate | 20 lpm with the bib tap; 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Wall-mounted pre-rinse set with mixer and telescopic spout
Ref. G64321. | 433422 |
|
White pre-rinse set with no valve |
2. | G6493 |
|
Subassembly for wall-mounted mixer |
VARIANTS
G6732 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | £801.36 excl. VAT | |
---|---|---|---|
G6733 | Hand spray with scale-resistant nipples - Without bib tap | £640.75 excl. VAT | |
G6433 | Hand spray with scale-resistant nozzle - Without bib tap | £598.71 excl. VAT |
VARIANTS
G6732 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | £801.36 excl. VAT | |
---|---|---|---|
G6733 | Hand spray with scale-resistant nipples - Without bib tap | £640.75 excl. VAT | |
G6433 | Hand spray with scale-resistant nozzle - Without bib tap | £598.71 excl. VAT |
