DESCRIPTION

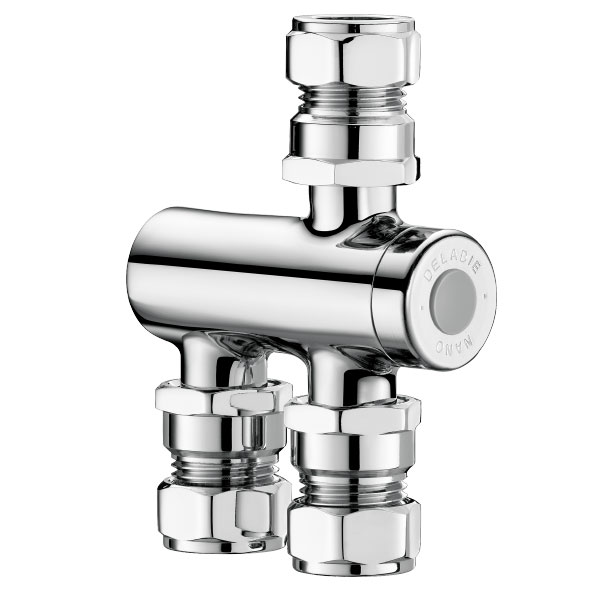

PREMIX NANO thermostatic mixing valve
Ref. 732116Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
2024 UK public price excluding VAT: £105.23
ADVANTAGES
Automatic shut-off if hot or cold water fails
Stable temperature
Non-return valves and filters easily accessible
Thermo-reactive cell
TECHNICAL CHARACTERISTICS
PREMIX NANO thermostatic mixing valve
Ref. 732116| Connector | M½" Ø 15mm |
| Technology | Thermostatic |
| Height | 70mm |
| Finish | Chrome-plated |
| Certificates |
|
| Warranty |
|
VARIANTS
| 732115 | Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8" | £89.41 excl. VAT |
|---|
