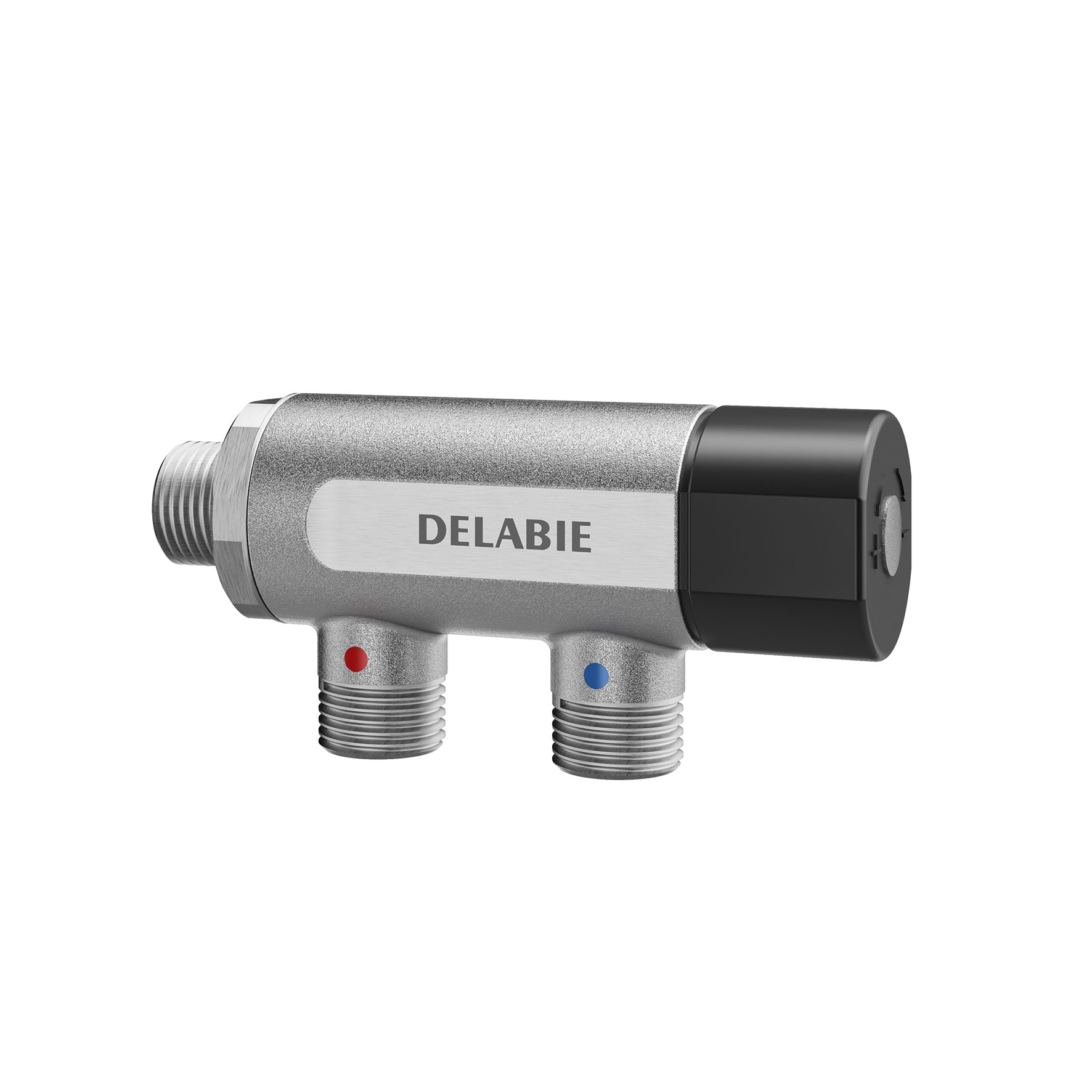

PREMIX COMPACT Thermostatic mixing valve

Ref. 733015
For mixed water 30 - 60°C
PREMIX COMPACT Thermostatic mixing valve

Presentation

DESCRIPTION

PREMIX COMPACT Thermostatic mixing valve

Ref. 733015
PREMIX COMPACT thermostatic mixing valve for mixed water distribution from 30 - 60°C:
For 1 to 11 points-of-use (depending on the flow rate).
Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
Adjustable temperature from 30 - 60°C, can be blocked by the installer.
Brass body.
Filters and non-return valves.
Recommended flow rate range: from 5 - 33 lpm.
Thermal shocks are possible.
M½".
40mm centres.
30-year warranty.

2024 UK public price excluding VAT: £114.52

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if cold water fails

Confort - Ergonomie - Déclenchement souple

Temperature stability

Maintenance aisée - Installation aisée

Accessible filters and non-return valves

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX COMPACT Thermostatic mixing valve

Ref. 733015
Connector M½"
Technology Thermostatic
Length 120mm
Finish Nickel-plated
Certificates ACS Logo Belgaqua Logo DIN-DVGW SINTEF Logo PZH
Warranty 30-Year
PREMIX COMPACT Thermostatic mixing valve
Ref. 733015

Downloads

DOWNLOADS

Mitigeur thermostatique PREMIX COMPACT

Ref. 733015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

733020 M¾" - For 1 to 11 points-of-use from 5 to 33 lpm £114.52 excl. VAT

Associated products

VARIANTS

733020 M¾" - For 1 to 11 points-of-use from 5 to 33 lpm £114.52 excl. VAT
