DESCRIPTION

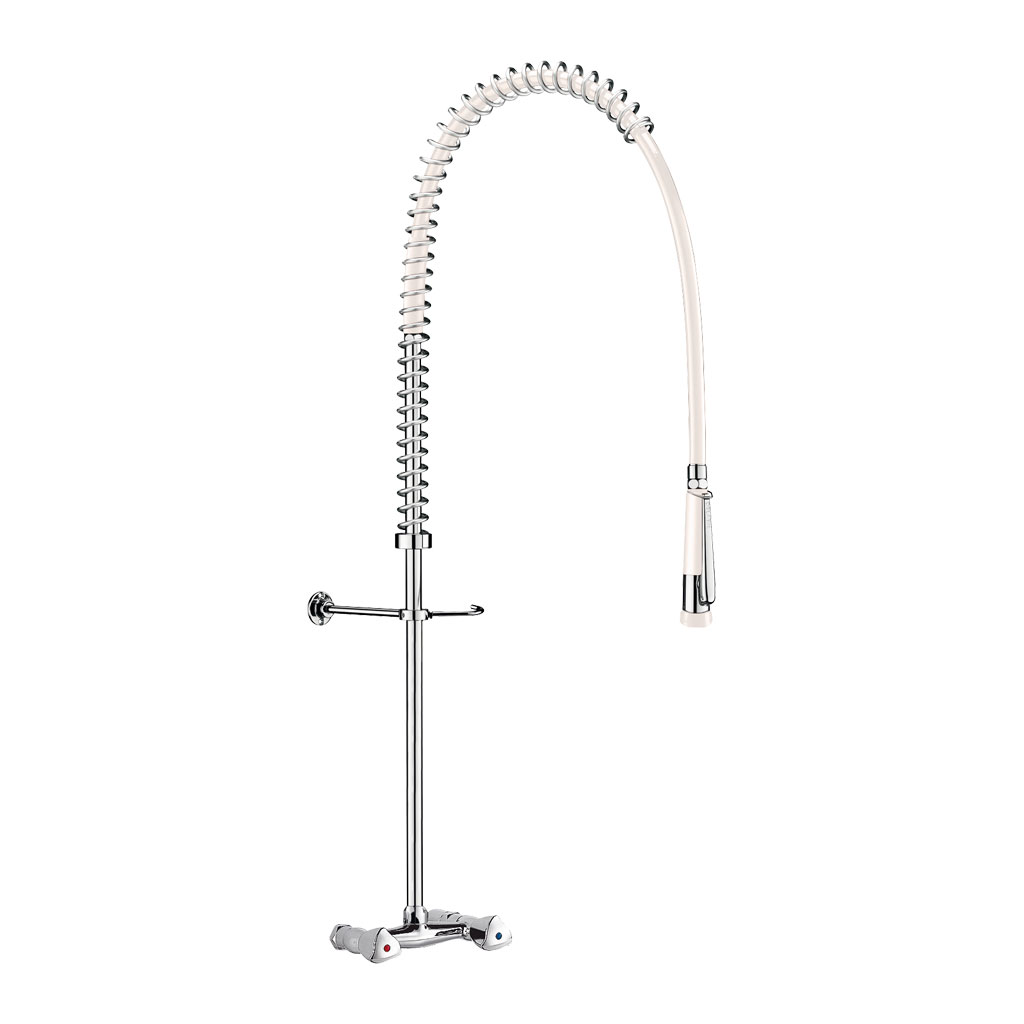

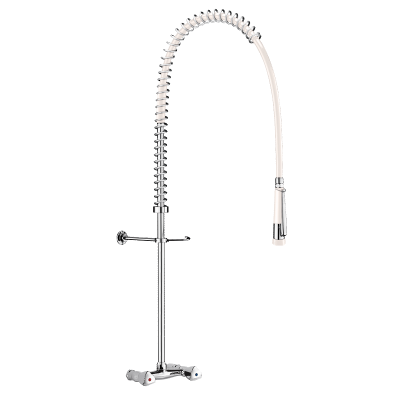

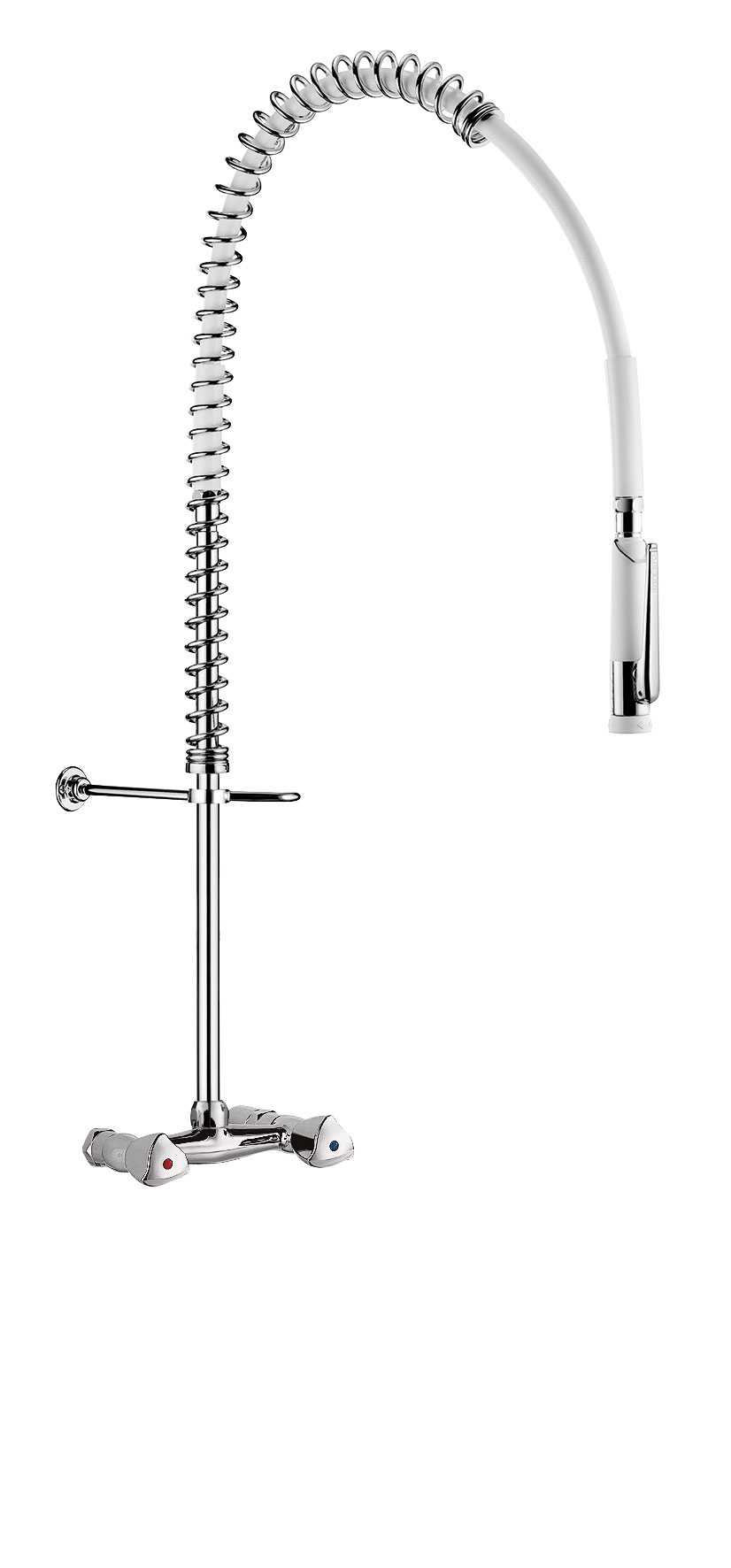

Wall-mounted pre-rinse set with mixer
Ref. G6433Complete pre-rinse set without bib tap.
Suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
White hand spray with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
White hand spray with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
2024 UK public price excluding VAT: £598.71
ADVANTAGES
Increased resistance: water-free valve heads
Anti-torsion rotating nut and PVC sheath
Comfort: hand spray with adjustable jet
Hygiene: PVC flexible, scale-resistant handset

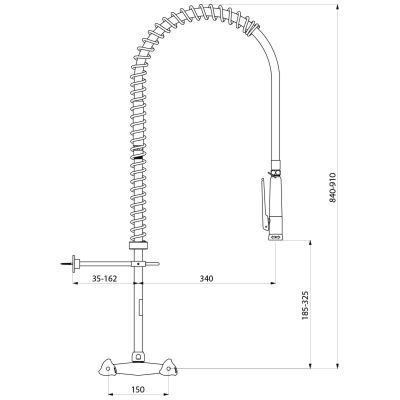

TECHNICAL CHARACTERISTICS
Wall-mounted pre-rinse set with mixer
Ref. G6433Connector | F3/4" |
Height | 840 - 910mm |
Flow rate | 9 lpm |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Wall-mounted pre-rinse set with mixer
Ref. G64331. | 433420 |
|
White pre-rinse set with no valve |
2. | G6493 |
|
Subassembly for wall-mounted mixer |
VARIANTS

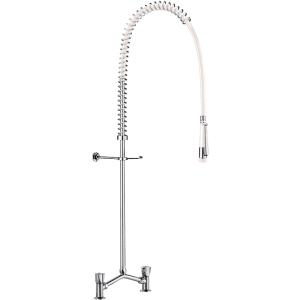

G6732 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | £801.36 excl. VAT | |
---|---|---|---|
G6733 | Hand spray with scale-resistant nipples - Without bib tap | £640.75 excl. VAT | |
G6432 | Hand spray with scale-resistant nozzle - Bib tap and telescopic spout | £759.32 excl. VAT |
VARIANTS
G6732 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | £801.36 excl. VAT | |
---|---|---|---|
G6733 | Hand spray with scale-resistant nipples - Without bib tap | £640.75 excl. VAT | |
G6432 | Hand spray with scale-resistant nozzle - Bib tap and telescopic spout | £759.32 excl. VAT |
