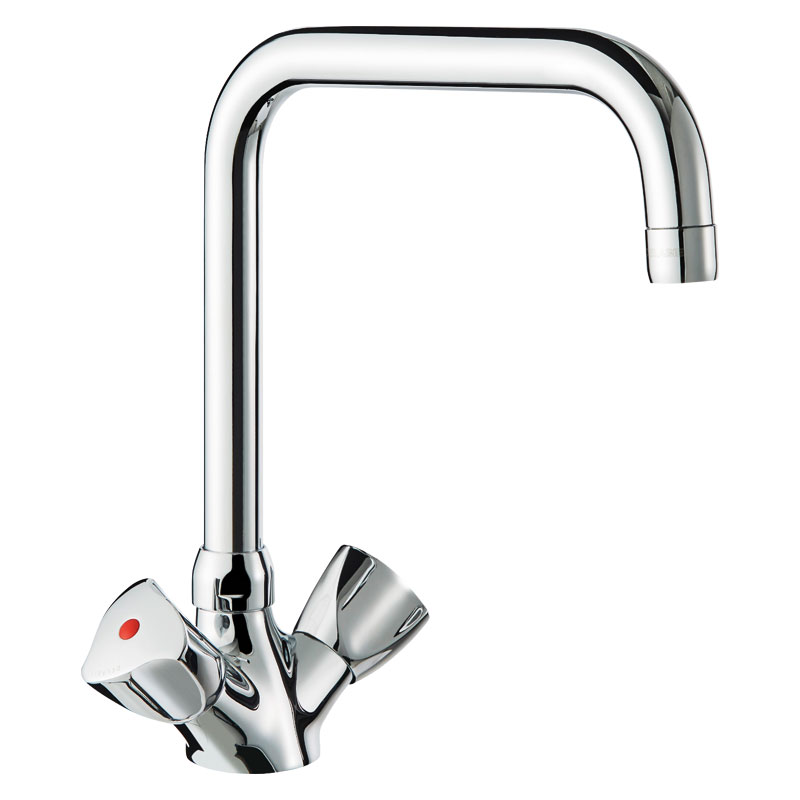

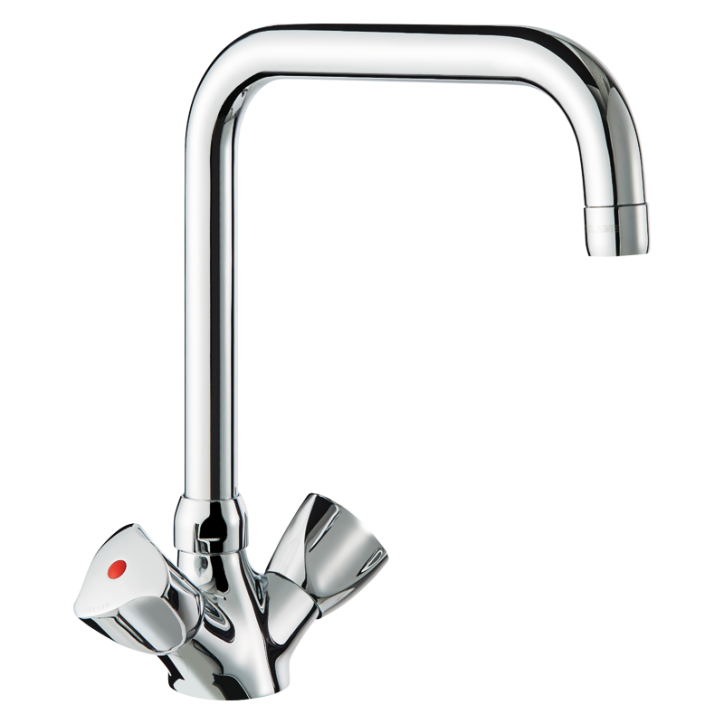

Deck-mounted single hole mixer - 45 lpm

Ref. G66452
Swivelling over spout L. 200mm H. 190mm

Presentation

DESCRIPTION

Deck-mounted single hole mixer - 45 lpm

Ref. G66452

Deck-mounted single hole mixer for professional kitchens.
Mixer for plunge sinks with swivelling, tubular spout H. 190mm L. 200mm.
Star-shaped flow straightener.
Water-free valve heads with control knobs.
Flow rate 45 lpm at 3 bar.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.

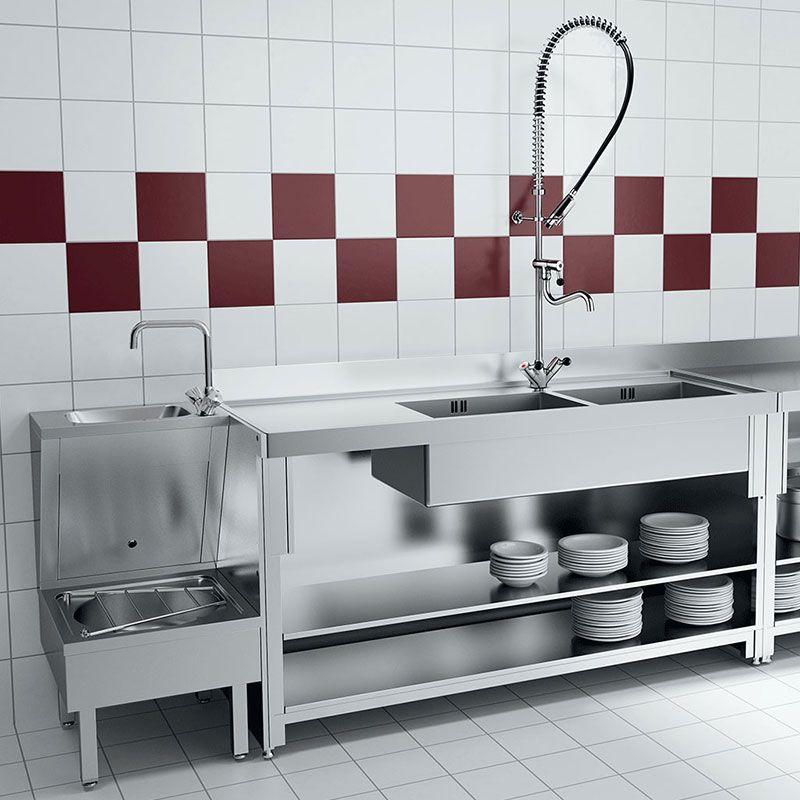

Suitable for intensive use in professional kitchens.
30-year warranty.

2025 UK public price excluding VAT: £264.01

ADVANTAGES

Rapid fill: flow rate 45 lpm at 3 bar

Brass body and spout suitable for intensive use

Maximum hygiene: spout with smooth interior

Increased resistance: reinforced fixing

Characteristics

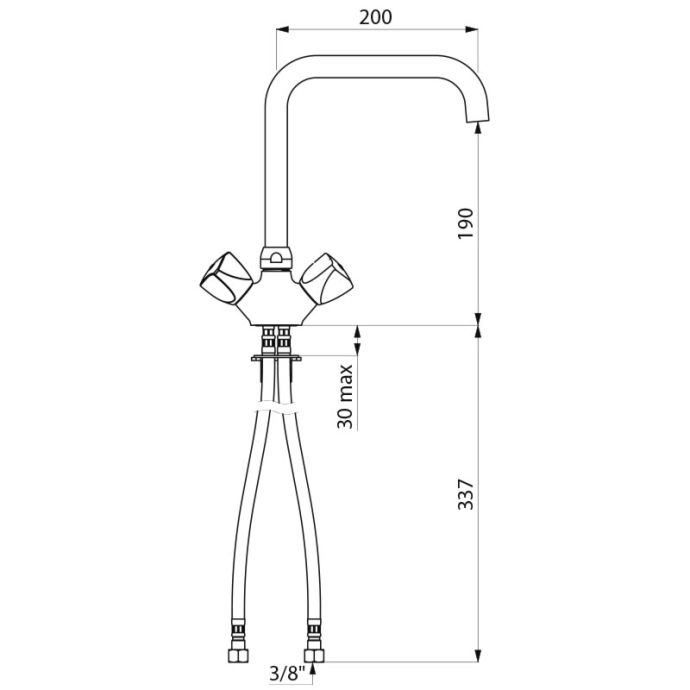

TECHNICAL CHARACTERISTICS

Deck-mounted single hole mixer - 45 lpm

Ref. G66452

Connector	F3/8"
Height	270mm
Drop height	190mm
Spout length	200mm
Flow rate	45 lpm
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Deck-mounted single hole mixer - 45 lpm

Ref. G66452

To download one or several documents linked to this product, please select the type of file you require :

Product sheet without price

Product sheet with price

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

BIM files

Certificates

Spare parts

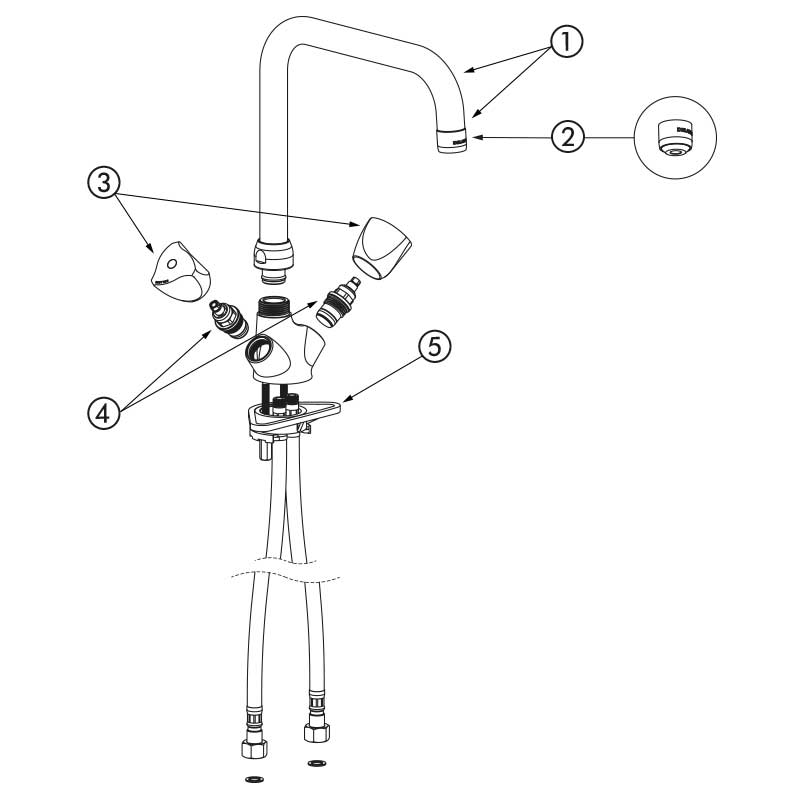

SPARE PARTS

Deck-mounted single hole mixer - 45 lpm

Ref. G66452

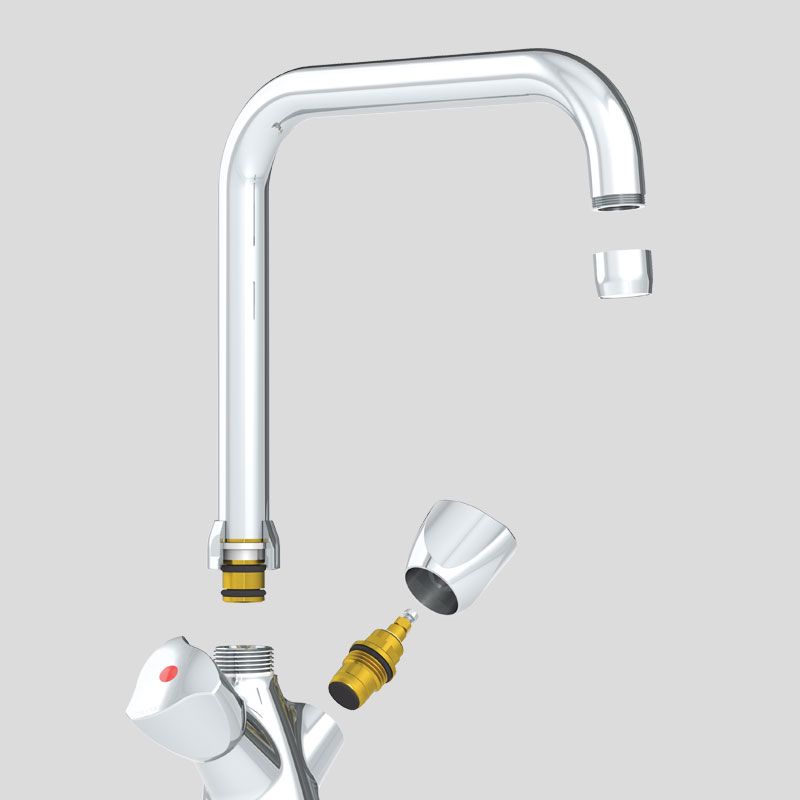

1.	963200145F	Swivelling tubular spout
2.	921022.2P	Star-shaped flow straightener
3.	366015.2P	Bare LONG LIFE valve head
4.	256P	Fixing plate
5.	FLEX79508	F3/8" PEX flexible hoses
