KOMPACT washbasin and wall-hung WC combination

Ref. 160400
Polished satin 304 stainless steel - Wall-mounted - WC on left side
KOMPACT washbasin and wall-hung WC combination

Presentation

DESCRIPTION

KOMPACT washbasin and wall-hung WC combination

Ref. 160400

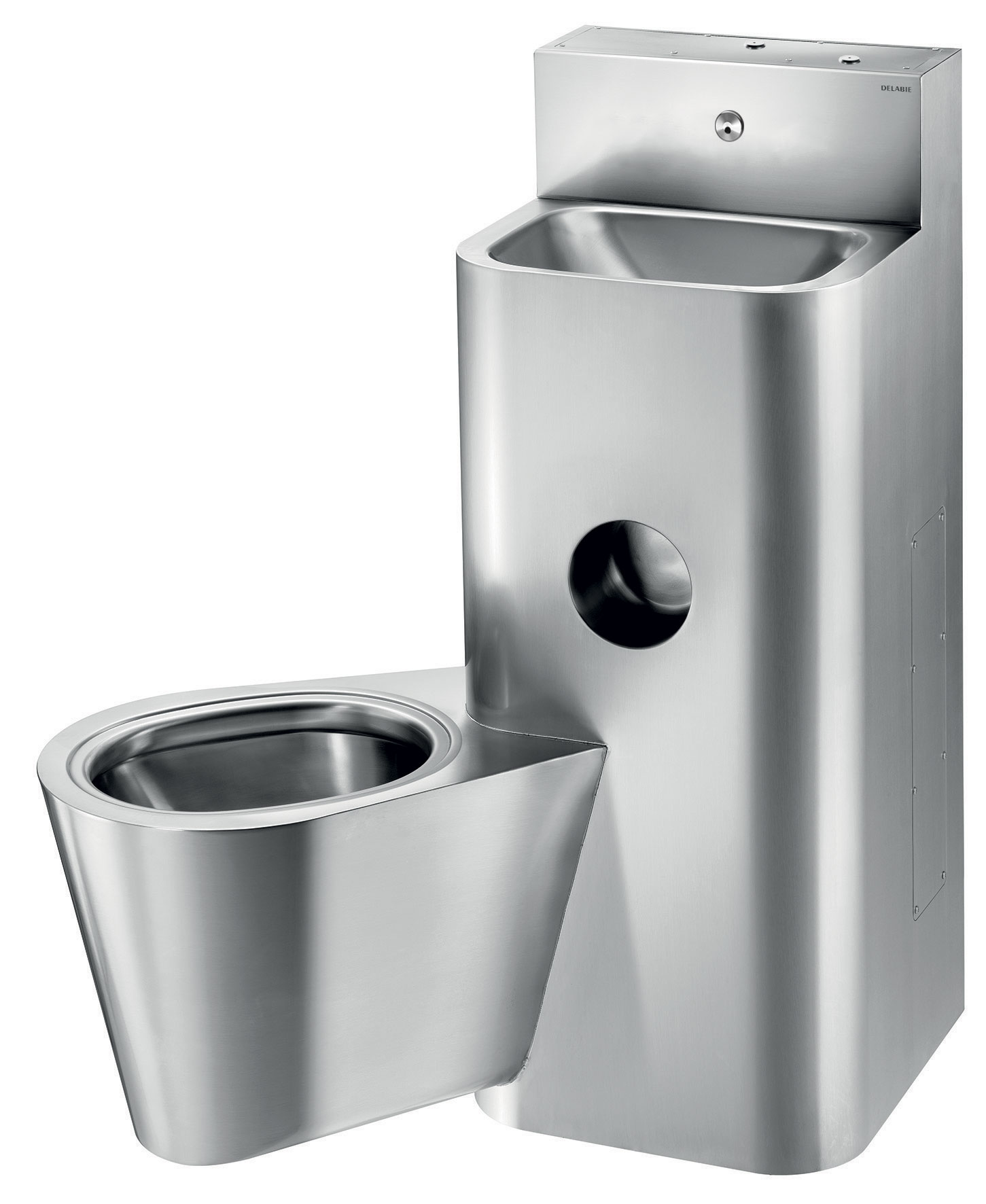

Combination unit: washbasin and suspended WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

[Formerly ref: 0610030004]

2024 UK public price excluding VAT: £2,858.00

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Anti-vandalisme

Suitable for secure sector

Characteristics

TECHNICAL CHARACTERISTICS

KOMPACT washbasin and wall-hung WC combination

Ref. 160400
Height 1000mm
Length 725mm
Width 735mm
Thickness 2mm
Finish 304 polished satin stainless steel
Certificates ACS Logo PZH
Warranty 30-Year
KOMPACT washbasin and wall-hung WC combination
Ref. 160400

Downloads

DOWNLOADS

KOMPACT washbasin and wall-hung WC combination

Ref. 160400

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

160300 Wall-mounted WC - WC pan on the right side £2,858.00 excl. VAT
160500 Wall-mounted WC - centered WC pan £2,858.00 excl. VAT
160600 Floor-standing WC - WC pan on the right side £2,858.00 excl. VAT
160700 Floor-standing WC - WC pan on the left side £2,858.00 excl. VAT
160800 Floor-standing WC - centered WC pan £2,858.00 excl. VAT
161600 Floor-standing WC - WC pan on the right side - 2 push-buttons CW/MW £3,044.38 excl. VAT
161700 Floor-standing WC - WC pan on the left side - 2 push-buttons CW/MW £3,044.38 excl. VAT
161800 Floor-standing WC - centered WC pan - 2 push-buttons CW/MW £3,044.38 excl. VAT
