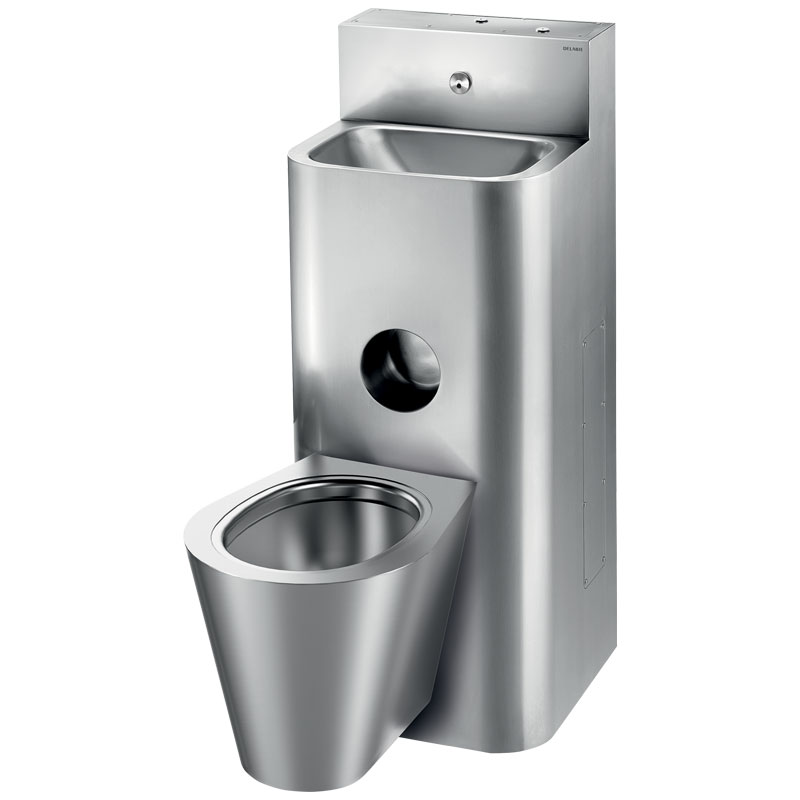

KOMPACT washbasin and wall-hung WC combination
Ref. 160500
Polished satin 304 stainless steel - Wall-mounted - Central WC
Polished satin 304 stainless steel - Wall-mounted - Central WC
DESCRIPTION
KOMPACT washbasin and wall-hung WC combination
Ref. 160500Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm
Supplied with washbasin siphon.
Easy installation: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030005]
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm
Supplied with washbasin siphon.
Easy installation: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030005]
2024 UK public price excluding VAT: £2,858.00
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for secure sector
TECHNICAL CHARACTERISTICS
KOMPACT washbasin and wall-hung WC combination
Ref. 160500Height | 1000mm |
Length | 400mm |
Width | 850mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
Certificates | |
Warranty |
VARIANTS
160300 | Wall-mounted WC - WC pan on the right side | £2,858.00 excl. VAT | |
---|---|---|---|
160400 | Wall-mounted WC - WC pan on the left side | £2,858.00 excl. VAT | |
160600 | Floor-standing WC - WC pan on the right side | £2,858.00 excl. VAT | |
160700 | Floor-standing WC - WC pan on the left side | £2,858.00 excl. VAT | |
160800 | Floor-standing WC - centered WC pan | £2,858.00 excl. VAT | |
161600 | Floor-standing WC - WC pan on the right side - 2 push-buttons CW/MW | £3,044.38 excl. VAT | |
161700 | Floor-standing WC - WC pan on the left side - 2 push-buttons CW/MW | £3,044.38 excl. VAT | |
161800 | Floor-standing WC - centered WC pan - 2 push-buttons CW/MW | £3,044.38 excl. VAT |
