TEMPOFLUX 2 control plate for WCs
Ref. 578222
Soft-touch operation time flow valve, 3L/6L dual flush
Soft-touch operation time flow valve, 3L/6L dual flush
DESCRIPTION

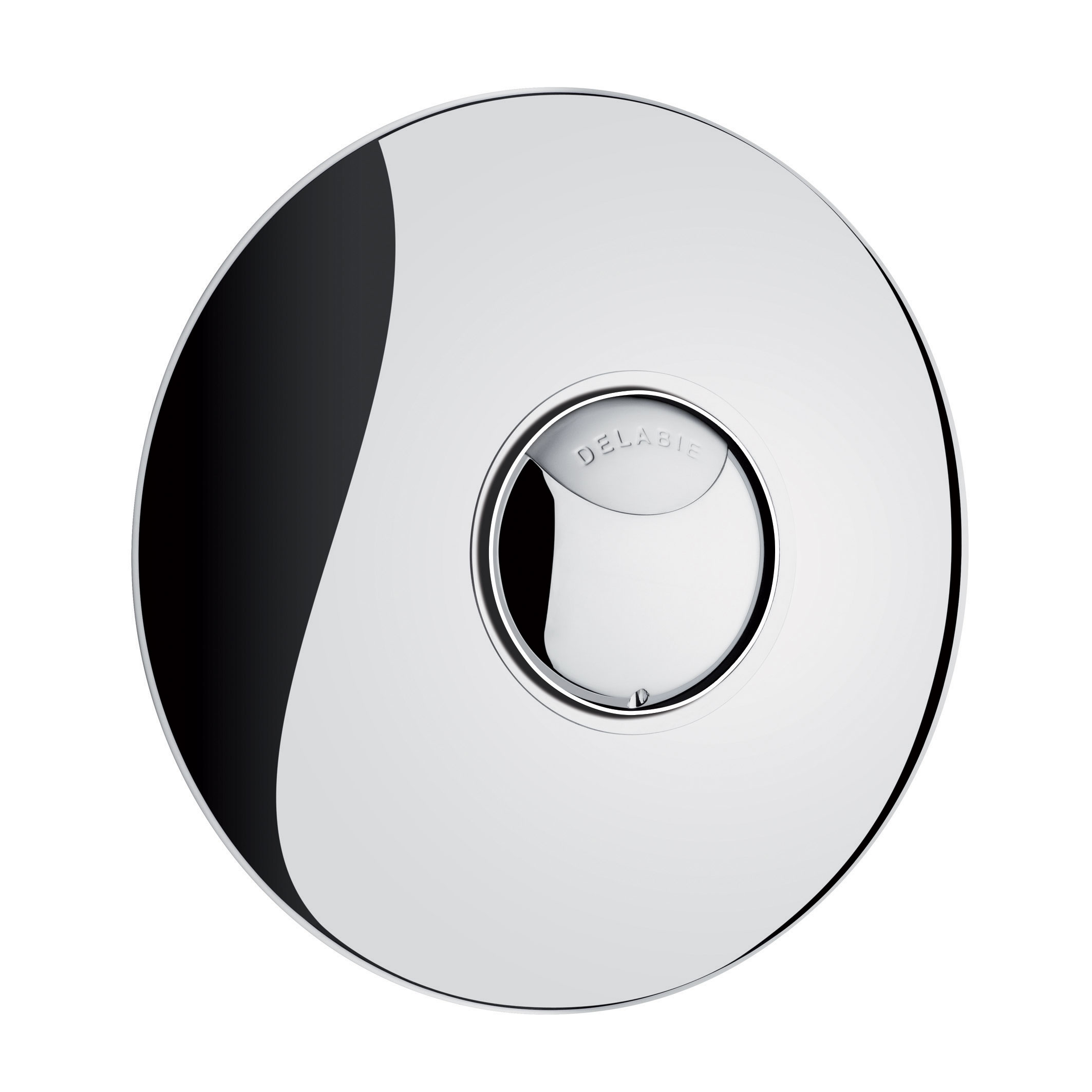

TEMPOFLUX 2 control plate for WCs
Ref. 578222Control plate for TEMPOFLUX 2 time flow direct flush, kit 2/2:
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
Flush system without cistern, directly connected to pipework.
Ø 195mm chrome-plated metal wall plate.
Concealed mechanical fixing of the wall plate.
3L/6L dual flush can be adjusted to 2L/4L.
Soft-touch operation.
For walls 10 - 35mm.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Complies with European standard EN 12541 class II.
30-year warranty.
Order with frame system references 578305DE or 578405DE.
2024 UK public price excluding VAT: £115.98
ADVANTAGES
Soft-touch operation
Direct flush: no water stagnation
Flush is instantly available
3L/6L dual flush, can be adjusted to 2L/4L
TECHNICAL CHARACTERISTICS
TEMPOFLUX 2 control plate for WCs
Ref. 578222| Connector | ¾" |
| Technology | Time flow |
| Depth | Walls from 10 to 35mm |
| Flow rate | 3L/6L or 2L/4L |
| Diameter | Ø 195mm |
| Finish | Chrome-plated metal |
| Certificates |
|
| Warranty |
|
VARIANTS
| 578230 | Adjustable. dual flush - for walls 70 - 130mm, inline inlet M3/4" | £194.23 excl. VAT | |
|---|---|---|---|
| 578212 | Adjustable single flush - for walls 10 - 60mm, inline inlet M3/4" | £105.45 excl. VAT |

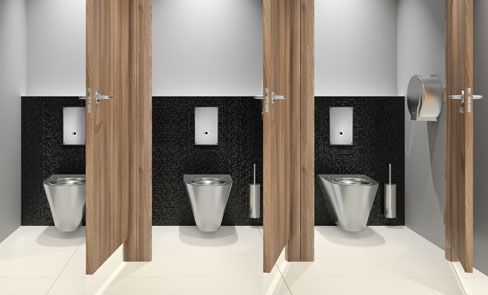

Discover the advantages of direct flush WC
