DESCRIPTION

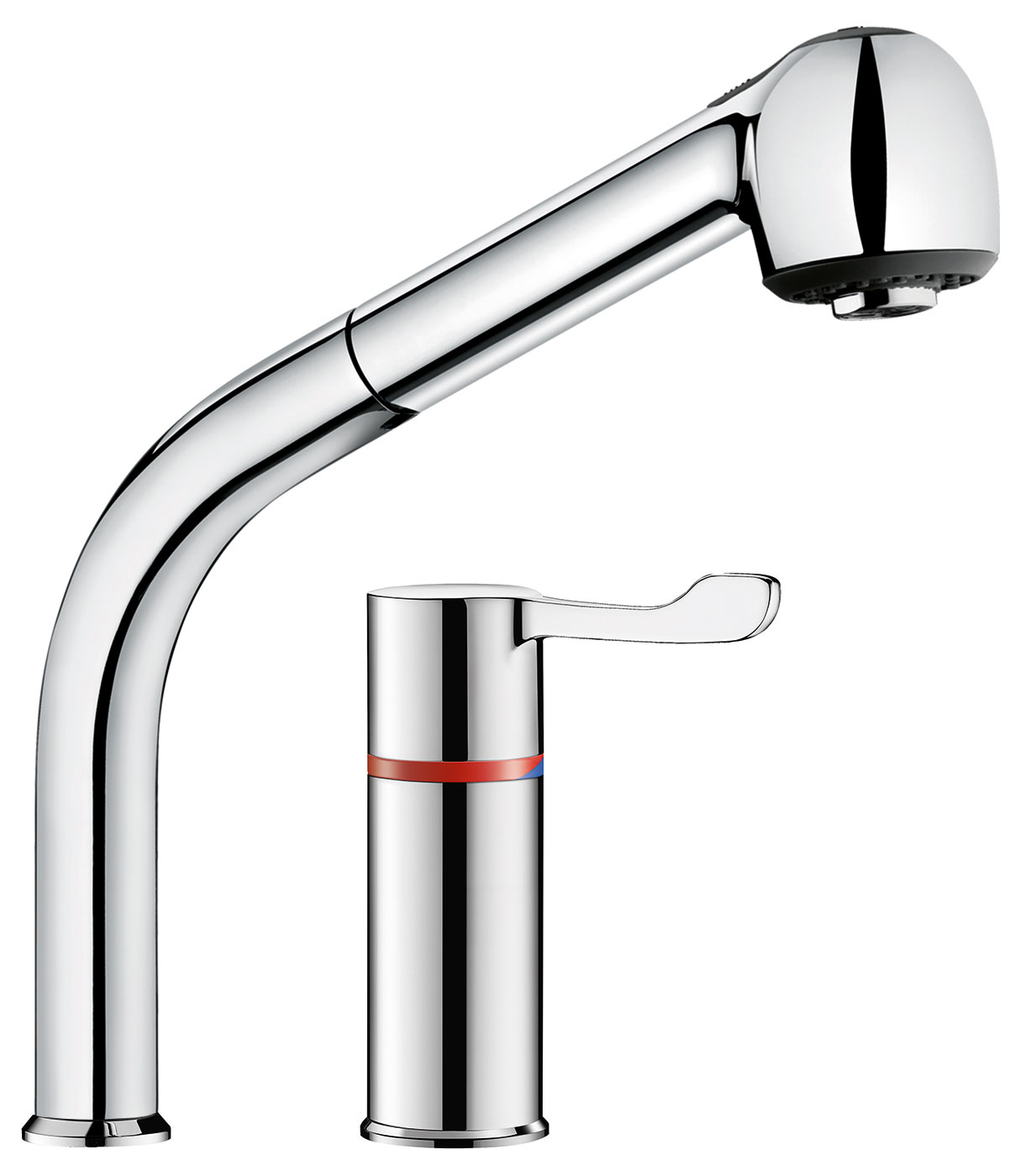

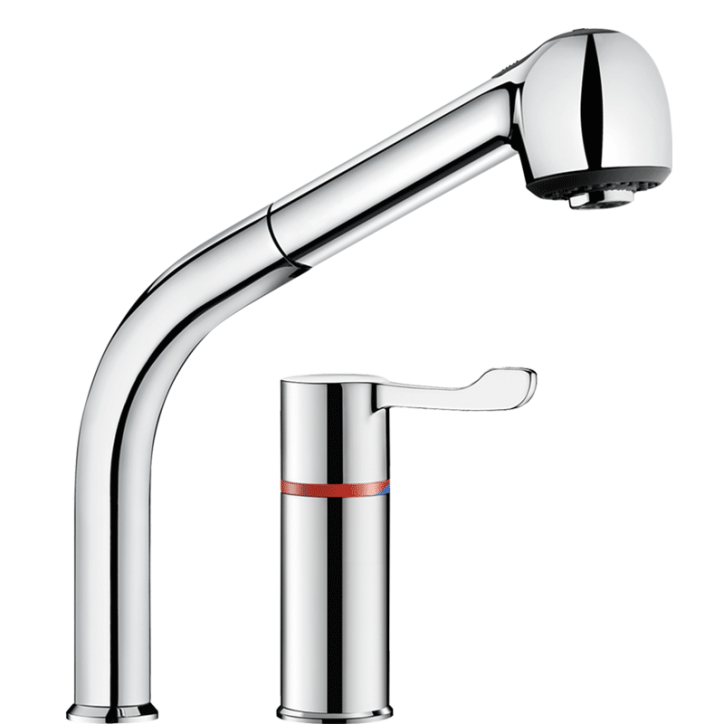

SECURITHERM thermostatic sink mixer set
Ref. H9613SECURITHERM thermostatic sequential sink mixer set and column with retracting hand spray.
Ideal for baby baths.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Sequential: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Swivelling column H. 195mm L. 215mm.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Temperature can be adjusted from cold water to 40°C with maximum temperature limiter set at 40°C.
Body and column with smooth interiors.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 100mm.
Mixed water brass outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane, smooth interior and exterior.
Hose with narrow diameter (internal Ø 6mm): low water volume.
Specific counterweight.
PEX flexibles F3/8" and reinforced fixing via 2 stainless steel rods.
Ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.
Ideal for baby baths.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Sequential: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Swivelling column H. 195mm L. 215mm.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Temperature can be adjusted from cold water to 40°C with maximum temperature limiter set at 40°C.
Body and column with smooth interiors.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 100mm.
Mixed water brass outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane, smooth interior and exterior.
Hose with narrow diameter (internal Ø 6mm): low water volume.
Specific counterweight.
PEX flexibles F3/8" and reinforced fixing via 2 stainless steel rods.
Ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.
2024 UK public price excluding VAT: £510.20
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygiene: no non-return valves
![Sécurité anti-brûlure](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)

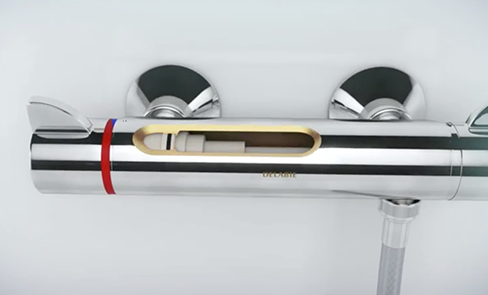

SECURITHERM: Optimal anti-scalding safety
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.co.uk/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Sequential open and closing on cold water

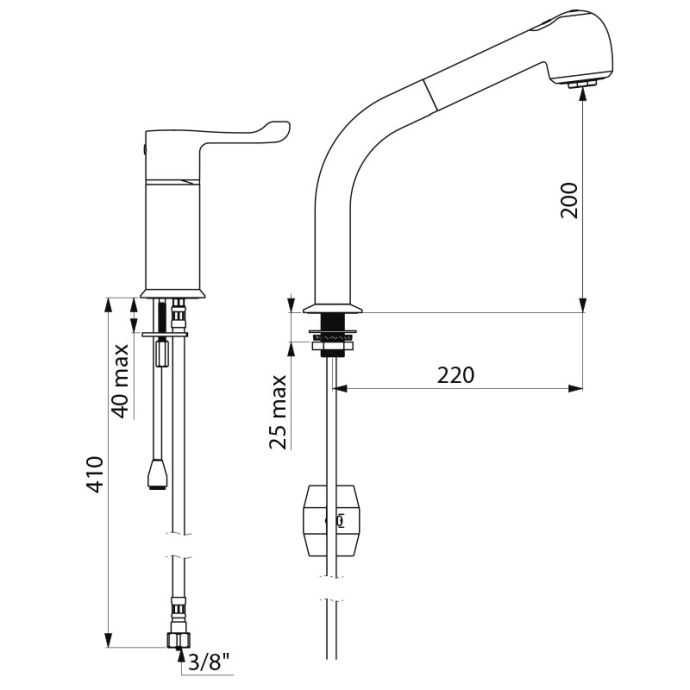

TECHNICAL CHARACTERISTICS
SECURITHERM thermostatic sink mixer set
Ref. H9613Connector | F3/8" |
Technology | SECURITHERM sequential Securitouch |
Drop height | 195mm |
Spout length | 215mm |
Flow rate | 7 lpm |
Temperature limiter | 40°C |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

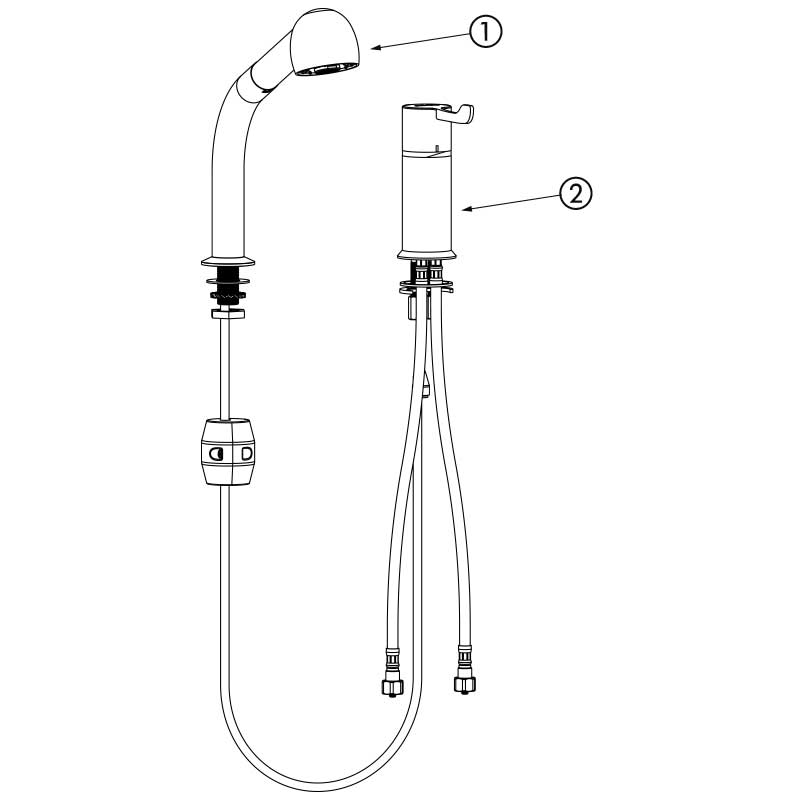

SPARE PARTS
SECURITHERM thermostatic sink mixer set
Ref. H9613![](https://www.delabie.co.uk/var/site/storage/images/3/9/2/2/3282293-1-fre-FR/PD_H9613.jpg)
1. | 1316 |
|
Swivelling column with retracting hand spray H. 200mm |
2. | H9642 |
|
SECURITHERM thermostatic mixer |
3. | 2211CP |
|
Counterweight |
VARIANTS
1316 | Column with hand spray for sinks | £194.96 excl. VAT | |
---|---|---|---|
H9642 | Remote thermostatic mixer | £325.08 excl. VAT |
