Recessed thermostatic sequential shower mixer with angled outlet

Ref. H9633L
SECURITHERM mixer with no non-return valves, kit 2/2
Recessed thermostatic sequential shower mixer with angled outlet

Presentation

DESCRIPTION

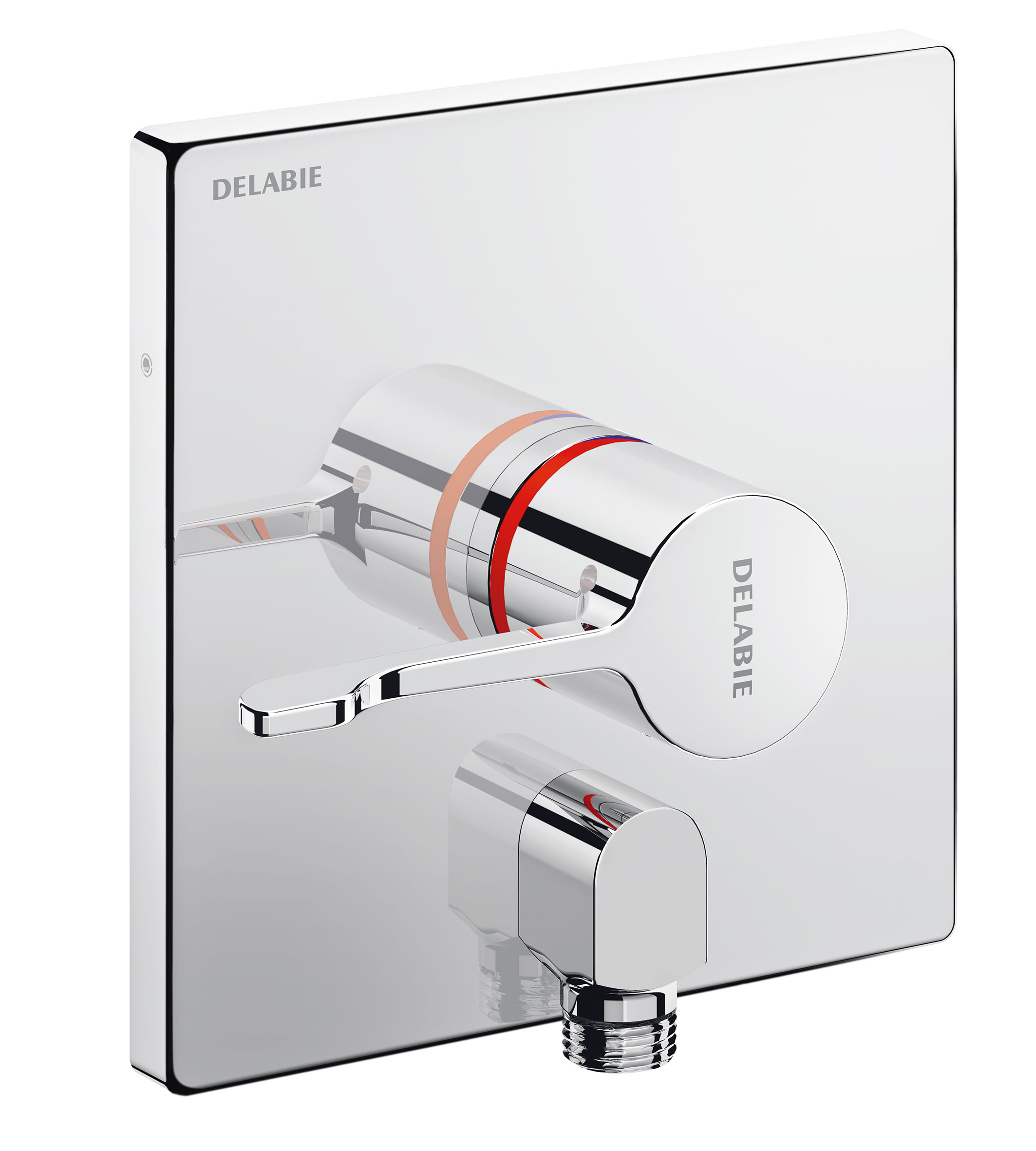

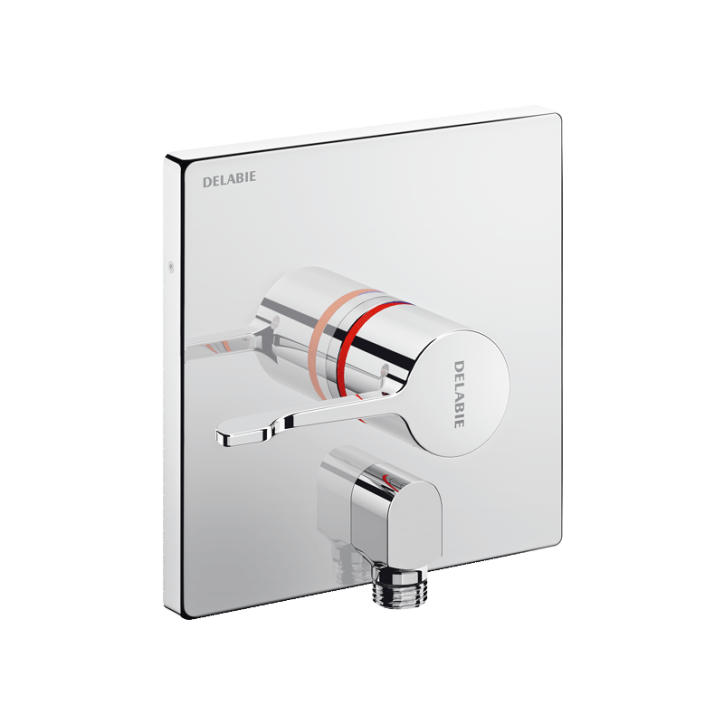

Recessed thermostatic sequential shower mixer with angled outlet

Ref. H9633L
Recessed SECURITHERM thermostatic shower with elbow outlet, kit 2/2 :
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Prevents cold showers: cold water supply shuts off if hot water supply fails.

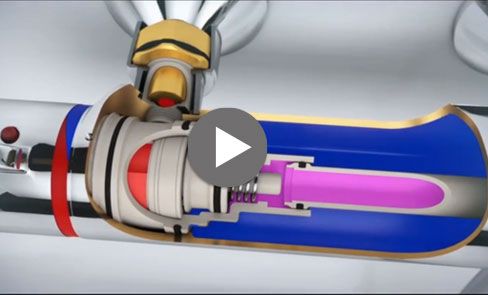

Sequential mixer with Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge adjusts the flow rate and temperature.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
Hygiene lever L. 100mm.
Filters integrated on the inlets M3/4".
Order a shower head or wall outlet.
Bright polished stainless steel wall plate 166 x 166mm.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.

Order the waterproof recessing housing ref. H96CBOX.

2024 UK public price excluding VAT: £354.79

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

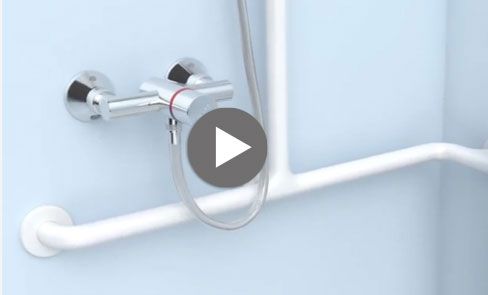

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: optimal anti-scalding safety

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

Recessed thermostatic sequential shower mixer with angled outlet

Ref. H9633L
Technology SECURITHERM Securitouch thermostatic sequential mixer
Height 166mm
Width 166mm
Flow rate Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo HKWSD Logo WRAS
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de douche thermostatique encastrable séquentiel avec coude

Ref. H9633L

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Recessed thermostatic sequential shower mixer with angled outlet

Ref. H9633L
1. N962
Thermostatic cartridge for shower mixers

VARIANTS

H9633 Thermostatic mixer with ERGO control knobs - With elbow outlet £345.10 excl. VAT
H9631 Thermostatic mixer with ERGO control knobs - Without elbow outlet £303.71 excl. VAT
H9631L Thermostatic mixer with Hygiene lever - Without elbow outlet £313.85 excl. VAT
H96CBOX Waterproof housing for control plate with elbow £331.29 excl. VAT
H96BOX Waterproof housing for control plate without elbow £296.79 excl. VAT
