Shower kit with thermostatic mixer

Ref. H9739SHYG
Securitouch dual control thermostatic mixer
Shower kit with thermostatic mixer

Presentation

DESCRIPTION

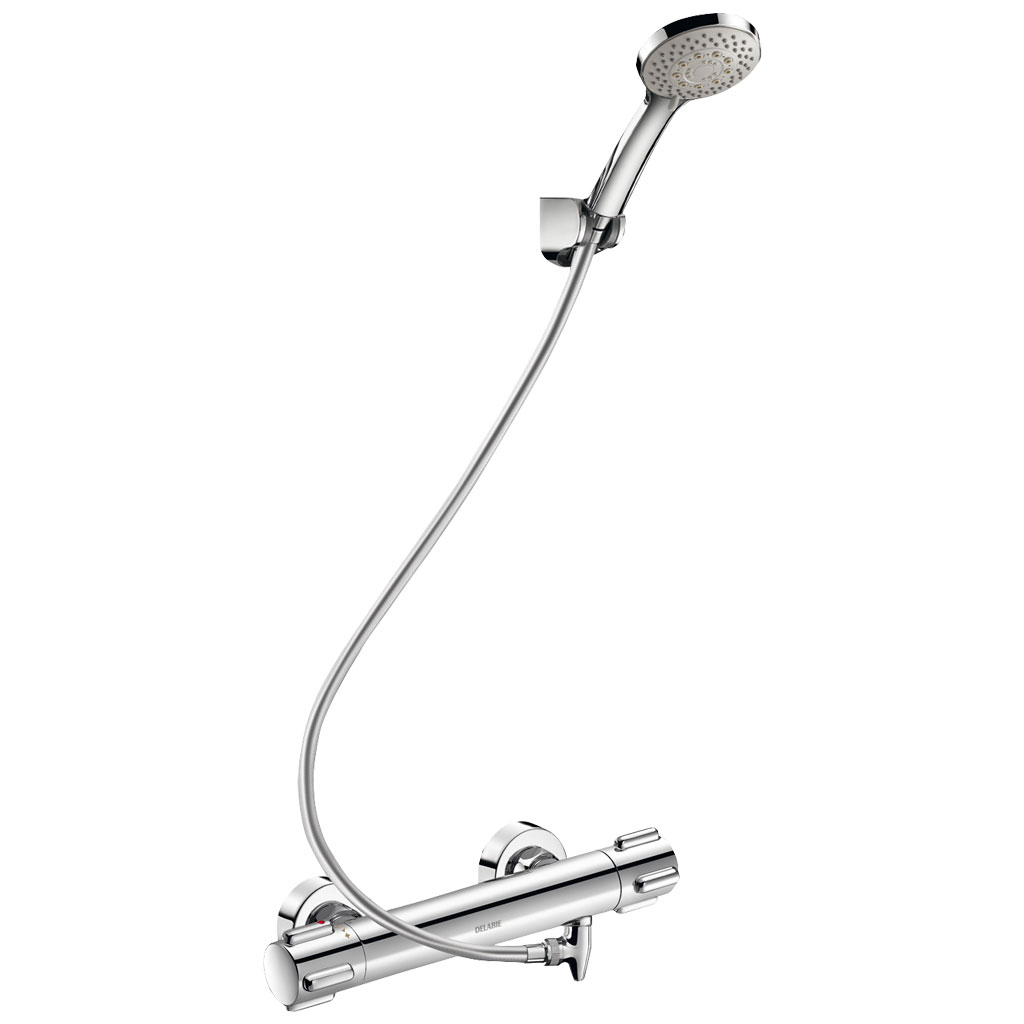

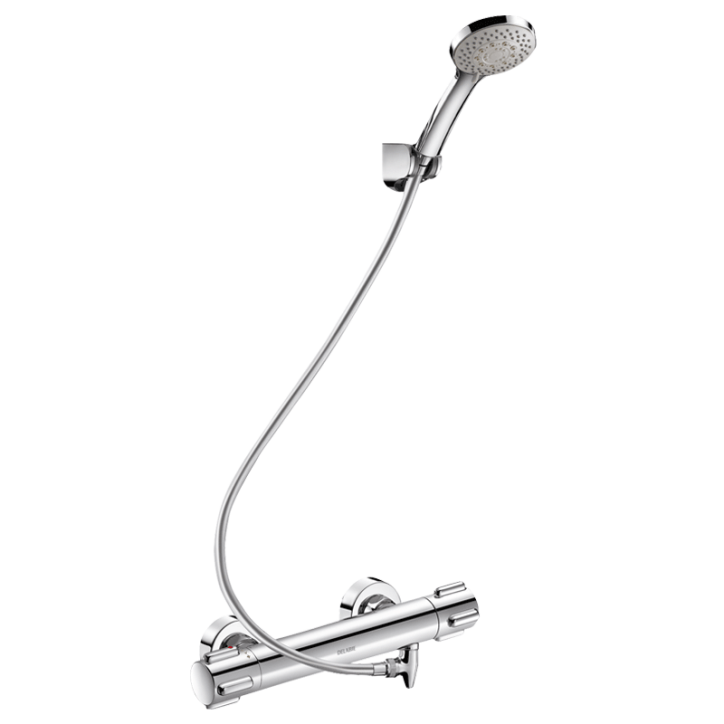

Shower kit with thermostatic mixer

Ref. H9739SHYG
SECURITHERM dual control thermostatic shower kit with auto-draining device:
• Shower mixer with scale-resistant, thermostatic cartridge:
Mixer with anti-scalding failsafe: shuts off automatically if cold supply fails.
Prevents cold showers: shuts off automatically if hot water supply fails.
Scale-resistant thermostatic cartridge for temperature adjustment.
¼-turn ceramic head for flow rate adjustment.
Temperature adjusts from 25 - 40°C with maximum temperature pre-set at 38°C.
Thermal shocks are possible without removing the control knob or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body with CLASSIC controls.
M1/2" shower outlet.
Filters and non-return valves integrated on the F3/4" inlets.
Mixer with offset standard wall connectors, M1/2" M3/4".

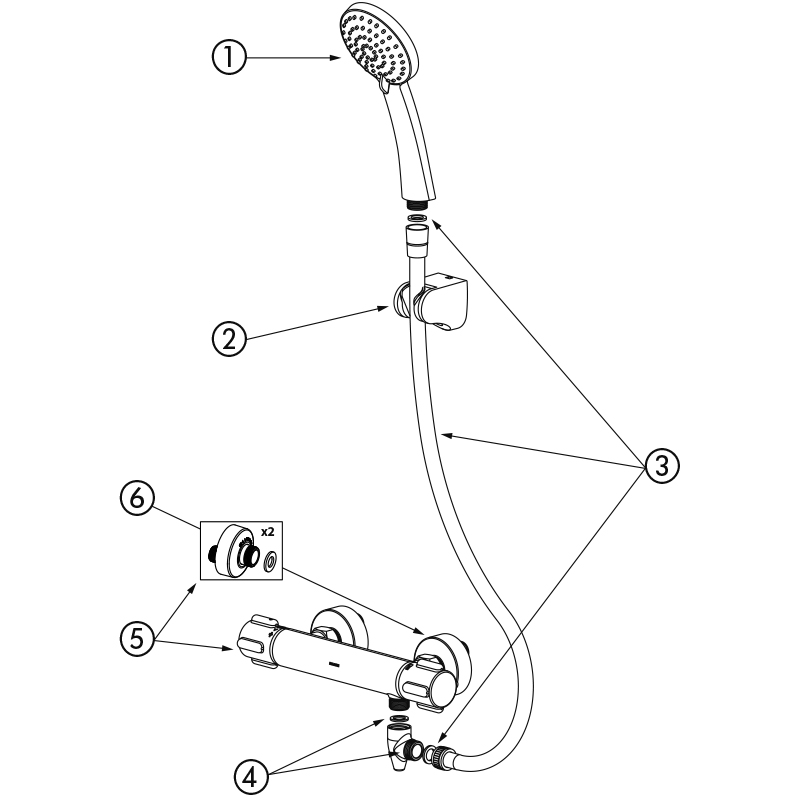

• Shower head (ref. 813) with chrome-plated wall-mounted tilting support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Shower mixer with 30-year warranty.

2024 UK public price excluding VAT: £389.49

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Hygiène - Anti-bactérien - BIOSAFE

Automatically drains shower head and flexible hose

Confort - Ergonomie - Déclenchement souple

Thermostatic: total temperature stability

Characteristics

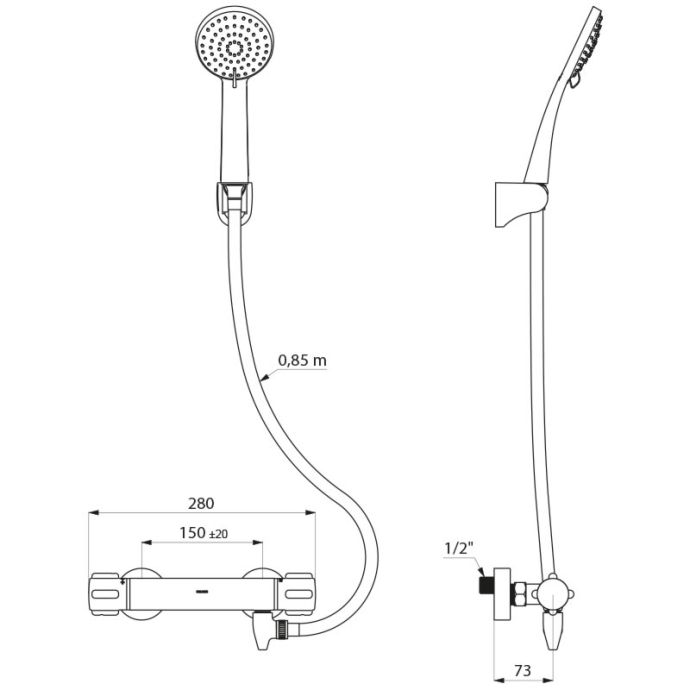

TECHNICAL CHARACTERISTICS

Shower kit with thermostatic mixer

Ref. H9739SHYG
Connector M1/2"
Technology SECURITHERM thermostatic mixer

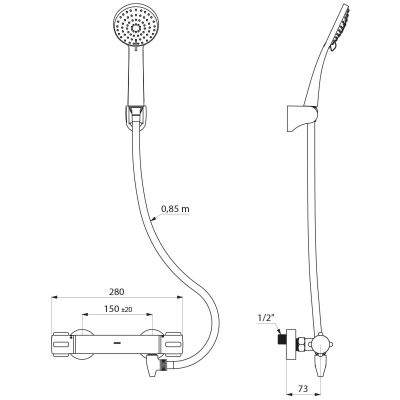

Depth 73mm
Length 281mm
Width 280mm
Flow rate 9 lpm
Temperature limiter 38°C
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Ensemble de douche avec mitigeur thermostatique SECURITHERM

Ref. H9739SHYG

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9739HYG Offset STOP/CHECK connectors £444.63 excl. VAT

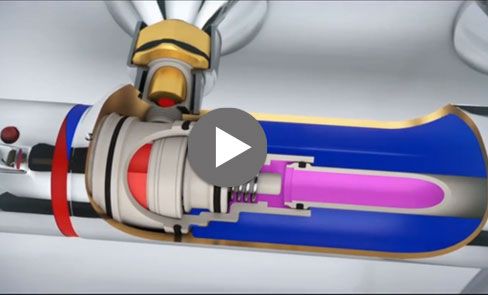

Thermostatic shower mixer: anti-scalding safety and infection control
Thermostatic shower mixer: anti-scalding safety and infection control

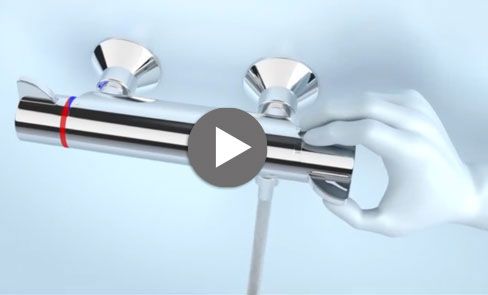

Ergonomic: shower mixer with ergonomic controls which are easy to grip
