TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout

Ref. 20870T3
Single hole infrared tall mixer with stainless steel swivelling spout
TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout

Presentation

DESCRIPTION

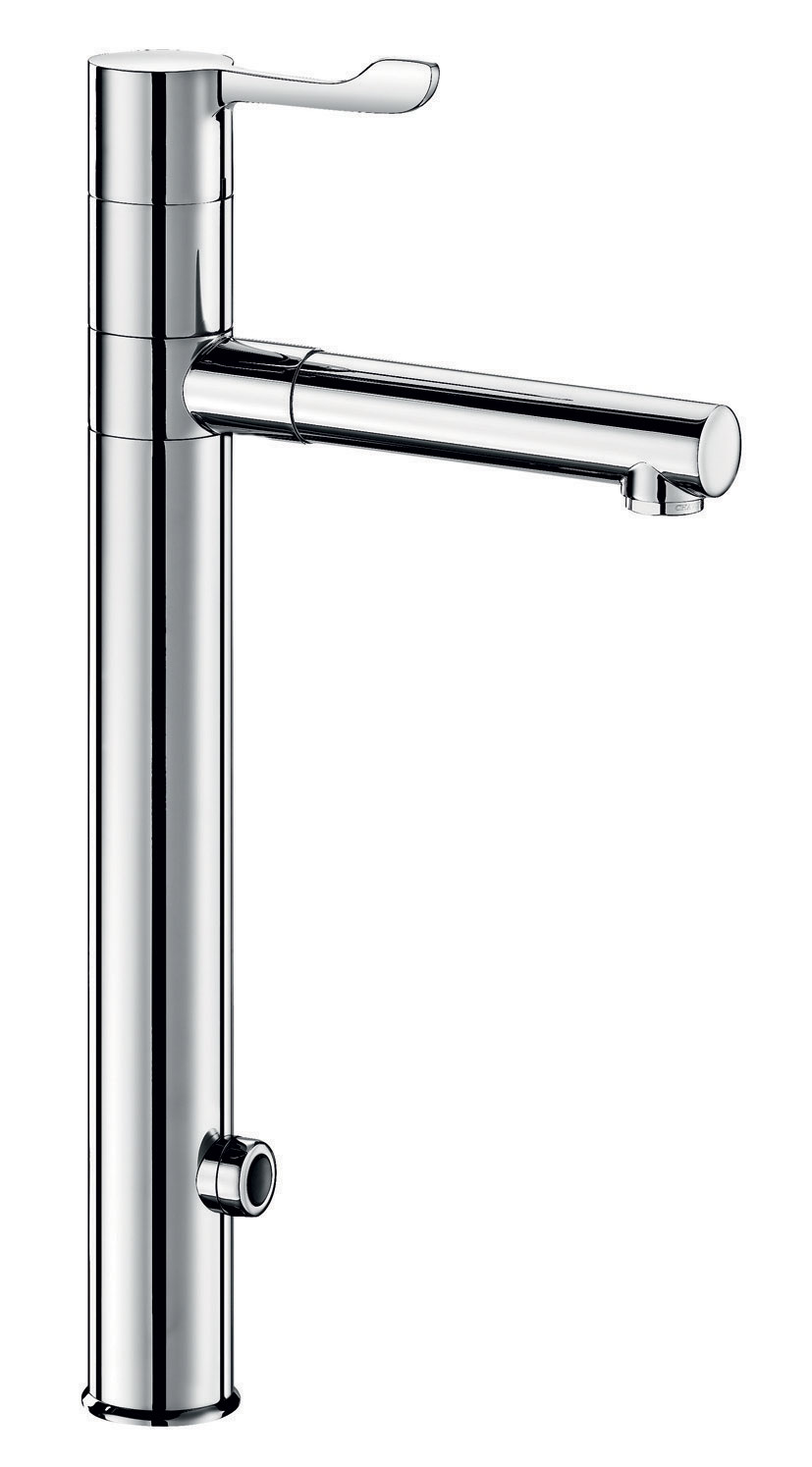

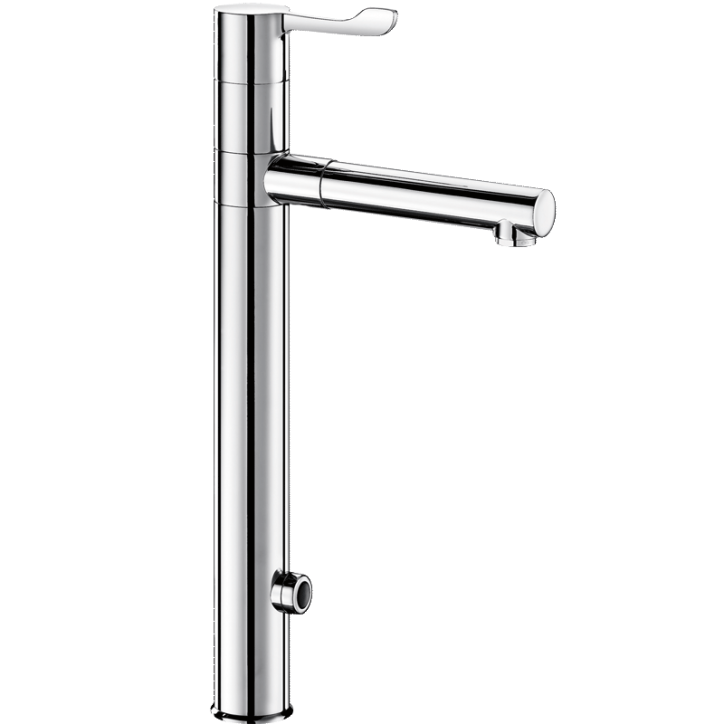

TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout

Ref. 20870T3
Deck-mounted electronic basin mixer.
Electronic mixer with high, removable, swivelling BIOCLIP spout H. 300mm.
Single hole mixer supplied with 2 removable stainless steel spouts L.185mm Ø 28mm.
Independent IP65 electronic control unit.
Mains supply via 230/12V transformer.
Body and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (preset to approx. 60 seconds every 24 hours after last use) to prevent water stagnation in the network in the event of prolonged periods of non-use.
Flow rate limited to 9 lpm at 3 bar.
Shockproof infrared presence detection sensor.
Chrome-plated brass body with reinforced fixing via 2 stainless steel rods.
Hygiene lever L. 100mm controls temperature.
Pex flexibles with filters and M3/8" solenoid valves.
Anti-blocking safety.
Solenoid valves are upstream of the mixing chamber.
Electronic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily after 30 minutes.
Thermal shocks are possible.
Position the sensor to the side of the mixer in the ON/OFF mode.

2024 UK public price excluding VAT: £710.15

ADVANTAGES

Rinçage périodique

Automatic duty flush limits bacterial development

Robinetterie déclipsable

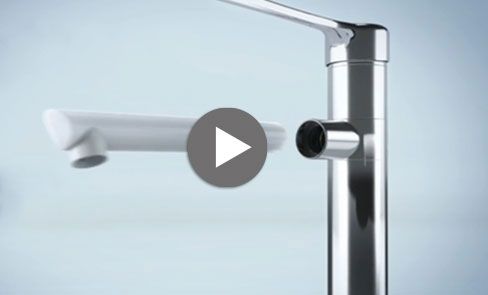

Hygiene: removable spout for internal cleaning

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Economie d'eau

Water saving: split delivery

Characteristics

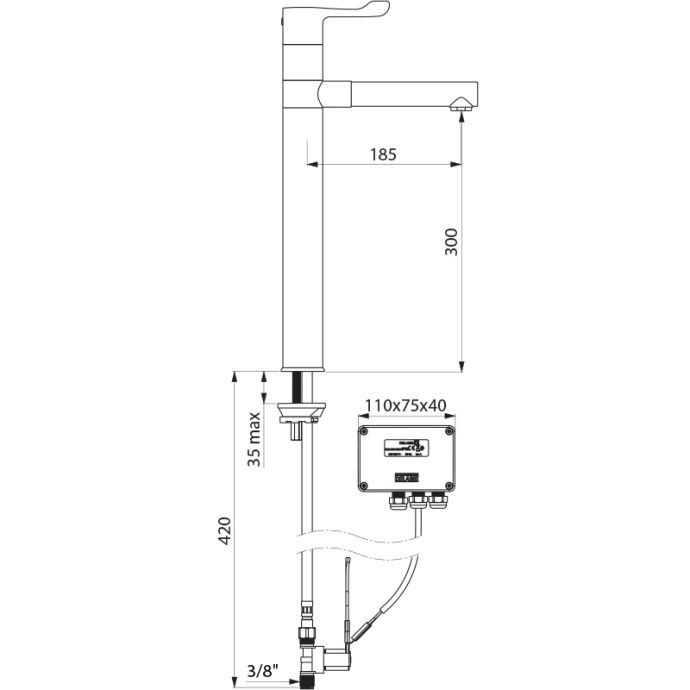

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout

Ref. 20870T3
Supply Mains supply 230/12V
Connector M3/8"
Technology Electronic mixer
Height 420mm
Drop height 300mm
Spout length 185mm
Flow rate 9 lpm at 3 bar
Finish Chrome-plated brass
Certificates ACS Logo CE Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur d'évier automatique TEMPOMATIC MIX

Ref. 20870T3

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

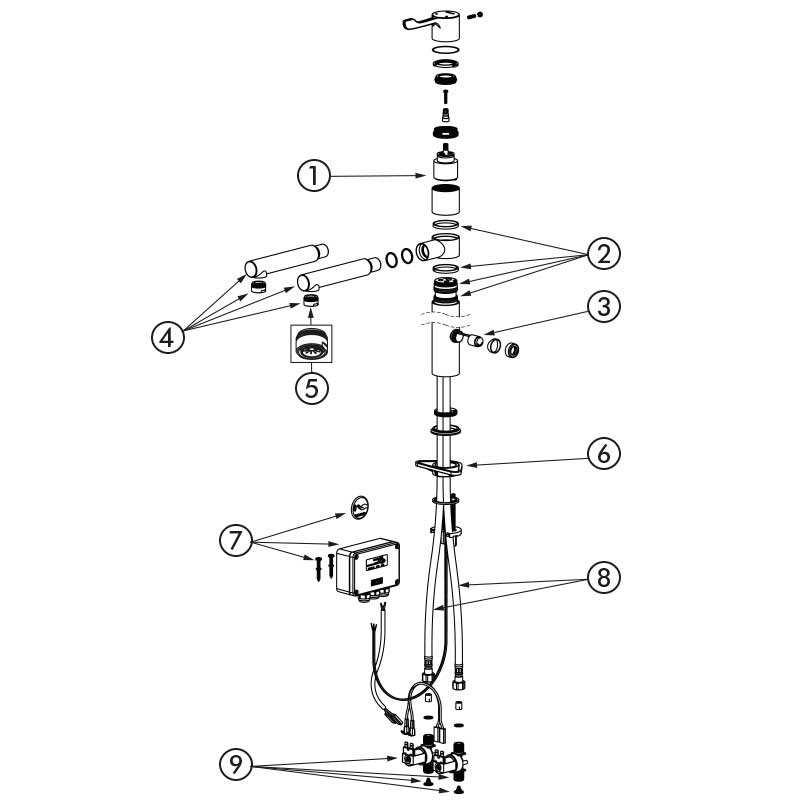

SPARE PARTS

TEMPOMATIC MIX electronic mixer with removable BIOCLIP spout

Ref. 20870T3
1. N201AG75
Ø40mm sequential ceramic cartridge
2. 753256
Replacement O-ring joints
3. CEL378V
Detector
4. 20002
Stainless steel BIOCLIP spout
5. 921024.2P
Star-shaped flow straightener
6. 256P
Fixing plate
7. 2510SES
Locking kit
8. 495445BC
Electronic control unit
9. FLEXPEX4
F3/8" PEX flexible hoses
10. 495612
Solenoid valve

VARIANTS

20164T4 Mains supply - Swivelling spout cannot be removed H. 305mm L. 250mm £636.74 excl. VAT
20464T4 Battery-op. - Swivelling spout cannot be removed H. 305mm L. 250mm £689.81 excl. VAT
