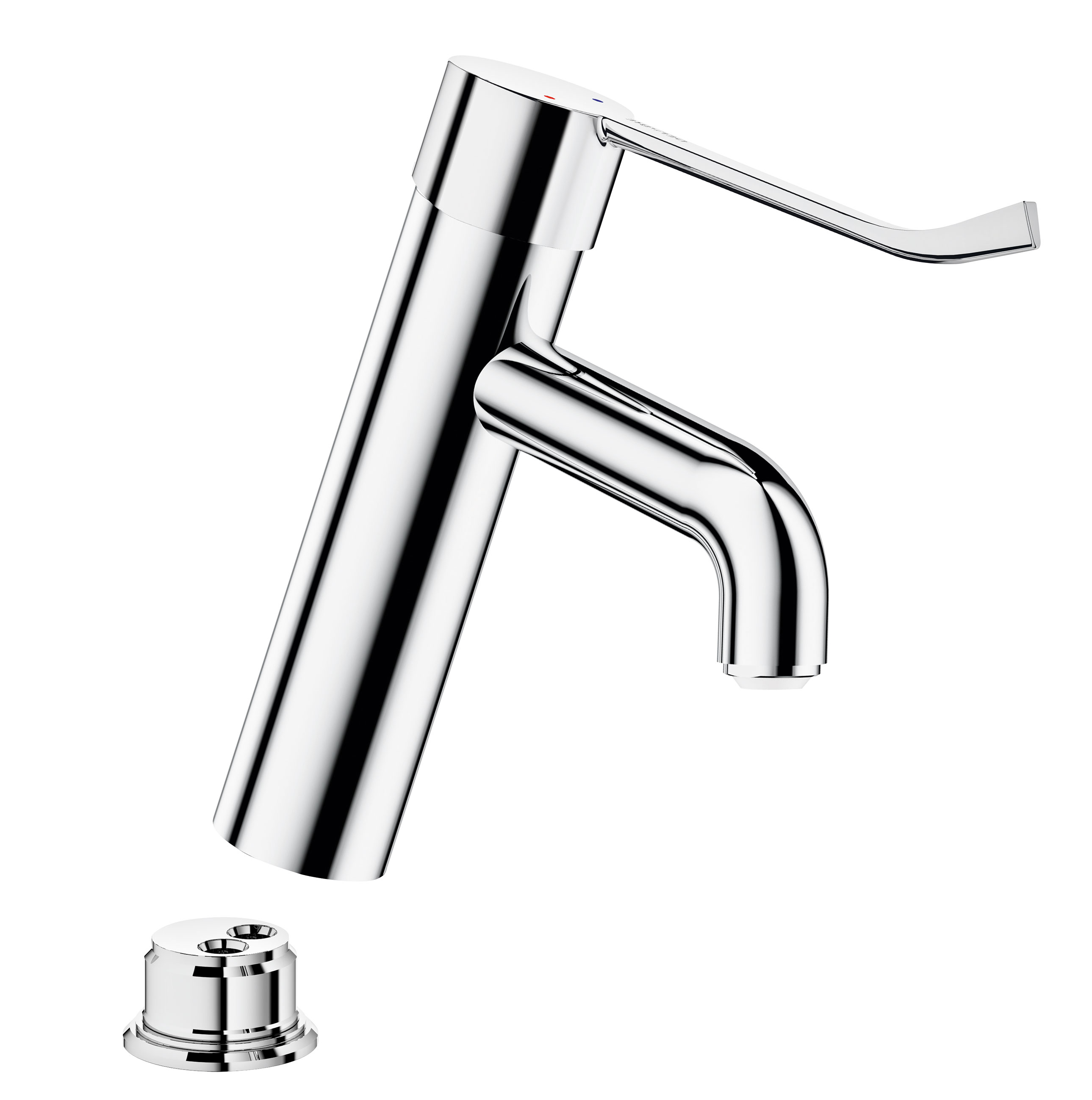

SECURITHERM EP pressure-balancing basin mixer

Ref. 28216LEP
BIOCLIP EP basin mix H95 L120, no waste, Hyg lever, copper
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 28216LEP
Deck-mounted mechanical basin mixer with pressure-balancing.

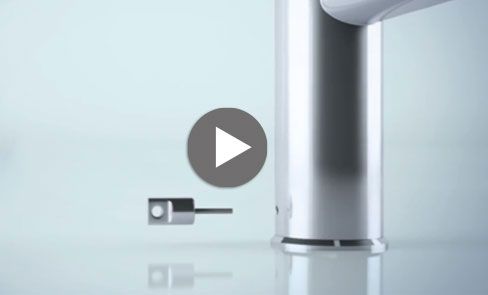

BIOCLIP mechanical mixer: mixer can be removed completely for cleaning and disinfection.
Single hole mixer with straight spout H. 95mm L. 120mm fitted with a hygienic flow straightener.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa)
Stable temperature regardless of pressure and flow rate variations in the system.
Body and spout with smooth interiors and very low water volume.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
Without pop-up waste.
Copper tails supplied with chrome-plated brass stopcocks.
Fixing reinforced by two stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with flexibles PEX.

2024 UK public price excluding VAT: £436.93

ADVANTAGES

Robinetterie déclipsable

Hygiene: remove for internal cleaning

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Hygiene lever for no manual contact

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 28216LEP
Connector 1/2"
Drop height 95mm
Spout length 120mm
Flow rate 5 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo WRAS
Warranty 30-Year
SECURITHERM EP pressure-balancing basin mixer
Ref. 28216LEP

Downloads

DOWNLOADS

Mitigeur de lavabo à équilibrage de pression SECURITHERM EP

Ref. 28216LEP

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

28216L Std cartridge - Hyg lever - no pop-up waste - stopcocks - copper tails £397.13 excl. VAT
2821LEP EP cartridge - Hygiene lever - no waste - stopcocks - flexibles £399.32 excl. VAT
2821TEP EP cartridge - solid lever - no waste - stopcocks - flexibles £385.34 excl. VAT
2820LEP EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles £420.35 excl. VAT
2820TEP EP cartridge - solid lever - pop-up waste - stopcocks - flexibles £406.33 excl. VAT
2821L Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles £357.31 excl. VAT
2821T Standard cartridge - solid lever - no waste - stopcocks - flexibles £343.29 excl. VAT
2820L Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles £378.31 excl. VAT
2820T Std cartridge - solid lever - pop-up waste - stopcocks - flexibles £364.32 excl. VAT
