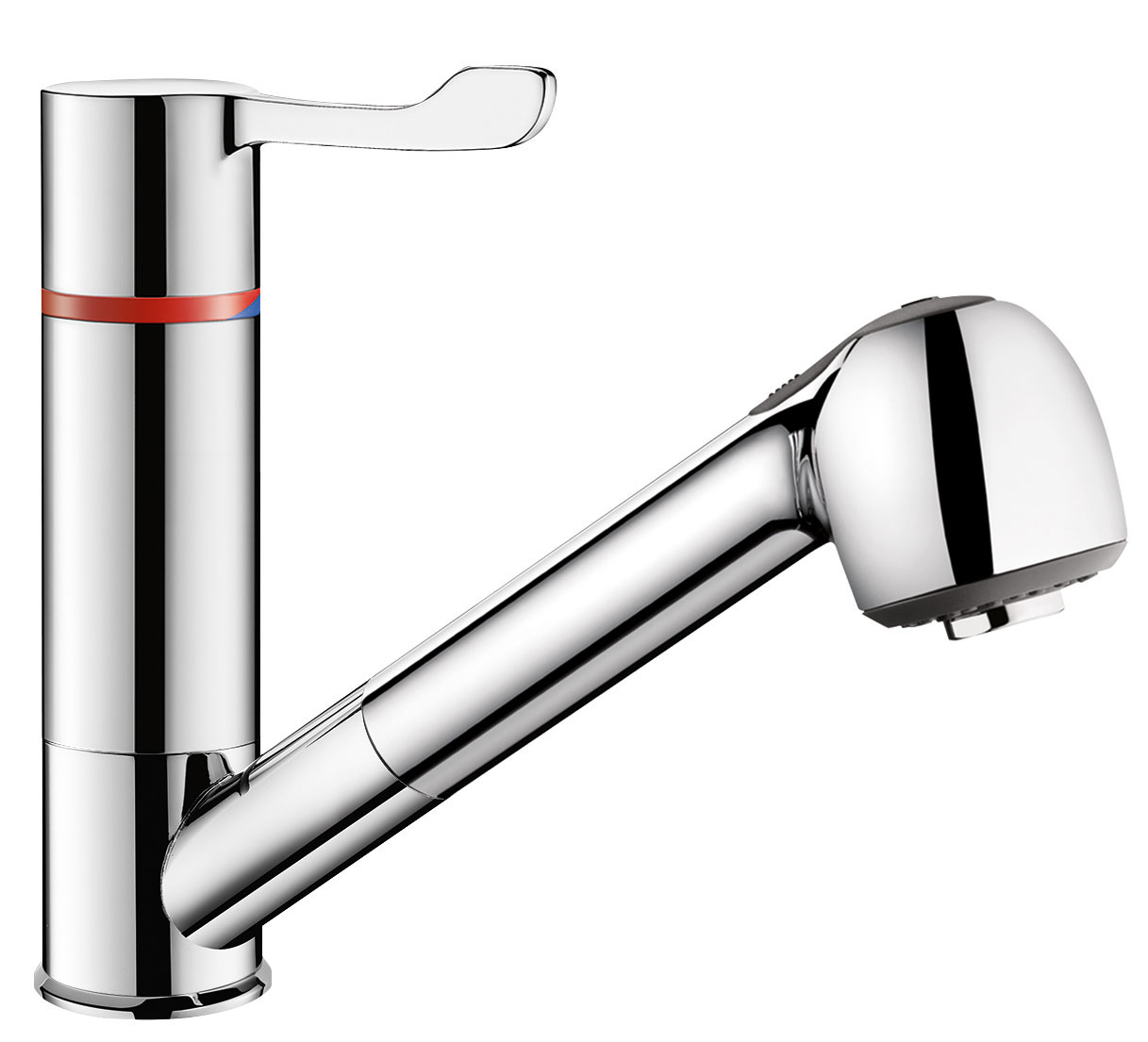

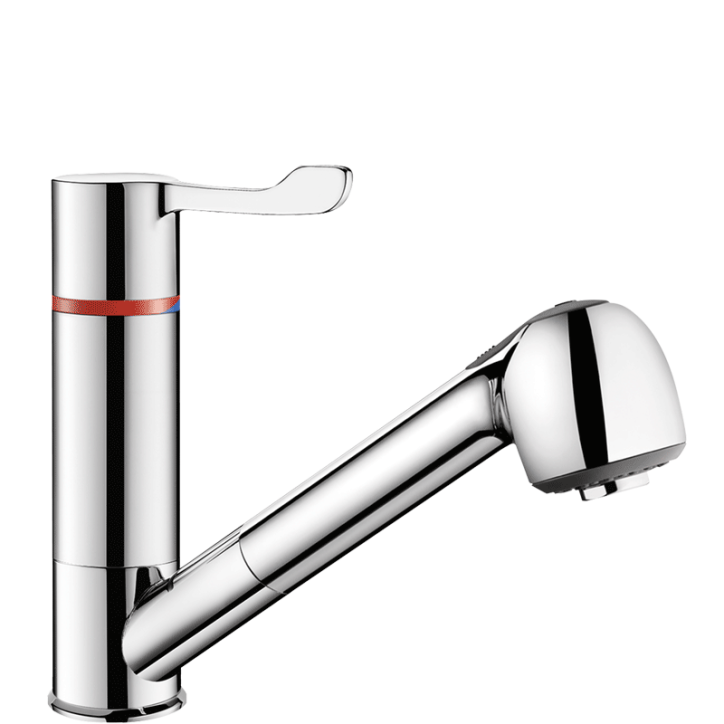

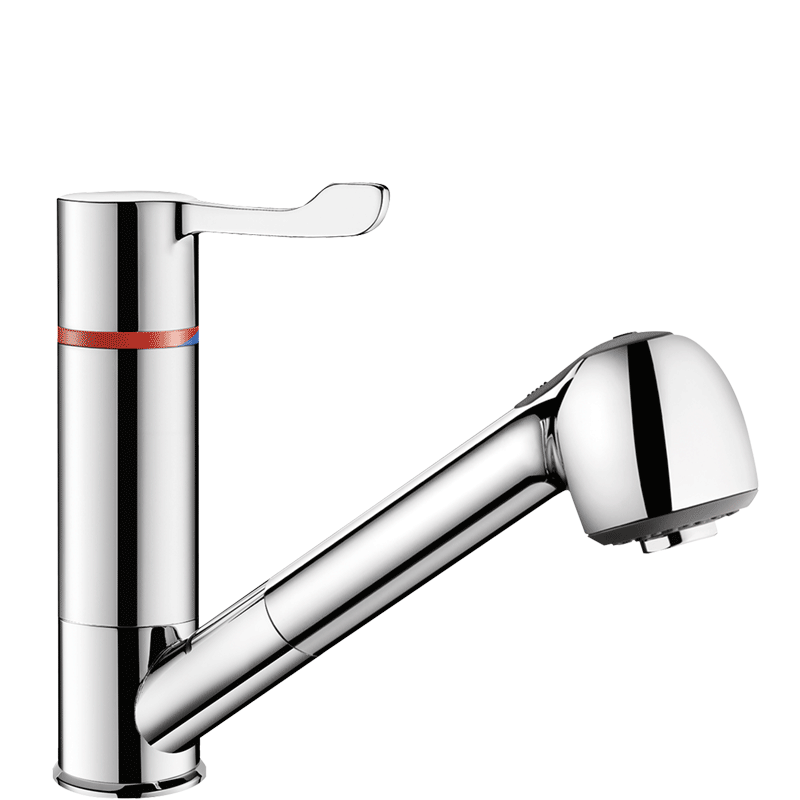

SECURITHERM thermostatic sink mixer

Ref. H9612
Single hole thermostatic mixer with retracting hand spray
SECURITHERM thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM thermostatic sink mixer

Ref. H9612

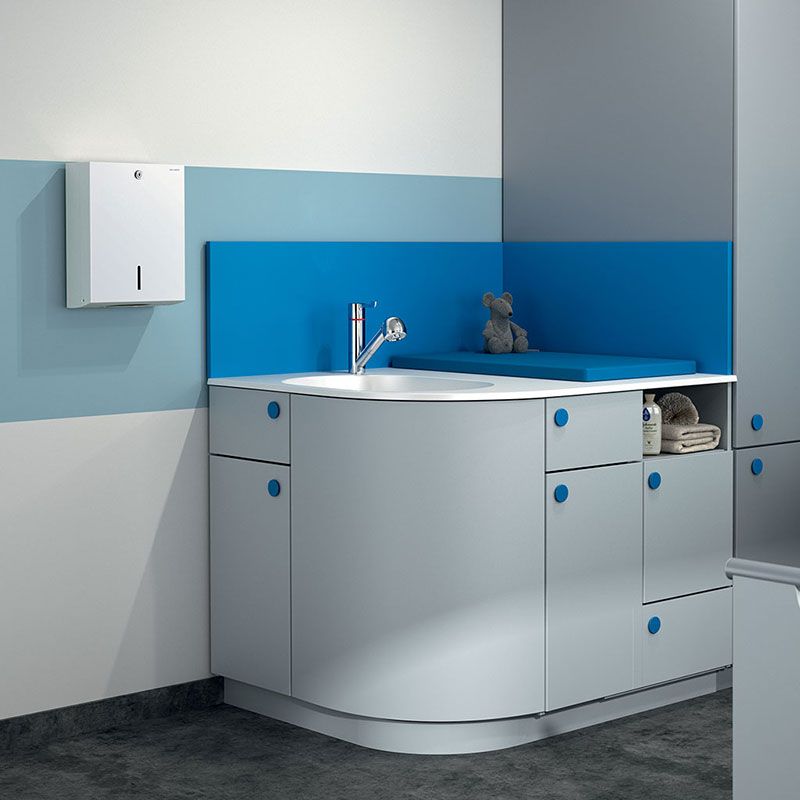

Deck-mounted SECURITHERM thermostatic basin mixer, ideal for baby baths.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.

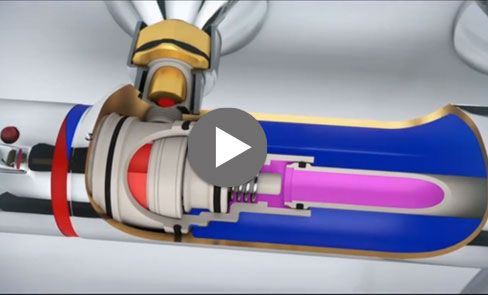

Securitouch thermal insulation prevents burns.
Single hole mixer with swivelling outlet H. 105mm L. 200mm.
Sequential mixer with retracting hand spray with 2 jet options: flow straightener/rain effect.
Scale-resistant sequential thermostatic cartridge for sequential control of the flow rate and temperature.
Temperature control from cold water up to 40°C with maximum temperature limiter set at 40°C.
Body with smooth interior.
Flow rate regulated at 3 lpm.
No manual contact thanks to Hygiene control lever L. 100mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane, smooth interior and exterior.
Flexible with narrow interior Ø 6mm: low water volume.
Specific counterweight.
PEX flexibles F3/8".
Fixing reinforced by 2 stainless steel rods.
Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £488.36

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: Optimal anti-scalding safety

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: transparent flexible with smooth interior

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM thermostatic sink mixer

Ref. H9612
Connector F3/8"
Technology SECURITHERM Securitouch sequential mixer

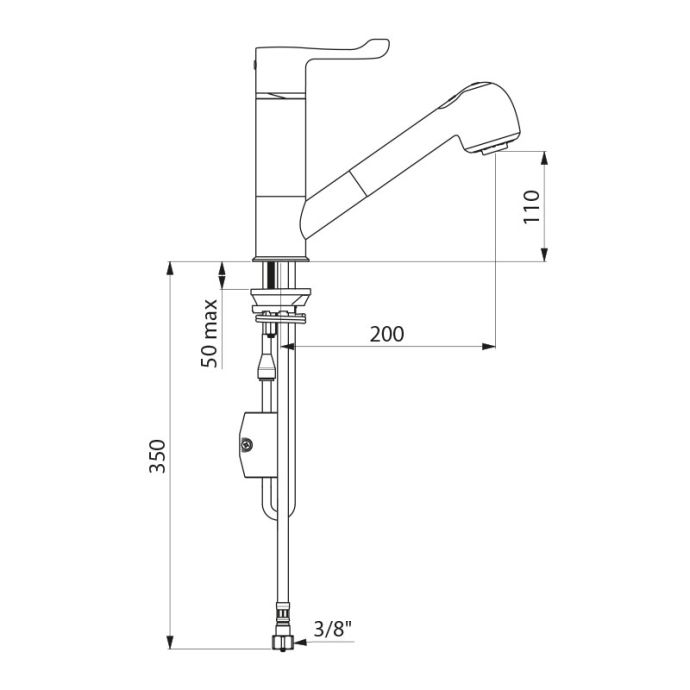

Drop height 105mm
Spout length 200mm
Flow rate 3 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo thermostatique séquentiel à douchette extractible

Ref. H9612

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

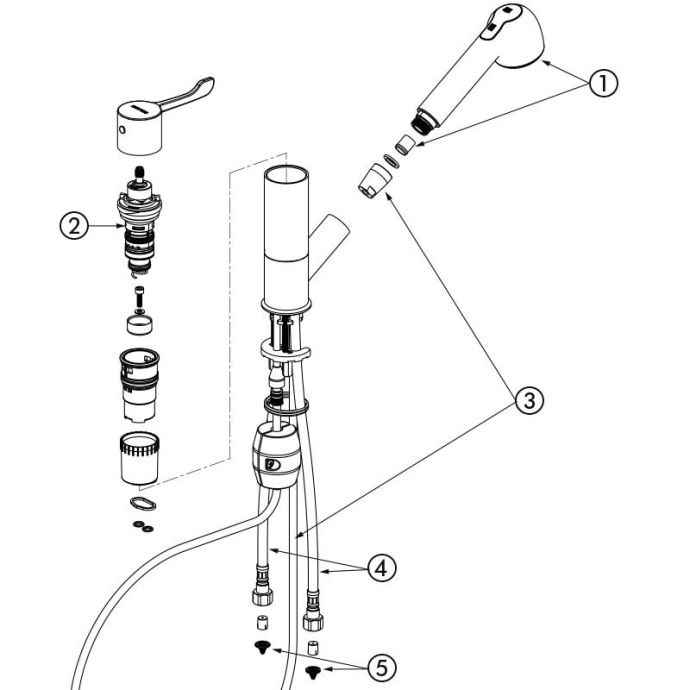

SPARE PARTS

SECURITHERM thermostatic sink mixer

Ref. H9612
1. 817

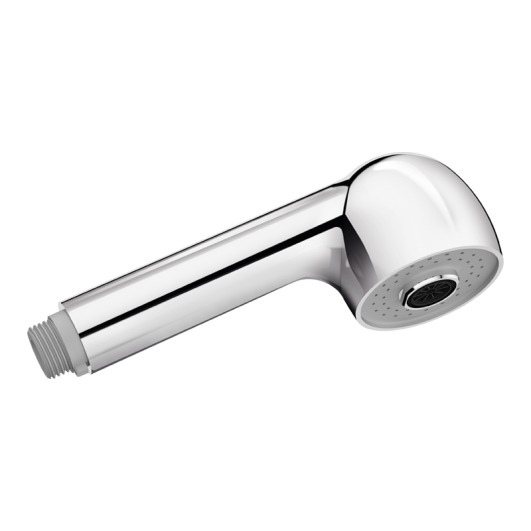

Hand spray with inverter
2. N960
Thermostatic cartridge for basin
3. 837T4
BIOSAFE polyurethane flexible hose
4. 2211CP
Counterweight
5. FLEXPEX2
F3/8" PEX flexible hoses
6. 60438.10P
Conical filter

VARIANTS

H9613 Sequential thermostatic mixer with column £510.20 excl. VAT
H9642 Remote thermostatic mixer £325.08 excl. VAT
