BINOPTIC electronic tap

Ref. 379D13
Mains supply
BINOPTIC electronic tap

Presentation

DESCRIPTION

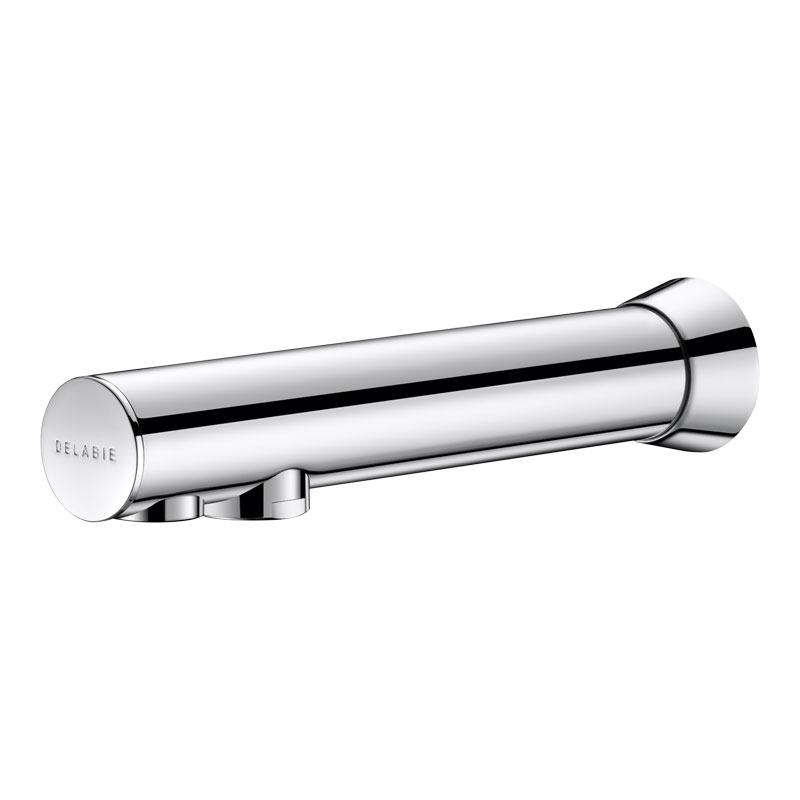

BINOPTIC electronic tap

Ref. 379D13
Cross wall electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.

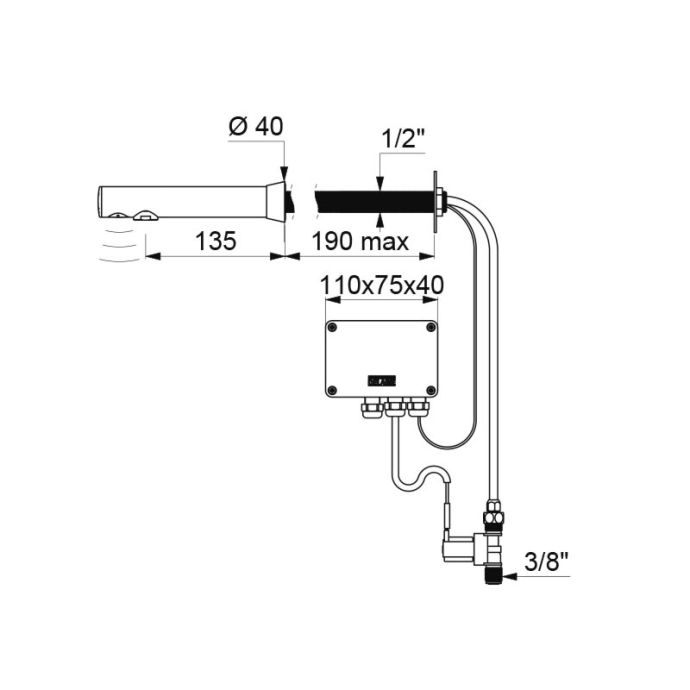

Chrome-plated spout L.135mm for cross wall installation ≤ 190 mm.
Cable for sensor, L. 1.20mm, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Suitable for people with reduced mobility.
30-year warranty.

2024 UK public price excluding VAT: £413.74

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Maintenance aisée - Installation aisée

LED diagnostic aids

Secteur

Independent IP65 electronic unit

Characteristics

TECHNICAL CHARACTERISTICS

BINOPTIC electronic tap

Ref. 379D13
Supply 230/12V mains supply
Connector M3/8"
Technology Electronic
Spout length 135mm
Flow rate 3 lpm
Certificates ACS Logo CE Logo HKWSD Logo PZH Logo WRAS Logo WELS
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Robinet de lavabo automatique BINOPTIC

Ref. 379D13

To download one or several documents linked to this product, please select the type of file you require :

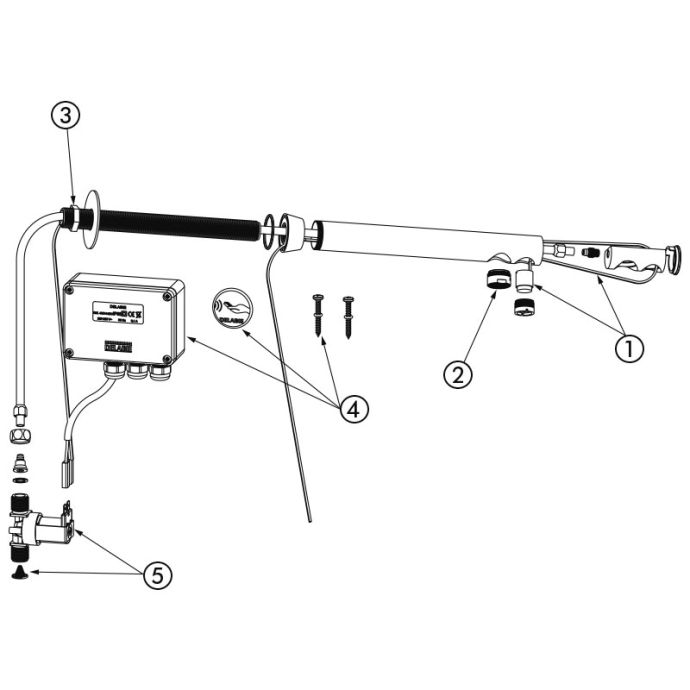

Spare parts

SPARE PARTS

BINOPTIC electronic tap

Ref. 379D13
1. CEL378150V
Detector
2. 922024.2P
ECO flow straightener
3. 826115
Back-nut
4. 495444BC
Electronic control unit
5. 495612
Solenoid valve

VARIANTS

379ENCL Recessed - Spout L. 252mm
379ENC Recessed - Spout L.200mm £424.40 excl. VAT
379ENC15 Recessed - Spout L.200mm - Ø15mm compression fittings £449.62 excl. VAT
379DER For walls from 1 to 190mm - Spout L. 205mm £413.74 excl. VAT
379DER15 For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings £438.23 excl. VAT
379D1315 For walls 1 - 190mm - Spout L. 135mm - Ø15mm compression fittings £438.96 excl. VAT
