DESCRIPTION

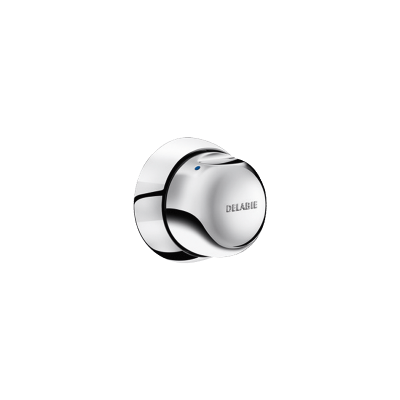

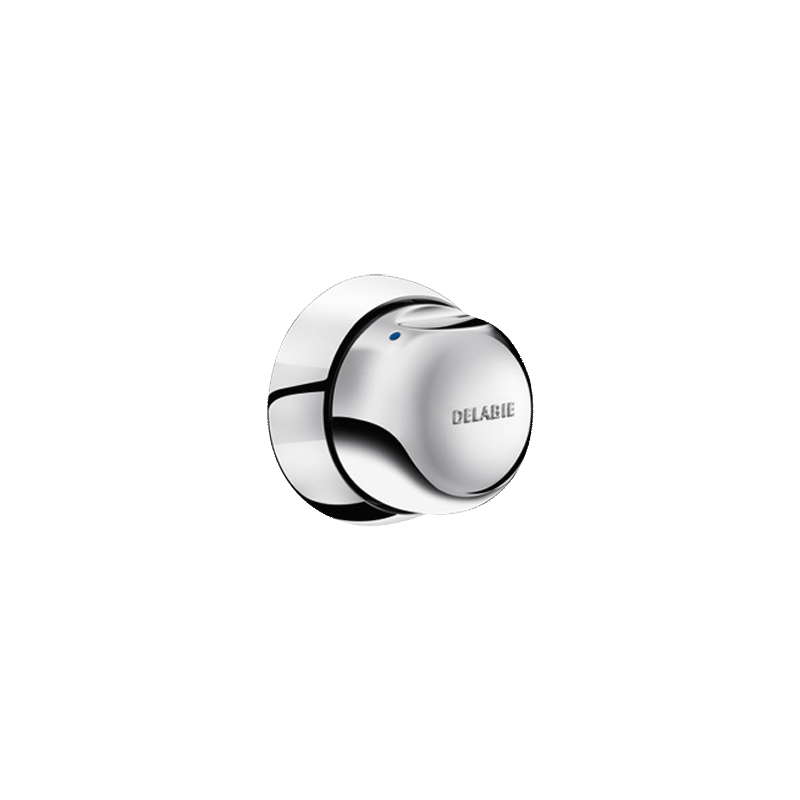

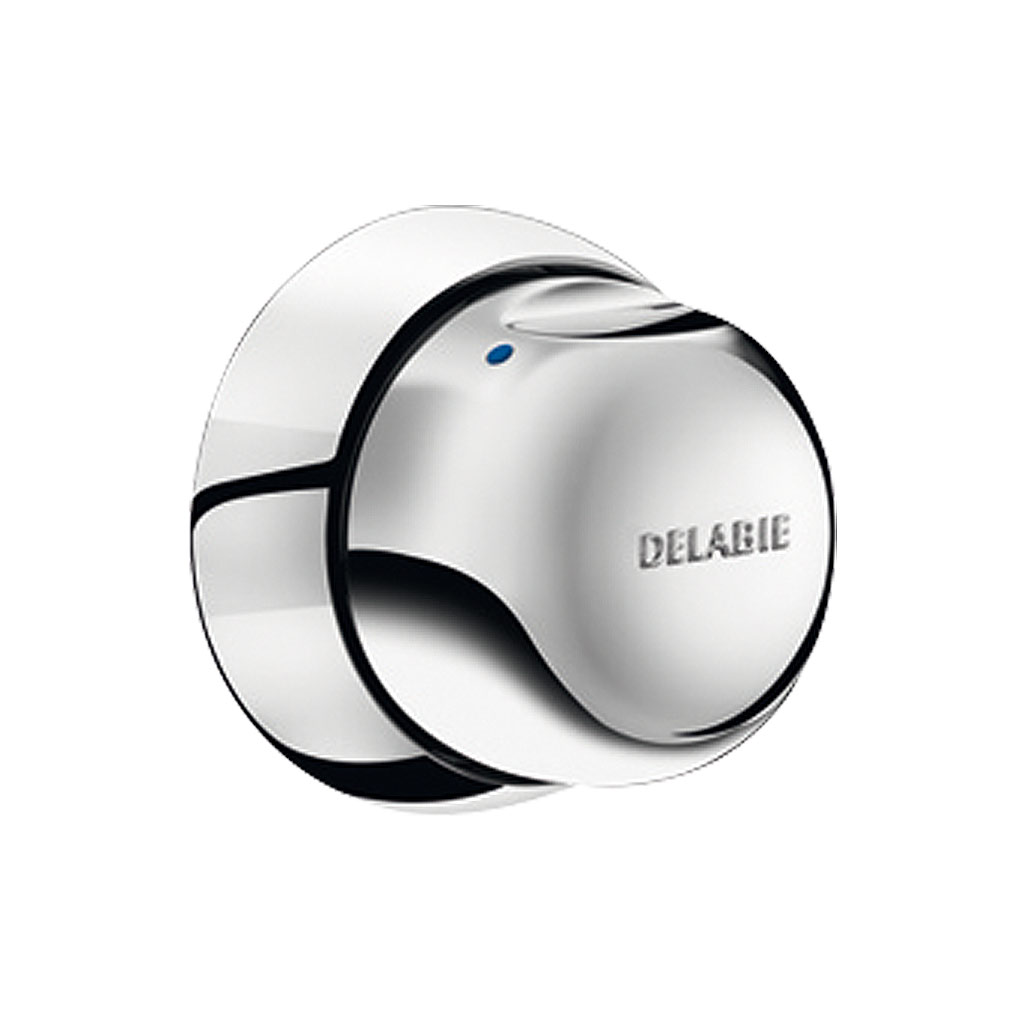

TEMPOMIX time flow shower mixer
Ref. 790970Exposed time flow shower mixer:
TEMPOMIX ¾" single control mixer.
For panels 1 - 10mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
30-year warranty.
TEMPOMIX ¾" single control mixer.
For panels 1 - 10mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
30-year warranty.
2024 UK public price excluding VAT: £275.97
ADVANTAGES
System tested to over 500,000 operations
Soft-touch operation
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer
Ref. 790970| Connector | ¾" |
| Technology | Time flow |
| Flow rate | 12 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 790000 | inline unions 90mm centres, M3/4" | £258.70 excl. VAT | |
|---|---|---|---|
| 790874 | Elbow unions 150mm centres, M3/4" | £325.22 excl. VAT | |
| 790975 | For panels from 8 to 16mm, M3/4" | £275.97 excl. VAT |
