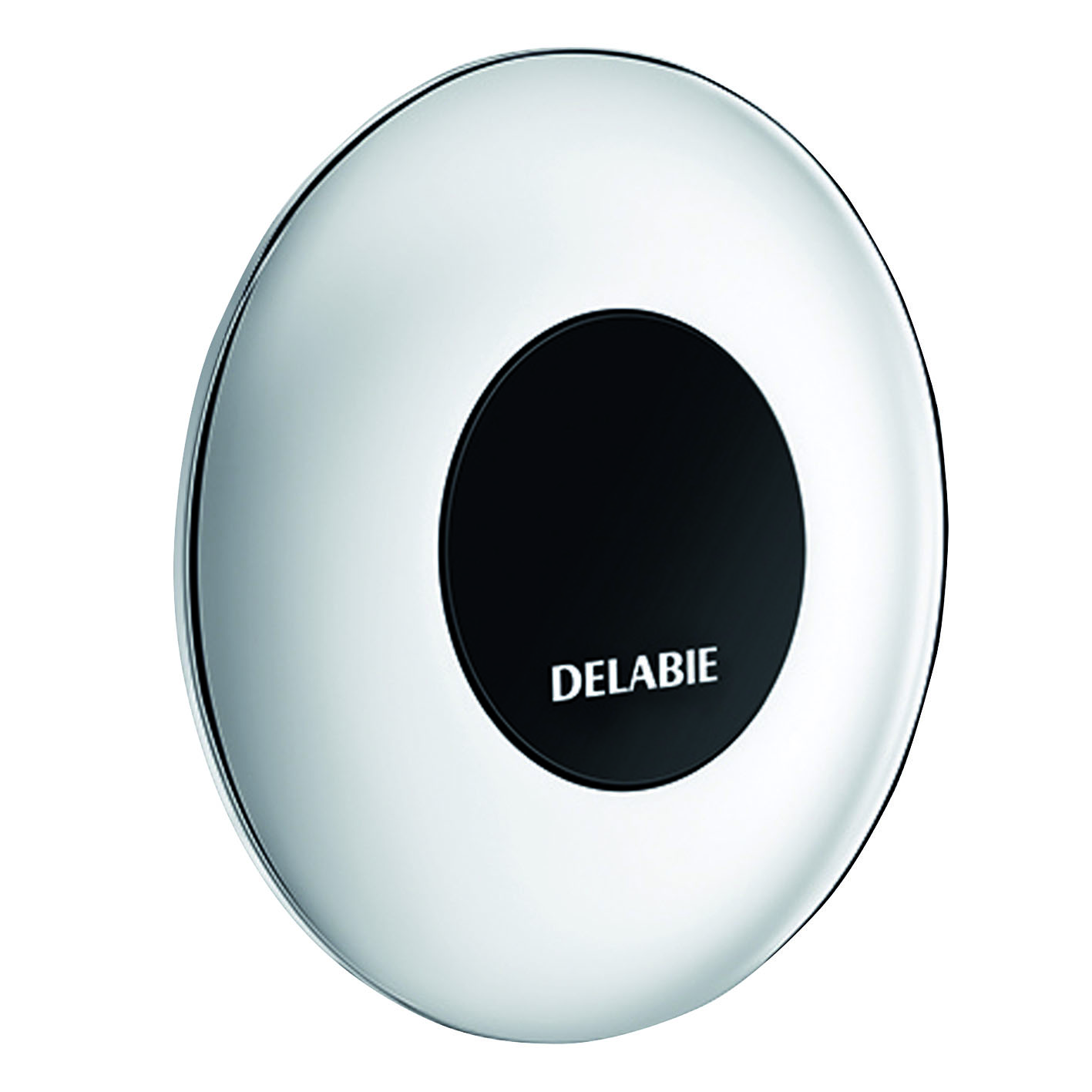

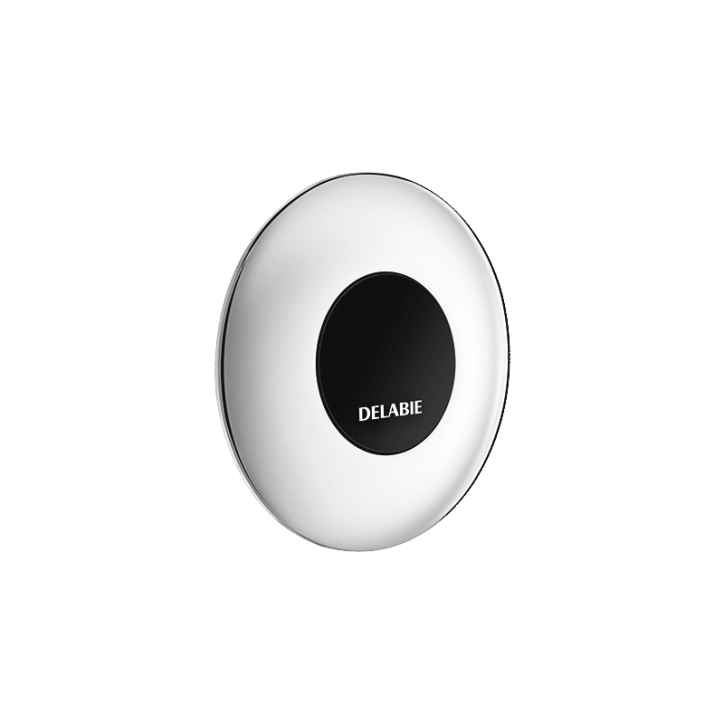

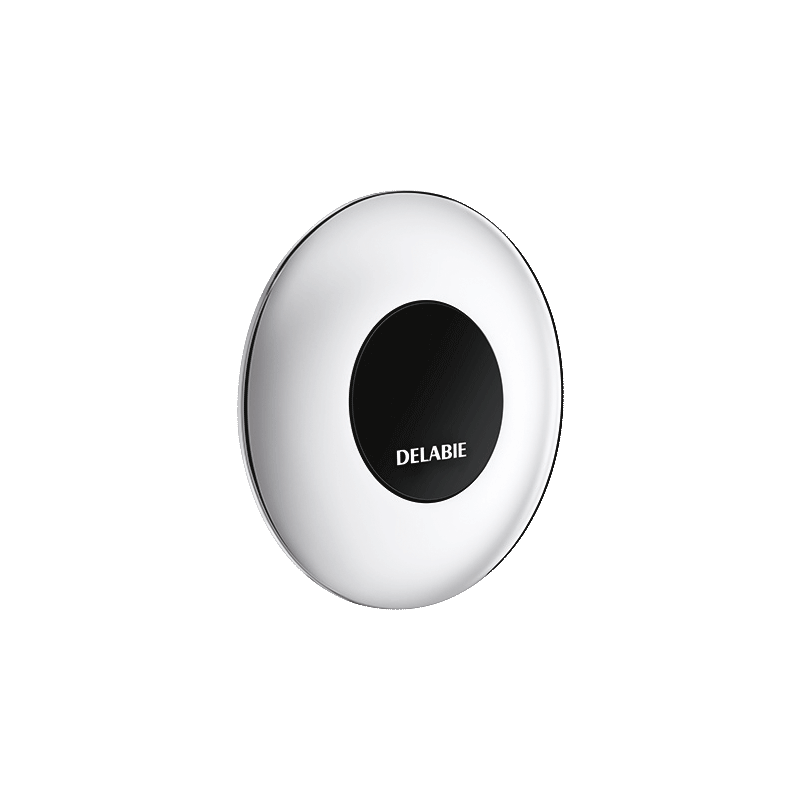

TEMPOMATIC WC direct flush valve

Ref. 463150
Direct flush WC valve
TEMPOMATIC WC direct flush valve

Presentation

DESCRIPTION

TEMPOMATIC WC direct flush valve

Ref. 463150
Flush system without cistern: directly connected to pipework.
Mains supply with 1" solenoid valve.
230/12V transformer.
IP65 independent electronic unit.
For installation on walls ≤ 160 mm.
Shock-resistant infrared presence detection sensor.
Voluntary activation (when hand is detected ~4cm in front of sensor) or automatic flush when user leaves.
Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
Detection distance, flow rate and flush volume can be adjusted.
Stopcock FF1".
Vacuum breaker Ø32mm.
Connection washer Ø 32/55mm.
Wall plate flush to the wall.
Base flow rate: 1 L/sec.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
Threaded rod can be cut to size.
30-year warranty.

2024 UK public price excluding VAT: £828.27

ADVANTAGES

Sans contact manuel

Total hygiene: operate without manual contact

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Confort - Ergonomie - Déclenchement souple

Voluntary or automatic activation

Anti-vandalisme

Cross wall installation

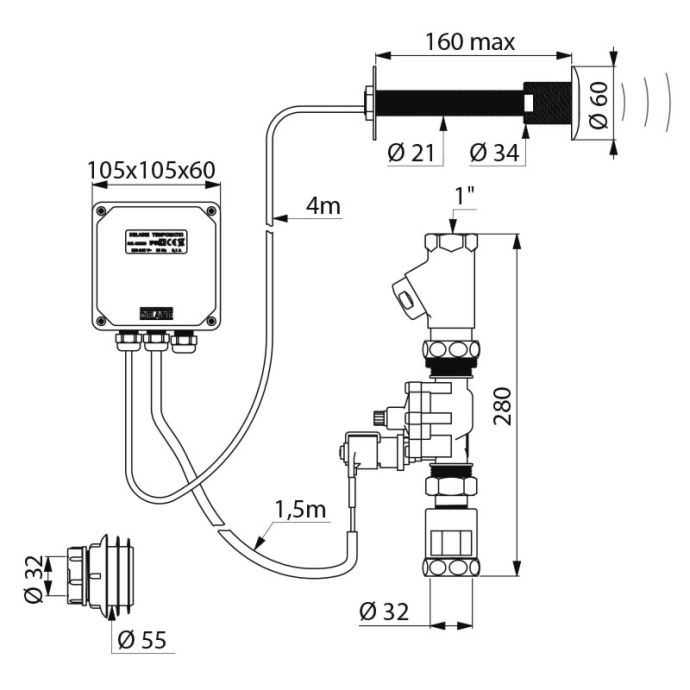

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMATIC WC direct flush valve

Ref. 463150
Supply 230/12V mains supply
Connector 1"
Technology Electronic
Length 160mm
Certificates Logo CE Logo Belgaqua
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Chasse d'eau automatique TEMPOMATIC

Ref. 463150

To download one or several documents linked to this product, please select the type of file you require :

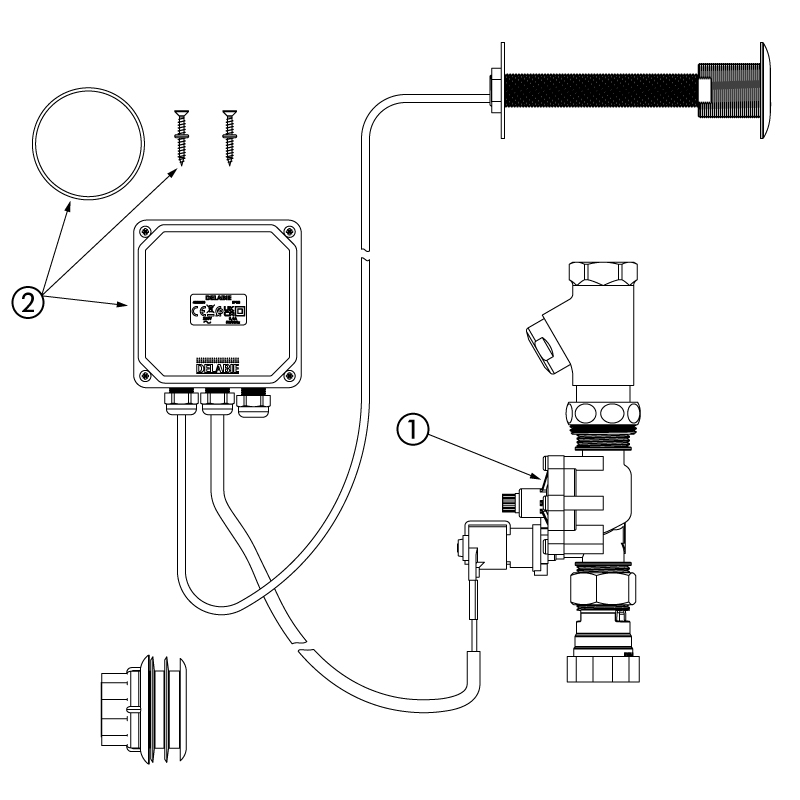

Spare parts

SPARE PARTS

TEMPOMATIC WC direct flush valve

Ref. 463150
1. 463399
Detector
2. 461035
Solenoid valve
3. 463000
Electronic control unit

VARIANTS

463030 Mains supply transformer 230/12V, for walls ≤ 30mm, F1" £828.27 excl. VAT
Discover the advantages of direct flush WC
Discover the advantages of direct flush WC

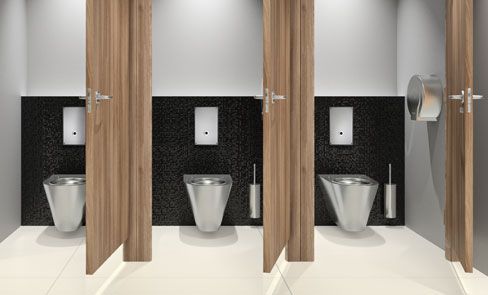

WC direct flush system, a public revolution
