Grab bars /

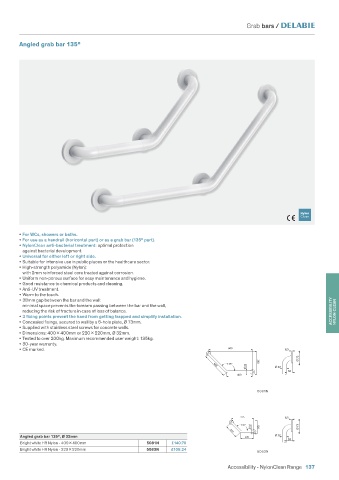

            Angled grab bar 135°








































            • For WCs, showers or baths.
            • For use as a handrail (horizontal part) or as a grab bar (135° part).
            • NylonClean anti-bacterial treatment: optimal protection
             against bacterial development.
            • Universal for either left or right side.
            • Suitable for intensive use in public places or the healthcare sector.
            • High-strength polyamide (Nylon):
             with 2mm reinforced steel core treated against corrosion.
            • Uniform non-porous surface for easy maintenance and hygiene.
            • Good resistance to chemical products and cleaning.
            • Anti-UV treatment.
            • Warm to the touch.
            • 38mm gap between the bar and the wall:
             minimal space prevents the forearm passing between the bar and the wall,
             reducing the risk of fracture in case of loss of balance.                                                    ACCESSIBILITY   NYLON CLEAN
            • 3 fixing points prevent the hand from getting trapped and simplify installation.
            • Concealed fixings, secured to wall by a 6-hole plate, Ø 73mm.
            • Supplied with stainless steel screws for concrete walls.
            • Dimensions: 400 x 400mm or 220 x 220mm, Ø 32mm.
            • Tested to over 200kg. Maximum recommended user weight: 135kg.
            • 10-year warranty.
            • CE marked.                                                             680                 8,5
                                                                                                              Ø 73
                                                                                     135°       283
                                                                                            Ø 32      Ø 32
                                                                                400
                                                                                                          38
                                                                                         400
                                                                                                5081N




                                                                                          375            8,5
                                                                                          135°
                                                                                             Ø 32  156        Ø 73
                                                                                      220
            Angled grab bar 135°, Ø 32mm                                                   220        Ø 32
                                                                                                          38
            Bright white HR Nylon - 400 x 400 mm         5081N   £133.91
            Bright white HR Nylon - 220 x 220 mm         5083N    £117.92
                                                                                                5083N
