P. 56

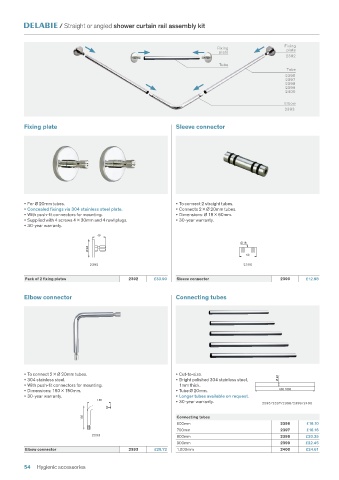

/ Straight or angled shower curtain rail assembly kit


                                                                                                         Fixing
                                                                                 Fixing                   plate
                                                                                  plate
                                                                                                          2392
                                                                                  Tube
                                                                                                          Tube
                                                                                                         2396
                                                                                                         2397
                                                                                                         2398
                                                                                                         2399
                                                                                                         2400
                                                                                                         Elbow
                                                                                                         2393


              Fixing plate                                         Sleeve connector















              • For Ø 20mm tubes.                                  • To connect 2 straight tubes.
              • Concealed fixings via 304 stainless steel plate.   • Connects 2 x Ø 20mm tubes.
              • With push-fit connectors for mounting.             • Dimensions: Ø 18 x 60mm.
              • Supplied with 4 screws 4 x 30mm and 4 rawl plugs.  • 10-year warranty.
              • 10-year warranty.
                                       49
                                                                                          Ø 18
                                    Ø 62
                                                                                            60
                                     2392                                                  2390

              Pack of 2 fixing plates             2392     £32.27  Sleeve connector                     2390     £10.61


              Elbow connector                                      Connecting tubes















              • To connect 2 x Ø 20mm tubes.                       • Cut-to-size.
              • 304 stainless steel.                               • Bright polished 304 stainless steel,   Ø 20
              • With push-fit connectors for mounting.              1mm thick.
              • Dimensions: 150 x 150mm.                           • Tube Ø 20mm.                      600-1000
              • 10-year warranty.                                  • Longer tubes available on request.
                                       150
                                                                   • 10-year warranty.           2396/2397/2398/2399/2400

                                  150                              Connecting tubes
                                                                   600mm                                2396     £15.31
                                                                   700mm                                2397     £17.29
                                     2393                          800mm                                2398     £19.39
                                                                   900mm                                2399     £21.36
              Elbow connector                     2393     £25.43  1,000mm                              2400     £23.42

              54  Hygienic accessories
