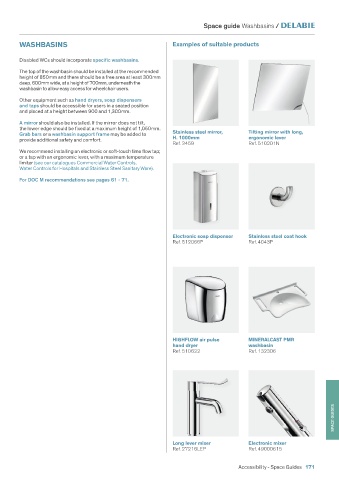

Page 173 - Accessibility-Hygienic-Accessories

Space guide Washbasins /

WASHBASINS Examples of suitable products

Disabled WCs should incorporate specific washbasins.
The top of the washbasin should be installed at the recommended
height of 850mm and there should be a free area at least 300mm
deep, 600mm wide, at a height of 700mm, underneath the
washbasin to allow easy access for wheelchair users.

Other equipment such as hand dryers, soap dispensers
and taps should be accessible for users in a seated position
and placed at a height between 900 and 1,300mm.
A mirror should also be installed. If the mirror does not tilt,
the lower edge should be fixed at a maximum height of 1,050mm.
Grab bars or a washbasin support frame may be added to Stainless steel mirror, Tilting mirror with long,
provide additional safety and comfort. H. 1000mm ergonomic lever
Ref. 3459 Ref. 510201N
We recommend installing an electronic or soft-touch time flow tap;
or a tap with an ergonomic lever, with a maximum temperature
limiter (see our catalogues Commercial Water Controls,
Water Controls for Hospitals and Stainless Steel Sanitary Ware).

For DOC M recommendations see pages 61 - 71.

Electronic soap dispenser Stainless steel coat hook
Ref. 512066P Ref. 4043P

HIGHFLOW air pulse MINERALCAST PMR
hand dryer washbasin
Ref. 510622 Ref. 132306

SPACE GUIDES

Long lever mixer Electronic mixer
Ref. 27216LEP Ref. 49000615

Accessibility - Space Guides 171
