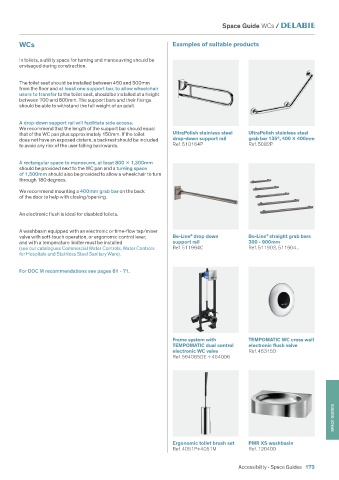

Page 175 - Accessibility-Hygienic-Accessories

Space Guide WCs /

WCs Examples of suitable products

In toilets, a utility space for turning and manoeuvring should be
envisaged during construction.

The toilet seat should be installed between 450 and 500mm
from the floor and at least one support bar, to allow wheelchair
users to transfer to the toilet seat, should be installed at a height
between 700 and 800mm. The support bars and their fixings
should be able to withstand the full weight of an adult.

A drop-down support rail will facilitate side access.
We recommend that the length of the support bar should equal
that of the WC pan plus approximately 150mm. If the toilet UltraPolish stainless steel UltraPolish stainless steel
does not have an exposed cistern, a backrest should be included drop-down support rail grab bar 135°, 400 400mm
to avoid any risk of the user falling backwards. Ref. 510164P Ref. 5082P

A rectangular space to manoeuvre, at least 800 1,300mm
should be provided next to the WC pan and a turning space
of 1,500mm should also be provided to allow a wheelchair to turn
through 180 degrees.
We recommend mounting a 400mm grab bar on the back
of the door to help with closing/opening.

An electronic flush is ideal for disabled toilets.

A washbasin equipped with an electronic or time-flow tap/mixer
®
valve with soft-touch operation, or ergonomic control lever, Be-Line drop down Be-Line straight grab bars
®
and with a temperature limiter must be installed support rail 300 - 900mm
(see our catalogues Commercial Water Controls, Water Controls Ref. 511964C Ref. 511903, 511904...
for Hospitals and Stainless Steel Sanitary Ware).

For DOC M recommendations see pages 61 - 71.

Frame system with TEMPOMATIC WC cross wall
TEMPOMATIC dual control electronic flush valve
electronic WC valve Ref. 463150
Ref. 564065DE + 464006

SPACE GUIDES

Ergonomic toilet brush set PMR XS washbasin
Ref. 4051P+4051M Ref. 120400

Accessibility - Space Guides 173
