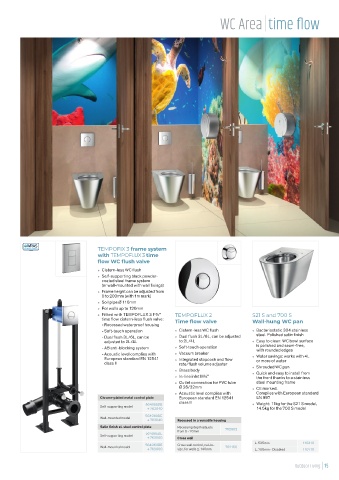

WC Area time flow

TEMPOFIX 3 frame system
with TEMPOFLUX 3 time
flow WC flush valve

X Cistern-less WC flush
X Self-supporting black powder-
coated steel frame system
(or wall-mounted with wall fixings)
X Frame height can be adjusted from
0 to 200mm (with 1m mark)
X Soil pipe Ø 110mm
X For walls up to 120mm
X Fitted with TEMPOFLUX 3 F¾" TEMPOFLUX 2 S21 S and 700 S
time flow cistern-less flush valve: Time flow valve Wall-hung WC pan
- Recessed waterproof housing
- Soft-touch operation X Cistern-less WC flush X Bacteriostatic 304 stainless
- Dual flush 3L/6L, can be X Dual flush 3L/6L, can be adjusted steel. Polished satin finish
adjusted to 2L/4L to 2L/4L X Easy to clean: WC bowl surface
- AB anti-blocking system X Soft-touch operation is polished and seam-free,
with rounded edges
- Acoustic level complies with X Vacuum breaker
X Water savings: works with 4L
European standard EN 12541 Integrated stopcock and flow
X or more of water
class II rate/flush volume adjuster
X Shrouded WC pan
X Brass body
X Quick and easy to install from
X In-line inlet M¾" the front thanks to a stainless
X Outlet connection for PVC tube steel mounting frame
Ø 26/32mm
X CE marked.
X Acoustic level complies with Complies with European standard
Chrome-plated metal control plate European standard EN 12541 EN 997
class II
564065DE X Weight: 11kg for the S21 S model,
Self-supporting model
+ 763040 14.5kg for the 700 S model
564060DE
Wall-mounted model
+ 763040 Recessed in a versatile housing
Satin finish st. steel control plate Recessing depth adjusts 762902
from 0 - 20mm
564065DE
Self-supporting model
+ 763000 Cross wall
L. 535mm 110310
564060DE Cross wall control, cut-to-
Wall-mounted model 762150
+ 763000 size, for walls ≤ 140mm L. 700mm - Disabled 110710
