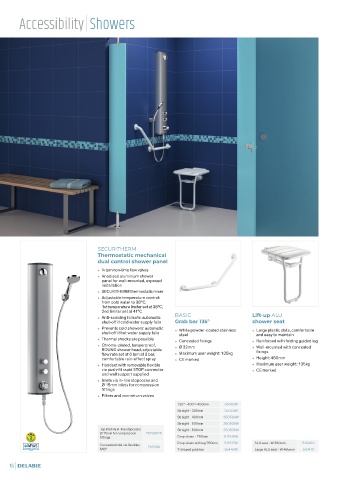

Accessibility  Showers

















































                                        SECURITHERM
                                        Thermostatic mechanical
                                        dual control shower panel

                                        X   ¼ turn non-time flow valves
                                        X   Anodised aluminium shower
                                         panel for wall-mounted, exposed
                                         installation
                                        X   SECURITHERM thermostatic mixer
                                        X   Adjustable temperature control:
                                         from cold water to 38°C;
                                         1st temperature limiter set at 38°C,
                                         2nd limiter set at 41°C
                                                                   BASIC                      Lift-up ALU
                                        X   Anti-scalding failsafe: automatic
                                         shut-off if cold water supply fails   Grab bar 135°  shower seat
                                        X   Prevents cold showers: automatic   X   White powder-coated stainless   X   Large plastic slats, comfortable
                                         shut-off if hot water supply fails
                                                                    steel                      and easy to maintain
                                        X   Thermal shocks are possible    Concealed fixings     Reinforced with folding guided leg
                                                                   X                          X
                                        X   Chrome-plated, tamperproof,     Ø 32mm              Wall-mounted with concealed
                                         ROUND shower head, adjustable   X                    X  fixings
                                         flow rate set at 6 lpm at 3 bar,   X   Maximum user weight: 135kg
                                         comfortable rain-effect spray  X   CE marked         X   Height: 480mm
                                        X   Handset with removable flexible                    X   Maximum user weight: 135kg
                                         via push-fit rapid STOP connector                     X   CE marked
                                         and wall support supplied
                                        X   Inlets via in-line stopcocks and
                                         Ø 15mm inlets for compression
                                         fittings
                                        X   Filters and non-return valves
                                                                    135° - 400   400mm   35082W
                                                                    Straight - 300mm   35050W
                                                                    Straight - 400mm   350504W
                                                                    Straight - 500mm   350505W
                                        Top inlet via in-line stopcocks   Straight - 600mm   350506W
                                        Ø 15mm for compression   79239015
                                        fittings                     Drop-down - 760mm   511516W
                                                                    Drop-down with leg 760mm  511517W  ALU seat - W.360mm   510400
                                        Concealed inlet via flexibles   792380
                                        M½"                         T-shaped grab bar   35440W  Large ALU seat - W.465mm   510410
