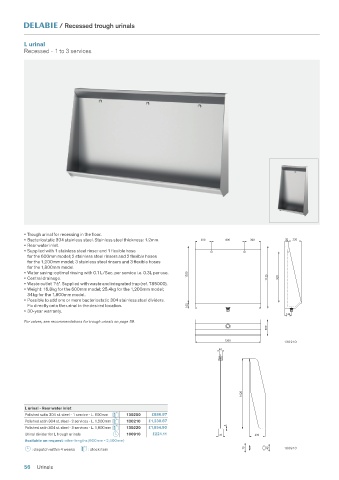

Page 58 - Stainless_Steel_Sanitary_Ware

/ Recessed trough urinals

L urinal
Recessed - 1 to 3 services

• Trough urinal for recessing in the floor.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm. 300 600 300 70 230
• Rear water inlet.
• Supplied with 1 stainless steel rinser and 1 flexible hose
for the 600mm model; 2 stainless steel rinsers and 2 flexible hoses
for the 1,200mm model; 3 stainless steel rinsers and 3 flexible hoses
for the 1,800mm model.
• Water saving: optimal rinsing with 0.1 L/Sec. per service i.e. 0.3L per use. 1020
• Central drainage. 1125 920
• Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
• Weight: 16.8kg for the 600mm model; 25.4kg for the 1,200mm model;
34kg for the 1,800mm model.
• Possible to add one or more bacteriostatic 304 stainless steel dividers.
Fix directly onto the urinal in the desired location. 105
• 30-year warranty.
120
For valves, see recommendations for trough urinals on page 59.
300

1200
130210
40
3

1020

L urinal - Rear water inlet
Polished satin 304 st. steel - 1 service - L. 600mm 130200 £886.97
Polished satin 304 st. steel - 2 services - L. 1,200mm 130210 £1,230.87
Polished satin 304 st. steel - 3 services - L. 1,800mm 130220 £1,654.90 4
Urinal divider for L trough urinals 100910 £224.11 70 230
Available on request: other lengths (600mm - 2,400mm)
: dispatch within 4 weeks : stock item 70 40 100910

56 Urinals
