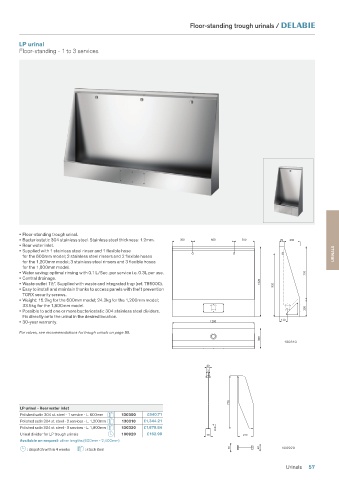

Page 59 - Stainless_Steel_Sanitary_Ware

Floor-standing trough urinals /

LP urinal
Floor-standing - 1 to 3 services

• Floor-standing trough urinal.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm. 300 600 300 70 230
• Rear water inlet.
• Supplied with 1 stainless steel rinser and 1 flexible hose
for the 600mm model; 2 stainless steel rinsers and 2 flexible hoses URINALS
for the 1,200mm model; 3 stainless steel rinsers and 3 flexible hoses
for the 1,800mm model.
• Water saving: optimal rinsing with 0.1 L/Sec. per service i.e. 0.3L per use. 770
• Central drainage.
• Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000). 1020 920
• Easy to install and maintain thanks to access panels with theft prevention
TORX security screws.
• Weight: 15.2kg for the 600mm model; 24.2kg for the 1,200mm model;
33.5kg for the 1,800mm model.
• Possible to add one or more bacteriostatic 304 stainless steel dividers. 250
Fix directly onto the urinal in the desired location.
• 30-year warranty. 1200 120
For valves, see recommendations for trough urinals on page 59.
300
130310

40
3

770
LP urinal - Rear water inlet
Polished satin 304 st. steel - 1 service - L. 600mm 130300 £940.71
Polished satin 304 st. steel - 2 services - L. 1,200mm 130310 £1,344.21
4
Polished satin 304 st. steel - 3 services - L. 1,800mm 130320 £1,679.84
Urinal divider for LP trough urinals 100920 £162.99 70 230
Available on request: other lengths (600mm - 2,400mm)
: dispatch within 4 weeks : stock item 70 40 100920

Urinals 57
