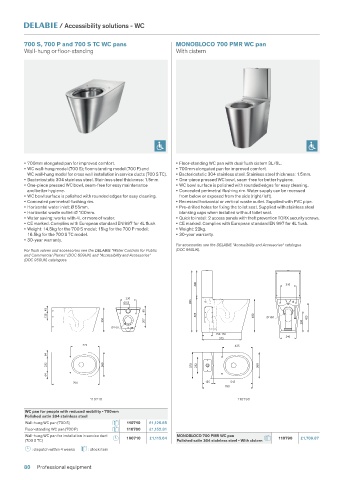

Page 82 - Stainless_Steel_Sanitary_Ware
P. 82

/ Accessibility solutions - WC


              700 S, 700 P and 700 S TC WC pans                    MONOBLOCO 700 PMR WC pan
              Wall-hung or floor-standing                           With cistern























              • 700mm elongated pan for improved comfort.          • Floor-standing WC pan with dual flush cistern 3L/6L.
              • WC wall-hung model (700 S); floor-standing model (700 P) and    • 700mm elongated pan for improved comfort.
               WC wall-hung model for cross wall installation in service ducts (700 S TC).   • Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.5mm.
              • Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.5mm.  • One-piece pressed WC bowl, seam-free for better hygiene.
              • One-piece pressed WC bowl, seam-free for easy maintenance    • WC bowl surface is polished with rounded edges for easy cleaning.
               and better hygiene.                                 • Concealed perimetral flushing rim. Water supply can be recessed
              • WC bowl surface is polished with rounded edges for easy cleaning.  from below or exposed from the side (right/left).
              • Concealed perimetral flushing rim.                 • Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
              • Horizontal water inlet: Ø 55mm.                    • Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel
              • Horizontal waste outlet: Ø 100mm.                   blanking caps when installed without toilet seat.
              • Water saving: works with 4L or more of water.      • Quick to install: 2 access panels with theft prevention TORX security screws.
              • CE marked. Complies with European standard EN 997 for 4L flush.  • CE marked. Complies with European standard EN 997 for 4L flush.
              • Weight: 14.5kg for the 700 S model; 15kg for the 700 P model;   • Weight: 22kg.
               16.5kg for the 700 S TC model.                      • 30-year warranty.
              • 30-year warranty.
                                                                   For accessories see the DELABIE "Accessibility and Accessories" catalogue
              For flush valves and accessories see the DELABIE "Water Controls for Public   (DOC 950UK).
              and Commercial Places" (DOC 609UK) and "Accessibility and Accessories"
              (DOC 950UK) catalogues.



                                                                          390                             230


                                                 230
                                                 Ø 55                   895
                      45                                80
                      135                                                 505                 480  Ø 100         425
                                         350            207                                                    300
                                            Ø 100
                                                                                 150-170
                                                                                                          240
                                                                                  575
                                                                                       425
                                  425                                                   425
                      64
                      232                360                            370  232                360
                      64
                               700                                           155      545
                                                                                    700

                                     110710                                             110790
              WC pan for people with reduced mobility - 700mm
              Polished satin 304 stainless steel
              Wall-hung WC pan (700 S)            110710   £1,126.65
              Floor-standing WC pan (700 P)       110700   £1,152.81
              Wall-hung WC pan for installation in service duct    160710  MONOBLOCO 700 PMR WC pan    110790
              (700 S TC)                                  £1,115.64   Polished satin 304 stainless steel - With cistern  £1,789.87
                 : dispatch within 4 weeks   : stock item
