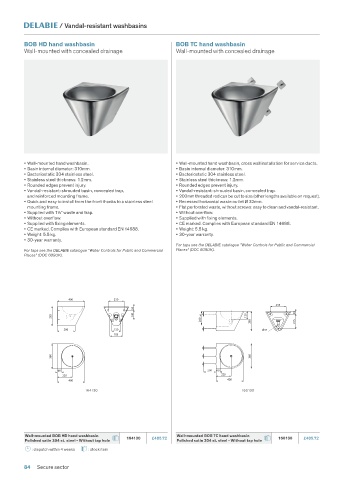

Page 86 - Stainless_Steel_Sanitary_Ware
P. 86

/ Vandal-resistant washbasins


              BOB HD hand washbasin                                BOB TC hand washbasin
              Wall-mounted with concealed drainage                 Wall-mounted with concealed drainage























              • Wall-mounted hand washbasin.                       • Wall-mounted hand washbasin, cross wall installation for service ducts.
              • Basin internal diameter: 310mm.                    • Basin internal diameter: 310mm.
              • Bacteriostatic 304 stainless steel.                • Bacteriostatic 304 stainless steel.
              • Stainless steel thickness: 1.2mm.                  • Stainless steel thickness: 1.2mm.
              • Rounded edges prevent injury.                      • Rounded edges prevent injury.
              • Vandal-resistant: shrouded basin, concealed trap,   • Vandal-resistant: shrouded basin, concealed trap.
               and reinforced mounting frame.                      • 200mm threaded rod can be cut to size (other lengths available on request).
              • Quick and easy to install from the front thanks to a stainless steel   • Recessed horizontal waste outlet Ø 32mm.
               mounting frame.                                     • Flat perforated waste, without screws: easy to clean and vandal-resistant.
              • Supplied with 1½” waste and trap.                  • Without overflow.
              • Without overflow.                                  • Supplied with fixing elements.
              • Supplied with fixing elements.                     • CE marked. Complies with European standard EN 14688.
              • CE marked. Complies with European standard EN 14688.  • Weight: 5.5 kg.
              • Weight: 5.5 kg.                                    • 30-year warranty.
              • 30-year warranty.
                                                                   For taps see the DELABIE catalogue "Water Controls for Public and Commercial
              For taps see the DELABIE catalogue "Water Controls for Public and Commercial   Places" (DOC 609UK).
              Places" (DOC 609UK).








                             400             230
                                                                                                      235
                                                    55
                                                                                                             40
                       285                          140                     200  ±5         120  285         215

                            260              130                                                 Ø32
                                             185


                       360                                                                   360


                          60                                                  200  60
                           220                                                     220
                             400                                                     400
                                   164130                                                 160130








              Wall-mounted BOB HD hand washbasin   164130          Wall-mounted BOB TC hand washbasin   160130
              Polished satin 304 st. steel - Without tap hole   £485.72   Polished satin 304 st. steel - Without tap hole   £485.72
                 : dispatch within 4 weeks   : stock item

              84  Secure sector
   81   82   83   84   85   86   87   88   89   90   91
