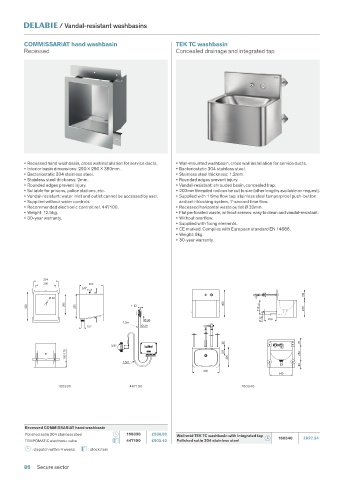

Page 88 - Stainless_Steel_Sanitary_Ware
P. 88

/ Vandal-resistant washbasins


              COMMISSARIAT hand washbasin                          TEK TC washbasin
              Recessed                                             Concealed drainage and integrated tap























              • Recessed hand washbasin, cross wall installation for service ducts.  • Wall-mounted washbasin, cross wall installation for service ducts.
              • Interior basin dimensions: 290 x 290 x 350mm.      • Bacteriostatic 304 stainless steel.
              • Bacteriostatic 304 stainless steel.                • Stainless steel thickness: 1.2mm.
              • Stainless steel thickness: 2mm.                    • Rounded edges prevent injury.
              • Rounded edges prevent injury.                      • Vandal-resistant: shrouded basin, concealed trap.
              • Suitable for prisons, police stations, etc.        • 200mm threaded rod can be cut to size (other lengths available on request).
              • Vandal-resistant: water inlet and outlet cannot be accessed by user.  • Supplied with 1 time flow tap: stainless steel tamperproof push-button
              • Supplied without water controls.                    and anti-blocking system, 7-second time flow.
              • Recommended electronic control: ref. 447100.       • Recessed horizontal waste outlet Ø 32mm.
              • Weight: 12.5kg.                                    • Flat perforated waste, without screws: easy to clean and vandal-resistant.
              • 30-year warranty.                                  • Without overflow.
                                                                   • Supplied with fixing elements.
                                                                   • CE marked. Complies with European standard EN 14688.
                                                                   • Weight: 9kg.
                                                                   • 30-year warranty.







                    354
                    290             350
                                  3/8"
                                                                                                                150
                      Ø 30
               420          295  355               1-12                             400         210  ±5         250

                                                        Ø 36                                     Ø 32  200
                                                1,5m
                                    1½"                Ø 29


                                                                                    20                         70
                                            3/8"
                            100-170                                                 105  295                   250
                                                1,5m
                                                                                                               80
                                                                             400
                                                                                                       340
                          160330                   447100                                 160340







              Recessed COMMISSARIAT hand washbasin
              Polished satin 304 stainless steel  160330   £589.80   Wall-mtd TEK TC washbasin with integrated tap
              TEMPOMATIC electronic valve         447100   £503.40   Polished satin 304 stainless steel  160340   £922.34
                 : dispatch within 4 weeks   : stock item

              86  Secure sector
