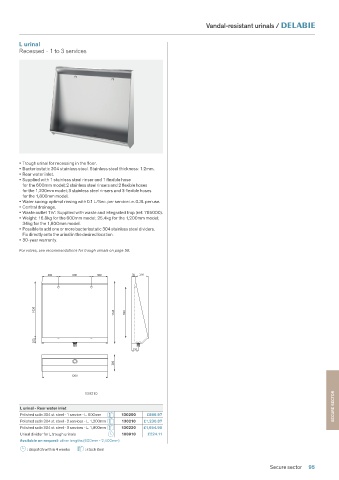

Page 97 - Stainless_Steel_Sanitary_Ware

Vandal-resistant urinals /

L urinal
Recessed - 1 to 3 services

• Trough urinal for recessing in the floor.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
• Rear water inlet.
• Supplied with 1 stainless steel rinser and 1 flexible hose
for the 600mm model; 2 stainless steel rinsers and 2 flexible hoses
for the 1,200mm model; 3 stainless steel rinsers and 3 flexible hoses
for the 1,800mm model.
• Water saving: optimal rinsing with 0.1 L/Sec. per service i.e. 0.3L per use.
• Central drainage.
• Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
• Weight: 16.8kg for the 600mm model; 25.4kg for the 1,200mm model;
34kg for the 1,800mm model.
• Possible to add one or more bacteriostatic 304 stainless steel dividers.
Fix directly onto the urinal in the desired location.
• 30-year warranty.
For valves, see recommendations for trough urinals on page 59.

300 600 300 70 230

1020 1125 920

105
120

300

1200

SECURE SECTOR
130210

L urinal - Rear water inlet
Polished satin 304 st. steel - 1 service - L. 600mm 130200 £886.97
Polished satin 304 st. steel - 2 services - L. 1,200mm 130210 £1,230.87
Polished satin 304 st. steel - 3 services - L. 1,800mm 130220 £1,654.90
Urinal divider for L trough urinals 100910 £224.11
Available on request: other lengths (600mm - 2,400mm)
: dispatch within 4 weeks : stock item

Secure sector 95
