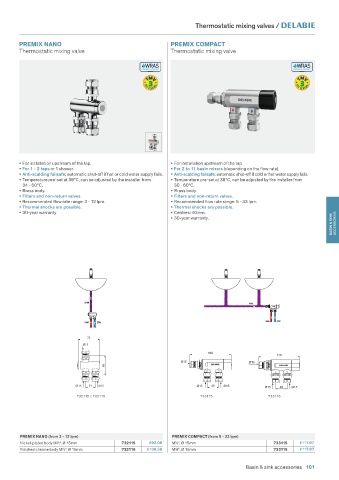

Page 103 - Water_Controls_for_Healthcare

Thermostatic mixing valves /

PREMIX NANO PREMIX COMPACT
Thermostatic mixing valve Thermostatic mixing valve

• For installation upstream of the tap. • For installation upstream of the tap.
• For 1 - 2 taps or 1 shower. • For 2 to 11 basin mixers (depending on the flow rate).
• Anti-scalding failsafe: automatic shut-off if hot or cold water supply fails. • Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
• Temperature pre-set at 38°C, can be adjusted by the installer from • Temperature pre-set at 38°C, can be adjusted by the installer from
34 - 60°C. 30 - 60°C.
• Brass body. • Brass body.
• Filters and non-return valves. • Filters and non-return valves.
• Recommended flow rate range: 3 - 12 lpm. • Recommended flow rate range: 5 - 33 lpm.
• Thermal shocks are possible. • Thermal shocks are possible.
• 30-year warranty. • Centres: 40mm.
BASIN & SINK ACCESSORIES
• 30-year warranty.

MW
MW

HW CW
HW CW
75
Ø15
140
140
Ø15 Ø15
68

Ø 15 34 Ø15 Ø15 40 Ø15 Ø15 40 Ø15
732115 / 732116 733115 733116

PREMIX NANO (from 3 - 12 lpm) PREMIX COMPACT (from 5 - 33 lpm)
Nickel-plated body M½", Ø 15mm 732115 £92.09 M½", Ø 15mm 733115 £117.97
Polished chrome body M½", Ø 15mm 732116 £108.39 M¾", Ø 15mm 733116 £117.97

Basin & sink accessories 101
