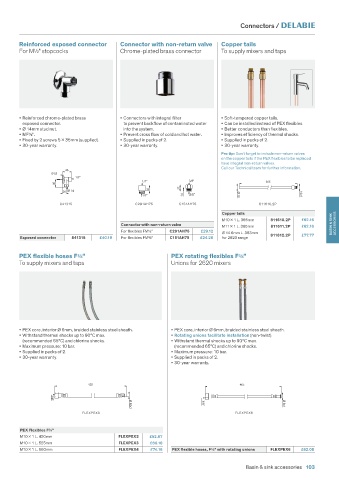

Page 105 - Water_Controls_for_Healthcare

Connectors /

Reinforced exposed connector Connector with non-return valve Copper tails
For M½" stopcocks Chrome-plated brass connector To supply mixers and taps

• Reinforced chrome-plated brass • Connectors with integral filter • Soft-tempered copper tails.
exposed connector. to prevent backflow of contaminated water • Can be installed instead of PEX flexibles.
• Ø 14mm stud nut. into the system. • Better conductors than flexibles.
• MF½". • Prevent cross flow of cold and hot water. • Improves efficiency of thermal shocks.
• Fixed by 2 screws 5 35mm (supplied). • Supplied in packs of 2. • Supplied in packs of 2.
• 30-year warranty. • 30-year warranty. • 30-year warranty.
Pro tip: Don't forget to include non-return valves
on the copper tails if the PEX flexibles to be replaced
have integral non-return valves.
Call our Technical team for further information.
46
Ø 55
1/2"
1/2" 3/8" 365
40
20 Ø 14 30 22
1/2" 14 3/8" Ø 10 10x1
841315 C291AH75 C151AH75 811610.2P
Copper tails
M10 1 L. 365mm 811610.2P £62.16
Connector with non-return valve M11 1 L. 365mm 811611.2P £62.16 BASIN & SINK ACCESSORIES
For flexibles FM½" C291AH75 £29.12 Ø 14.6mm L. 383mm
Exposed connector 841315 £40.19 For flexibles FM⅜" C151AH75 £24.26 for 2620 range 811612.2P £77.77

PEX flexible hoses F⅜" PEX rotating flexibles F⅜"
To supply mixers and taps Unions for 2620 mixers

• PEX core, interior Ø 6mm, braided stainless steel sheath. • PEX core, interior Ø 6mm, braided stainless steel sheath.
• Withstand thermal shocks up to 90°C max. • Rotating unions facilitate installation (non-twist).
(recommended 65°C) and chlorine shocks. • Withstand thermal shocks up to 90°C max.
• Maximum pressure: 10 bar. (recommended 65°C) and chlorine shocks.
• Supplied in packs of 2. • Maximum pressure: 10 bar.
• 30-year warranty. • Supplied in packs of 2.
• 30-year warranty.

420 465

3/8"

FLEXPEX2 Ø 10x1 3/8" FLEXPEX6 Ø 8x1

PEX Flexibles F⅜"
M10 1 L. 420mm FLEXPEX2 £52.67
M10 1 L. 525mm FLEXPEX3 £60.18
M10 1 L. 660mm FLEXPEX4 £74.16 PEX flexible hoses, F⅜" with rotating unions FLEXPEX6 £62.08

Basin & sink accessories 103
