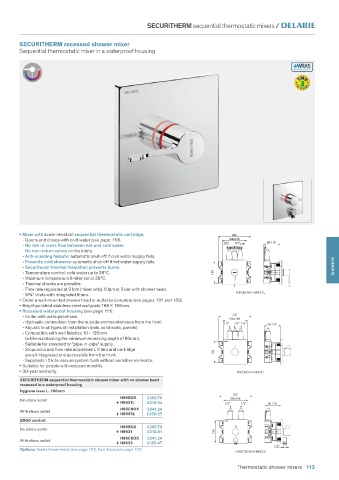

Page 115 - Water_Controls_for_Healthcare

SECURITHERM sequential thermostatic mixers /

SECURITHERM recessed shower mixer
Sequential thermostatic mixer in a waterproof housing

• Mixer with scale-resistant sequential thermostatic cartridge: 225
- Opens and closes with cold water (see page 110). 166x166 80-110
- No risk of cross flow between hot and cold water. 1/2" 1/2" 1/2"
No non-return valves on the inlets.
- Anti-scalding failsafe: automatic shut-off if cold water supply fails.
- Prevents cold showers: automatic shut-off if hot water supply fails.
- Securitouch thermal insulation prevents burns. SHOWERS
- Temperature control: cold water up to 39°C. 150
- Maximum temperature limiter set at 39°C.
- Thermal shocks are possible.
- Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
- M¾" inlets with integrated filters. H96BOX+H9631L
• Order a wall-mounted shower head or outlet to complete (see pages 131 and 139).
• Bright polished stainless steel wall plate 166 166mm.
• Recessed waterproof housing (see page 111):
225
- Collar with waterproof seal. 166x166
- Hydraulic connection from the outside and maintenance from the front. 1/2" 1/2" 1/2" 80-110
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 80mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters and cartridge 150
are all integrated and accessible from the front.
- Supplied in 2 kits: secure system flush without sensitive elements.
• Suitable for people with reduced mobility.
• 30-year warranty. H96BOX+H9631
SECURITHERM sequential thermostatic shower mixer with no shower head
recessed in a waterproof housing
Hygiene lever L. 100mm
225
H96BOX £305.70
No elbow outlet 166x166
+ H9631L £316.94 1/2" 1/2" 80-110
H96CBOX £341.24
With elbow outlet
+ H9633L £358.27
ERGO control
H96BOX £305.70
No elbow outlet
+ H9631 £312.81 150
H96CBOX £341.24
With elbow outlet
+ H9633 £355.47
1/2"
Options: fixed shower heads (see page 131), floor traps (see page 141)
H96CBOX+H9633
Thermostatic shower mixers 113
