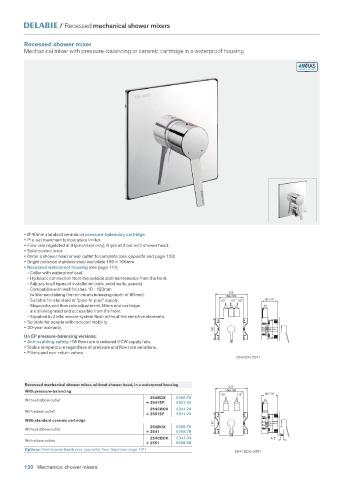

Page 132 - Water_Controls_for_Healthcare

/ Recessed mechanical shower mixers

Recessed shower mixer
Mechanical mixer with pressure-balancing or ceramic cartridge in a waterproof housing

• Ø 40mm standard ceramic or pressure-balancing cartridge.
• Pre-set maximum temperature limiter.
• Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
• Solid control lever.
• Order a shower head or wall outlet to complete (see opposite and page 139).
• Bright polished stainless steel wall plate 166 166mm.
• Recessed waterproof housing (see page 111):
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
225
(while maintaining the minimum recessing depth of 80mm). 166x166
- Suitable for standard or "pipe-in-pipe" supply. 1/2" 1/2" 1/2" 80-110
- Stopcocks and flow rate adjustment, filters and cartridge
are all integrated and accessible from the front.
- Supplied in 2 kits: secure system flush without the sensitive elements.
• Suitable for people with reduced mobility.
• 30-year warranty.
150
On EP pressure-balancing versions:
• Anti-scalding safety: HW flow rate is reduced if CW supply fails.
• Stable temperature regardless of pressure and flow rate variations.
• Filters and non-return valves.
254BOX+2541

Recessed mechanical shower mixer, without shower head, in a waterproof housing
225
With pressure-balancing 166x166
1/2" 1/2" 80-110
254BOX £305.70
Without elbow outlet
+ 2541EP £301.42
254CBOX £341.24
With elbow outlet
+ 2551EP £341.24
With standard ceramic cartridge 150
254BOX £305.70
Without elbow outlet
+ 2541 £258.78
254CBOX £341.24 1/2"
With elbow outlet
+ 2551 £298.58
Options: fixed shower heads (see opposite), floor traps (see page 141)
254CBOX+2551
130 Mechanical shower mixers
