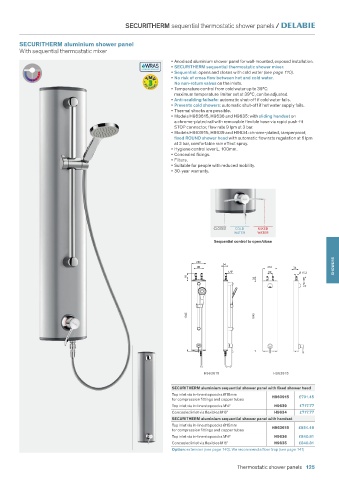

SECURITHERM sequential thermostatic shower panels /

SECURITHERM aluminium shower panel
With sequential thermostatic mixer

• Anodised aluminium shower panel for wall-mounted, exposed installation.
• SECURITHERM sequential thermostatic shower mixer.
• Sequential: opens and closes with cold water (see page 110).
• No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
• Temperature control from cold water up to 39°C:
maximum temperature limiter set at 39°C, can be adjusted.
• Anti-scalding failsafe: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• Models H963615, H9636 and H9635: with sliding handset on
a chrome-plated rail with removable flexible hose via rapid push-fit
STOP connector, flow rate 9 lpm at 3 bar.
• Models H963915, H9639 and H9634: chrome-plated, tamperproof,
fixed ROUND shower head with automatic flow rate regulation at 6 lpm
at 3 bar, comfortable rain effect spray.
• Hygiene control lever L. 100mm.
• Concealed fixings.
• Filters.
• Suitable for people with reduced mobility.
• 30-year warranty.

CLOSED COLD MIXED
WATER WATER
Sequential control to open/close

210210
3434
8080 210 34 SHOWERS
1/2"1/2" 80 Ø 15,2
91 91
55
170-190

1045 1045

H963615 H963915

SECURITHERM aluminium sequential shower panel with fixed shower head
Top inlet via in-line stopcocks Ø15mm H963915 £731.45
for compression fittings and copper tubes
Top inlet via in-line stopcocks M½" H9639 £717.77
Concealed inlet via flexibles M½" H9634 £717.77
SECURITHERM aluminium sequential shower panel with handset
Top inlet via in-line stopcocks Ø15mm H963615 £854.49
for compression fittings and copper tubes
Top inlet via in-line stopcocks M½" H9636 £840.81
Concealed inlet via flexibles M½" H9635 £840.81
Option: extension (see page 140). We recommend a floor trap (see page 141)

Thermostatic shower panels 125
