/ SECURITHERM electronic thermostatic shower panels

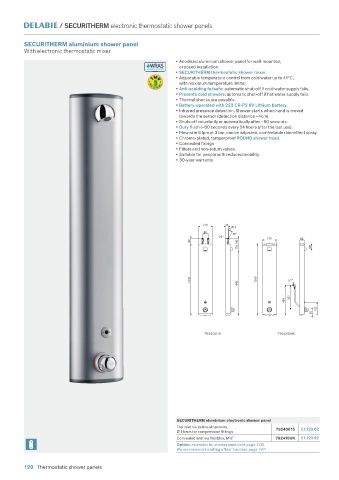

SECURITHERM aluminium shower panel
With electronic thermostatic mixer

• Anodised aluminium shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 41°C,
with maximum temperature limiter.
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• Battery-operated with 223 CR-P2 6V Lithium battery.
• Infrared presence detection. Shower starts when hand is moved
towards the sensor (detection distance ~4cm).
• Shuts off voluntarily or automatically after ~60 seconds.
• Duty flush (~60 seconds every 24 hours after the last use).
• Flow rate 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Chrome-plated, tamperproof ROUND shower head.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.

210 34
Ø15
80
30°
1/2" 210 65
80
170-190 100

1050 1050 1/2"
945

357
439
192
82

79240015 792410UK

SECURITHERM aluminium electronic shower panel
Top inlet via in-line stopcocks, 79240015 £1,123.62
Ø 15mm for compression fittings
Concealed inlet via flexibles, M½" 792410UK £1,123.62
Option: extension for shower panel (see page 140).
We recommend installing a floor trap (see page 141)
