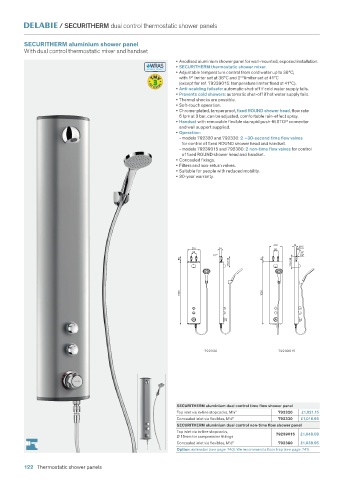

/ SECURITHERM dual control thermostatic shower panels

SECURITHERM aluminium shower panel
With dual control thermostatic mixer and handset

• Anodised aluminium shower panel for wall-mounted, exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C;
nd
with 1 limiter set at 38°C and 2 limiter set at 41°C
st
(except for ref. 79239015: temperature limiter fixed at 41°C).
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• Soft-touch operation.
• Chrome-plated, tamperproof, fixed ROUND shower head, flow rate
6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Handset with removable flexible via rapid push-fit STOP connector
and wall support supplied.
• Operation:
- models 792320 and 792330: 2 ~30-second time flow valves
for control of fixed ROUND shower head and handset.
- models 79239015 and 792380: 2 non-time flow valves for control
of fixed ROUND shower head and handset.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.

210 34
Ø15
210 34
80
80 30°
1/2" 1/2"
170-190 170-190
80 80

1050 1050

792320 79239015

SECURITHERM aluminium dual control time flow shower panel
Top inlet via in-line stopcocks, M½" 792320 £1,021.15
Concealed inlet via flexibles, M½" 792330 £1,016.65
SECURITHERM aluminium dual control non-time flow shower panel
Top inlet via in-line stopcocks, 79239015 £1,048.08
Ø 15mm for compression fittings
Concealed inlet via flexibles, M½" 792380 £1,038.95
Option: extension (see page 140). We recommend a floor trap (see page 141)
