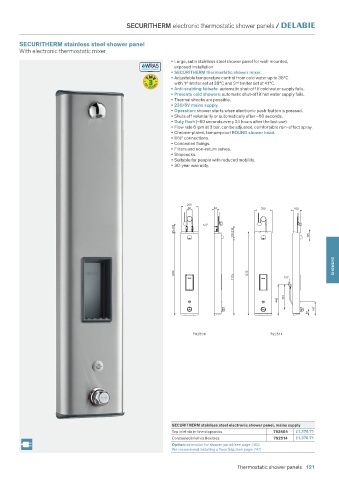

SECURITHERM electronic thermostatic shower panels /

SECURITHERM stainless steel shower panel
With electronic thermostatic mixer

• Large, satin stainless steel shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C
with 1 limiter set at 38°C and 2 limiter set at 41°C.
st
nd
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• 230/6V mains supply.
• Operation: shower starts when electronic push-button is pressed.
• Shuts off voluntarily or automatically after ~60 seconds.
• Duty flush (~60 seconds every 24 hours after the last use).
• Flow rate 6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Chrome-plated, tamperproof ROUND shower head.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Stopcocks.
• Suitable for people with reduced mobility.
• 30-year warranty.

250
80 40 250 100

65-105 1/2" 170-210 105

SHOWERS

1220 1220
1115 1/2"

361
448
197
87

792504 792514

SECURITHERM stainless steel electronic shower panel, mains supply
Top inlet via in-line stopcocks 792504 £1,378.71
Concealed inlet via flexibles 792514 £1,378.71
Option: extension for shower panel (see page 140).
We recommend installing a floor trap (see page 141)
